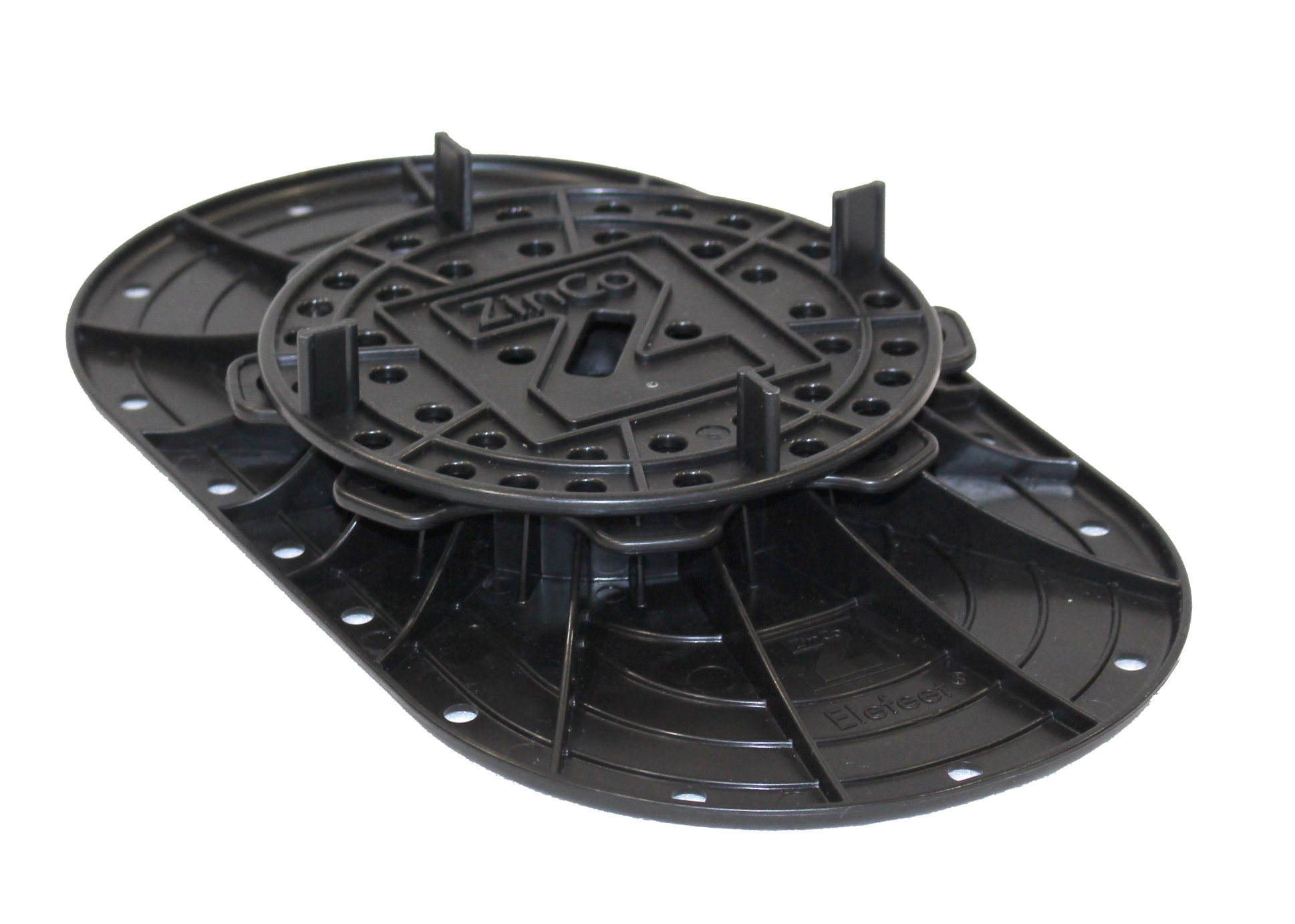

Zinco Pedestals Elefeet E27, Pedestals for paving, height adjustable 27 - 39 mm
Height adjustable pedestal supports with stable support plate and adaptable base plate, for raising concrete slabs on roof surfaces.
made of sturdy polypropylene, oval base plate approximately / approx. 250 x 140 mm, pack of 78 pieces, pressure 600 kg, for use under stable edged coverings on all sides in accordance with load class Z to DIN EN 1991-1-1 (balconies, roof terraces, loggias).
| Order Nr.: | 9660 |
|---|---|
| Colour: | black |
| Material: | Polypropylene |
| Height [mm]: | 27,0 |
| Packaging unit: | Carton with 78 pieces |
| Weight [g]: | 168,0 |
| Additional info: | Oval base plate approx. 250 x 140 mm; load bearing capacity up to 600 kg per support plate or 300 kg per 90° segment; adjustment range: approx. 27-39 mm |
Made of sturdy polypropylene, oval base plate approximately / approx. 250 x 140 mm, vertically adjustable, as a sub-base for concrete slabs, with integrated joint spacers 3 mm thick, possible slope compensation up to 2°, load bearing capacity up to 600 kg/support plate, supply and install professionally.
Suitable for coverings in accordance with load class Z as per DIN EN 1991-1-1 (balconies, roof terraces, loggias). Tested impact sound reduction in accordance with DIN EN ISO 10140
up to 37 dB.
Pedestal bearing height: approximately / approx. 27 to 39 mm
Product: Zinco "Elefeet® E 27"
Unit: pcs
Order Nr.: 9660
