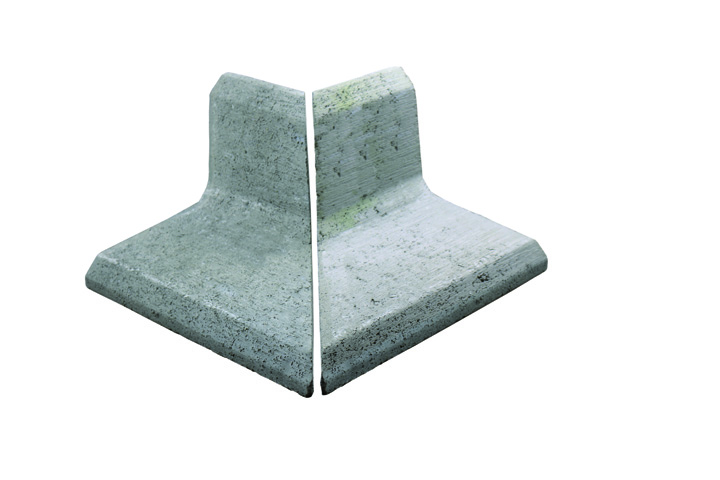

Zinco Concrete Kerb External Corner, height approx. 25 cm, 90°-Corner
Order Nr.:
5029
Product information "Zinco Concrete Kerb External Corner, height approx. 25 cm, 90°-Corner"
Support leg 30 cm, leg length 23 x 23 cm, outside corner is 2-piece, weight 32 kg/corner, (efflorescence and permissible dimensional tolerances are possible)
| Order Nr.: | 5029 |
|---|---|
| Material: | Normal concrete |
| Height [mm]: | 250,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 33,0 |
| Leg length [mm]: | 230 x 230 |
| Additional information: | Support leg: approx. 300 mm |
from position '.........' . Formation of a 90° outside corner from two
prefabricated 45° shaped kerbs, height 25 cm, with a side length of 48 cm each.
Product: Zinco "Concrete Concrete Kerb External Corner 90° - height 25 cm"
Unit: pcs
Order Nr.: 5029
These Installation Instructions describe the essential steps for using these products. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
The concrete angle blocks are set directly into concrete or mortar on the drainage element.
The concrete shaped kerbs are usable on both sides, so it is up to you to decide how to set them up.
The inside and outside corners, each consisting of two 45° angles, are not usable on both sides, but must be ordered for the corresponding height; they are also set directly into concrete or mortar on the drainage element.
The stainless steel cover is suitable for both types of installation and is simply pushed onto the concrete angle blocks from above. The stainless steel cover can be cut to size using a standard angle grinder with a metal disk. When cutting, beware of flying sparks (fire hazard, risk of injury, etc.). It is also important that the sharp edges are deburred after cutting.
The concrete angle blocks are set directly into concrete or mortar on the drainage element.
The concrete shaped kerbs are usable on both sides, so it is up to you to decide how to set them up.
The inside and outside corners, each consisting of two 45° angles, are not usable on both sides, but must be ordered for the corresponding height; they are also set directly into concrete or mortar on the drainage element.
The stainless steel cover is suitable for both types of installation and is simply pushed onto the concrete angle blocks from above. The stainless steel cover can be cut to size using a standard angle grinder with a metal disk. When cutting, beware of flying sparks (fire hazard, risk of injury, etc.). It is also important that the sharp edges are deburred after cutting.
