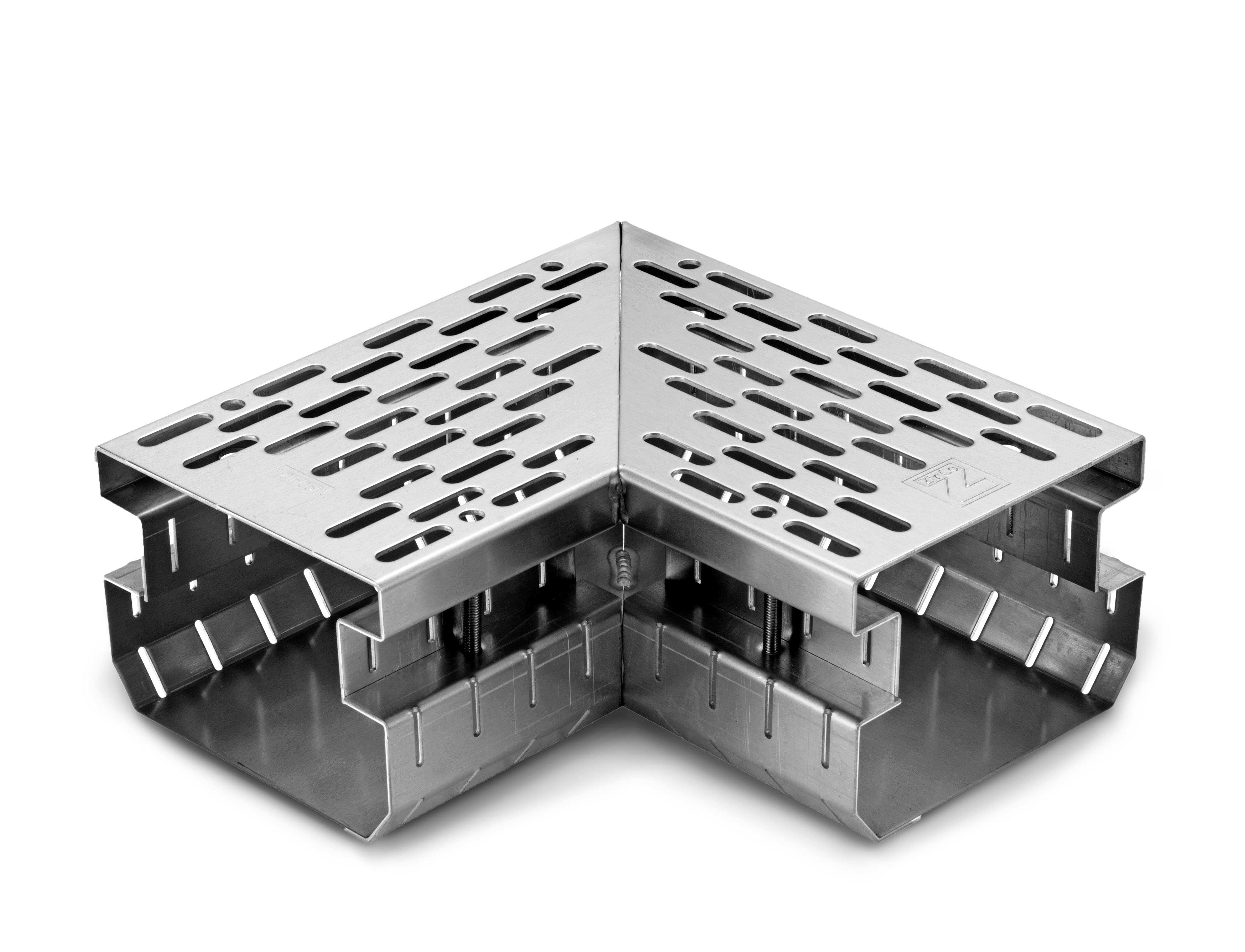

Zinco Corner 90° for FTR 75/100-A H: 75-100 mm, W: approx. 145 mm, 90°-Corner
Corner piece for FTR 75/100-A.
Order Nr.:
4759
Product information "Zinco Corner 90° for FTR 75/100-A H: 75-100 mm, W: approx. 145 mm, 90°-Corner"
Leg length approx. 25 x 25 cm, made of aluminium, channel body with lateral slots approx. 30 x 8 mm. Channel body slotted at the side, slot width approx. 3 mm; with integrated butt joint connector.
| Order Nr.: | 4759 |
|---|---|
| Colour: | silver |
| Material: | Aluminium |
| Width [mm]: | 145,0 |
| Height [mm]: | 75,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 1,2 |
| Leg length [mm]: | 250 x 250 |
| Additional information: | Slotted slot: approx. 30 x 8 mm; slot width: approx. 3 mm; adjustment range: from approx. 75-100 mm; channel body slotted at the side |
from position '.........' Height adjustable from 75-100 mm,
Outside leg length approx. 25 x 25 cm, supply and install professionally.
Make: Zinco "FTR 75/100 corner"
Unit: pcs
Order Nr.: 4759
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
The gutters / trench drains always have a slotted channel body through which the accumulating water is directed to the outlets via appropriately dimensioned drainage layers.
Installation:
Facade and Terrace Channel FTR are suitable for direct installation in loose materials. As these are aluminum channels, installation in mortar is not possible.
Several gutter / trench drains are connected using connectors. When folded up, these form the end of the gutter / trench drain. One connector is supplied with each gutter / trench drain.
If corner pieces are required, these are laid in the same way as the gutter / trench drains described above. The prefabricated 90° corners are supplied with one connector each, just like the gutter / trench drains.
The height is adjusted from above by unscrewing the screws.
Cutting:
The front wall / facade and terrace gutters can be cut to size using a standard angle grinder with a metal disk. The gutter / trench drain must be shortened on the perforated half so that the screws used as supports can be offset. With aluminium grating, the reinforcement bar closest to the cut may need to be moved.
In the case of galvanized metal grate / grid, the sharp edges must be deburred after cutting and the interfaces protected against corrosion, e.g. with cold galvanizing spray.
The gutters / trench drains always have a slotted channel body through which the accumulating water is directed to the outlets via appropriately dimensioned drainage layers.
Installation:
Facade and Terrace Channel FTR are suitable for direct installation in loose materials. As these are aluminum channels, installation in mortar is not possible.
Several gutter / trench drains are connected using connectors. When folded up, these form the end of the gutter / trench drain. One connector is supplied with each gutter / trench drain.
If corner pieces are required, these are laid in the same way as the gutter / trench drains described above. The prefabricated 90° corners are supplied with one connector each, just like the gutter / trench drains.
The height is adjusted from above by unscrewing the screws.
Cutting:
The front wall / facade and terrace gutters can be cut to size using a standard angle grinder with a metal disk. The gutter / trench drain must be shortened on the perforated half so that the screws used as supports can be offset. With aluminium grating, the reinforcement bar closest to the cut may need to be moved.
In the case of galvanized metal grate / grid, the sharp edges must be deburred after cutting and the interfaces protected against corrosion, e.g. with cold galvanizing spray.
This product is accessories from
Corner piece for FTR 75/100-A.

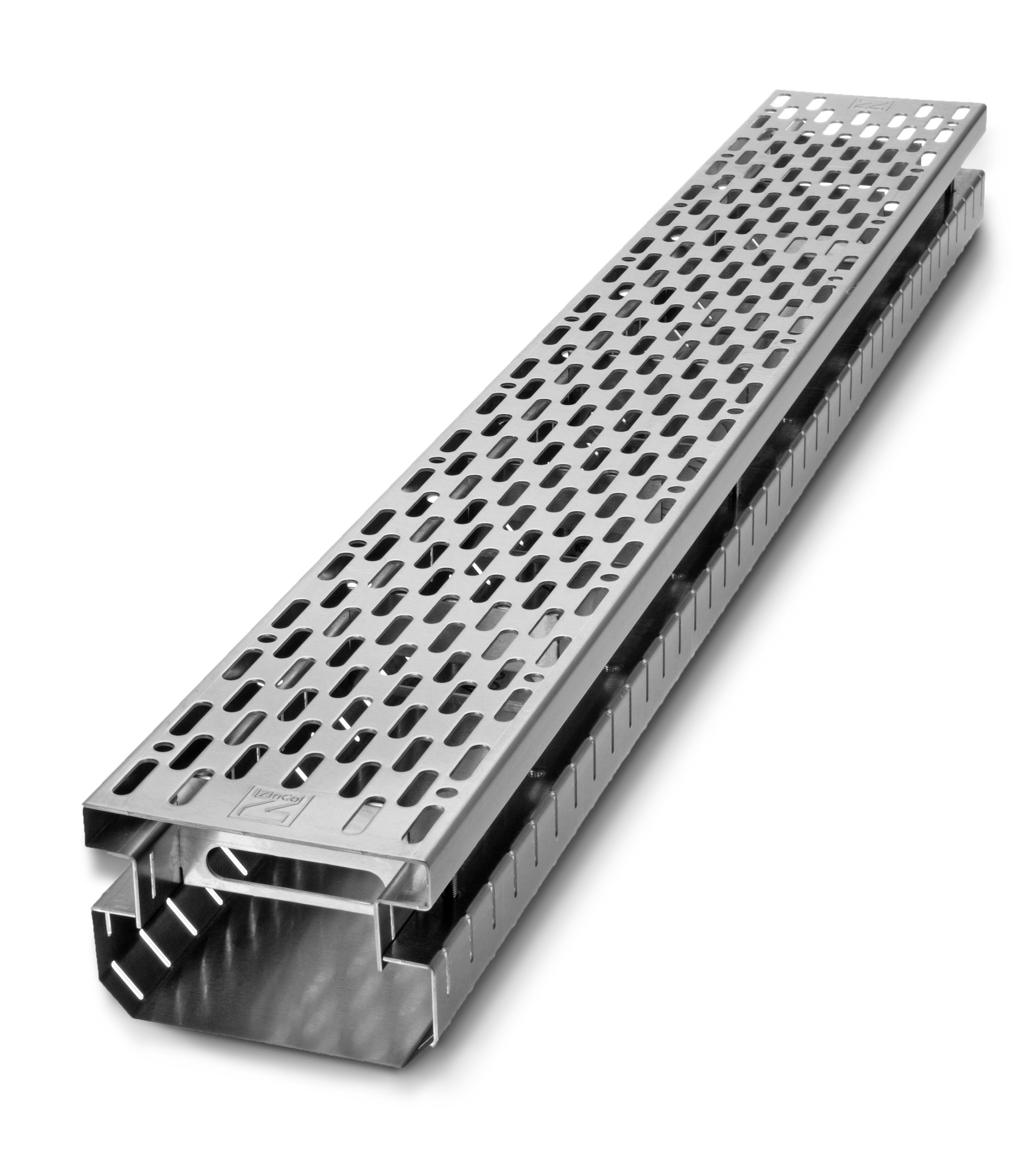

Zinco Facade-Terrace Channel FTR 75/100-A H: 75-100 mm, W: approx. 145 mm, L: approx. 1 m
