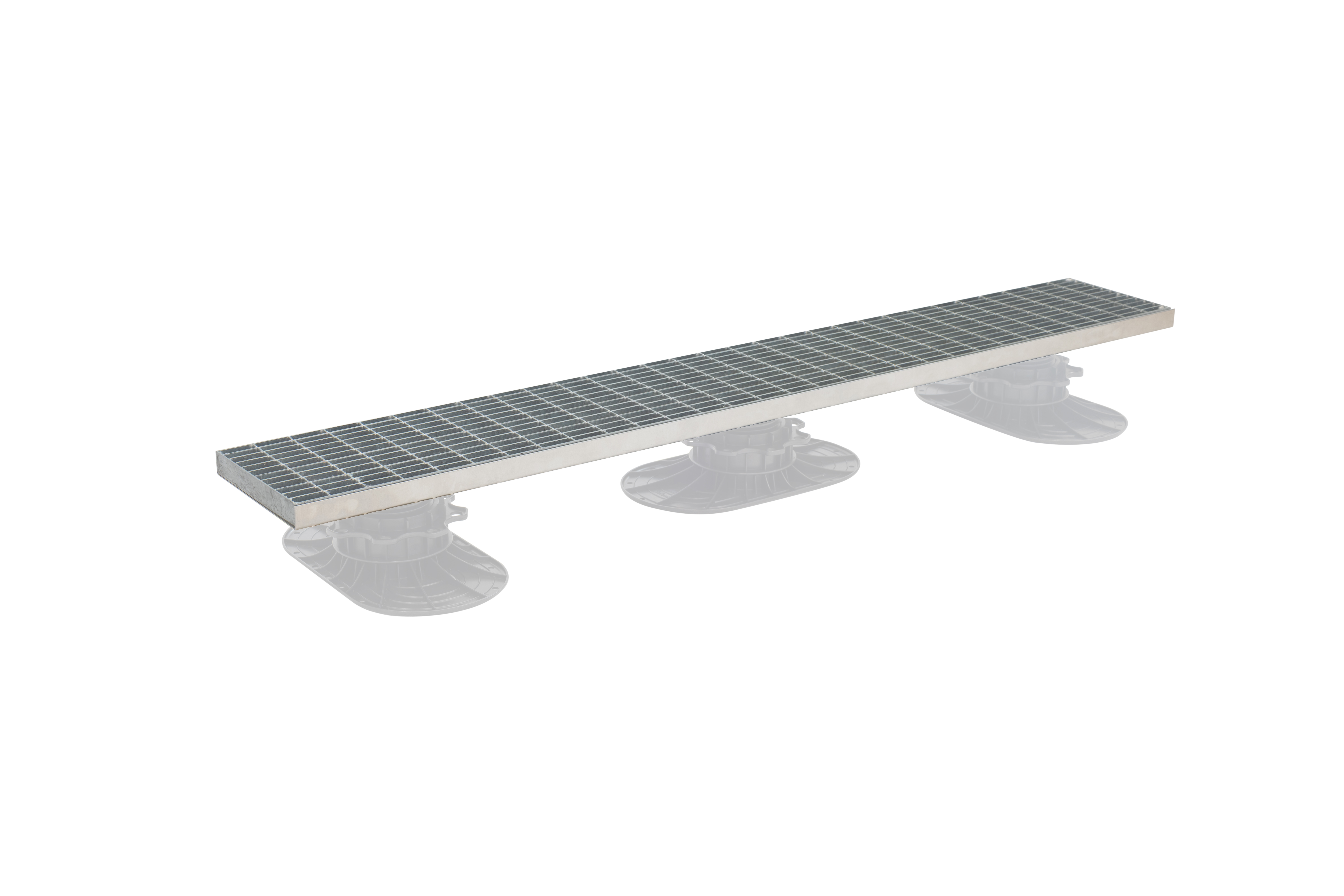

Zinco Drainage Channel FRA 20/150-1 H: 20 mm, W: 150 mm, L: 1 m
Drainage channels slotted at the bottom and sides for installation in front of thresholds or along front walls / facades, specially designed for use on the ZinCo Pedestals Elefeet in combination with fine stone coverings height 20 mm.
Channel body made of folded aluminium, with drainage slots. With hot-dip galvanized metal grate / grid, mesh width / mesh size approx. 33 x 11 mm; weight 4 kg/each. Especially for use on Zinco Pedestals for Elefeet and in combination with fine stone coverings, height 20 mm.
| Order Nr.: | 4700 |
|---|---|
| Colour: | silver |
| Length [m]: | 1 |
| Machine width [mm]: | 33 x 11 |
| Material: | Aluminium, Galvanized steel grate / grid |
| Width [mm]: | 150 |
| Height [mm]: | 20 |
| Packaging unit: | Piece |
| Weight [kg]: | 4 |
Aluminum gutter body, folded, slotted at the bottom and sides, specially designed for use on Zinco Pedestals Elefeet; cover made of hot-dip galvanized aluminium grating, mesh width / mesh size approx. 33 x 11 mm, width approx. 15 cm, height approx. 20 mm, length approx. 1.00 m; to be delivered and professionally installed on a stable sub-base.
Brand: Zinco Drainage Channel “FRA 20/150-1”
Unit: pcs
Order Nr.: 4700
The front wall / facade channels are installed at the correct height on the laying layer or chippings bedding in accordance with the slope of the covering. Pedestals Elefeet® can be used as an alternative support for all front wall / facade channels. The channel bodies must be placed close together and connected with the connectors by inserting and bending the strips at the slots. If necessary, channel bodies and metal grates / grids must be cut to length and deburred using a grinder. The interfaces of the galvanized steel metal grate / grid must be re-galvanized with suitable products. Corner situations are formed using Corner 90° pieces. The metal grates / grids are fitted and the end pieces are inserted into the groove of the gutter / trench drain using the plastic plugs.
1.1 Concrete or natural stone slabs, d ≥ 40 mm
1.2 Chippings bedding, low-lime, 30-50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion at the bottom)
1.4 Protection Mat / Moisture Retention SSM 45
1.5 Suitable Roof construction with root resistant waterproofing
2.1 Clamping and Protection Profile AP 150
2.2 Drainage Channel FRA 75/150
This product is also available in other dimensions / measurements / specifications
