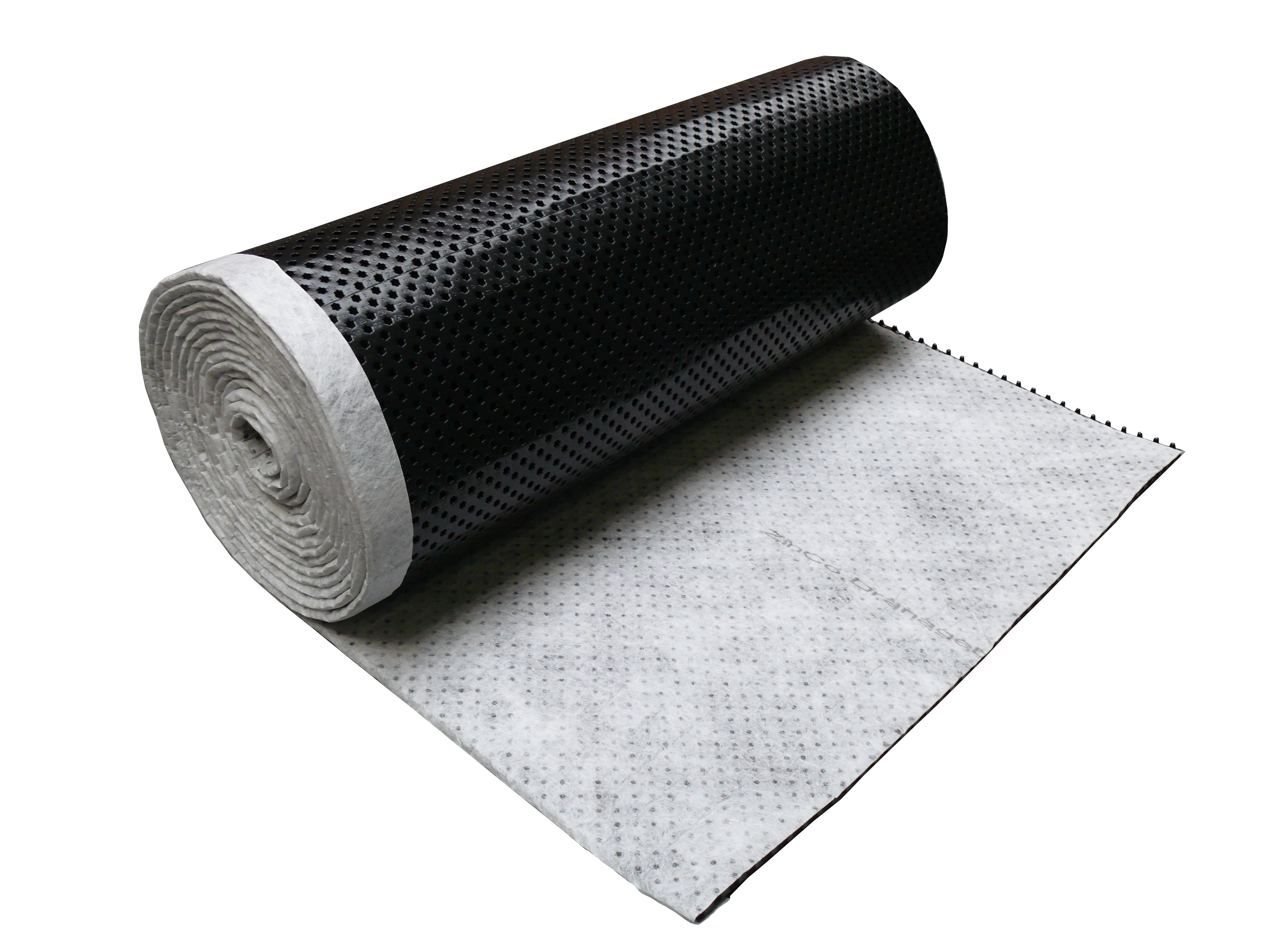

Zinco Drainage Mat DBV 10, roll approx. 1.04 x 12 m, height approx. 10 mm
Rationally laid, fleece-laminated studded structure made of polypropylene/polyethylene, can be used as base wall protection or on sloping roofs as a drainage layer under greenery or paving slabs laid in stone chippings.
Recycled polyolefine (PP/PE) studded structure, with attached filter sheet made of polypropylene, compressive strength approx. 500 kN/sqm, Weight approx. 850 g/sqm.
| Order Nr.: | 3011 |
|---|---|
| Colour: | Membrane: gray, Studded structure: black |
| Length [m]: | 12,0 |
| Material: | Membrane: polypropylene, Studded structure: RC polyolefin |
| Width [m]: | 1,04 |
| Height [mm]: | 10,0 |
| Packaging unit: | Role |
| Weight [kg/m²]: | 0,85 |
| Stud height [mm]: | approx. 10 |
| Number of studs [m²]: | approx. 3,200 |
| CBR test / penetration force [N]: | 1300 |
| Tensile strength [kN/m]: | 14 |
| Opening width (O90) according to EN ISO 12956 [µm]: | 85 |
| Pressure [kN/m²]: | 500 |
| Water discharge for vertical installation [l/(s-m)]: | 3,5 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 0,4 |
| Flow rate (at 100 mm water column) [l/(m²-s)]: | 70 |
| Compatible with bitumen: | yes |
| Additional information: | one-sided fleece overlap approx. 10 mm |
Studded structure made of recycled polyolefine (PP/PE), with attached filter sheet according to EN ISO 12958, opening width O90,W = 85 µm, total height approx. 10 mm, compressive strength approx. 500 kN/m², Weight approx. 850 g/m², water drainage capacity tested according to DIN EN ISO 12958: with 2 % gradient - approx. 0.4 l/s*m, for vertical installation - approx. 3.5 l/s*m, deliver and install professionally with one row of studs overlapping.
Product: Zinco Drainage Mat "DBV 10".
Unit: m²
Order Nr.: 3011
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Installation should not be carried out if there is a risk of storms.
IMPORTANT: Rolls that have been standing in the sun can heat up differently, which can cause the freshly rolled out sheets to lie slightly curved. For this reason, leave the sheets for a short time before joining them together.
Laying:
Lay over the entire surface with approx. 1 cm overlapping so that the connecting studs on the long sides can be pressed into each other. Always ensure that the fleece-laminated side is on top. The one-sided fleece overlap covers the membrane joint.
Vertical installation as wall protection is also possible.
To protect against UV radiation and blowing away, the Drainage Mat DBV 10 must be covered immediately after installation.
Cutting:
The Drainage Mat can be cut with a cutter knife (with a hard blade) or a hot wire. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported immediately.
Drainage Mat must be cut out over roof outlets according to the size of the outlet.
