Zinco Eaves Profile TRP 80, height 80 mm, length 3 m

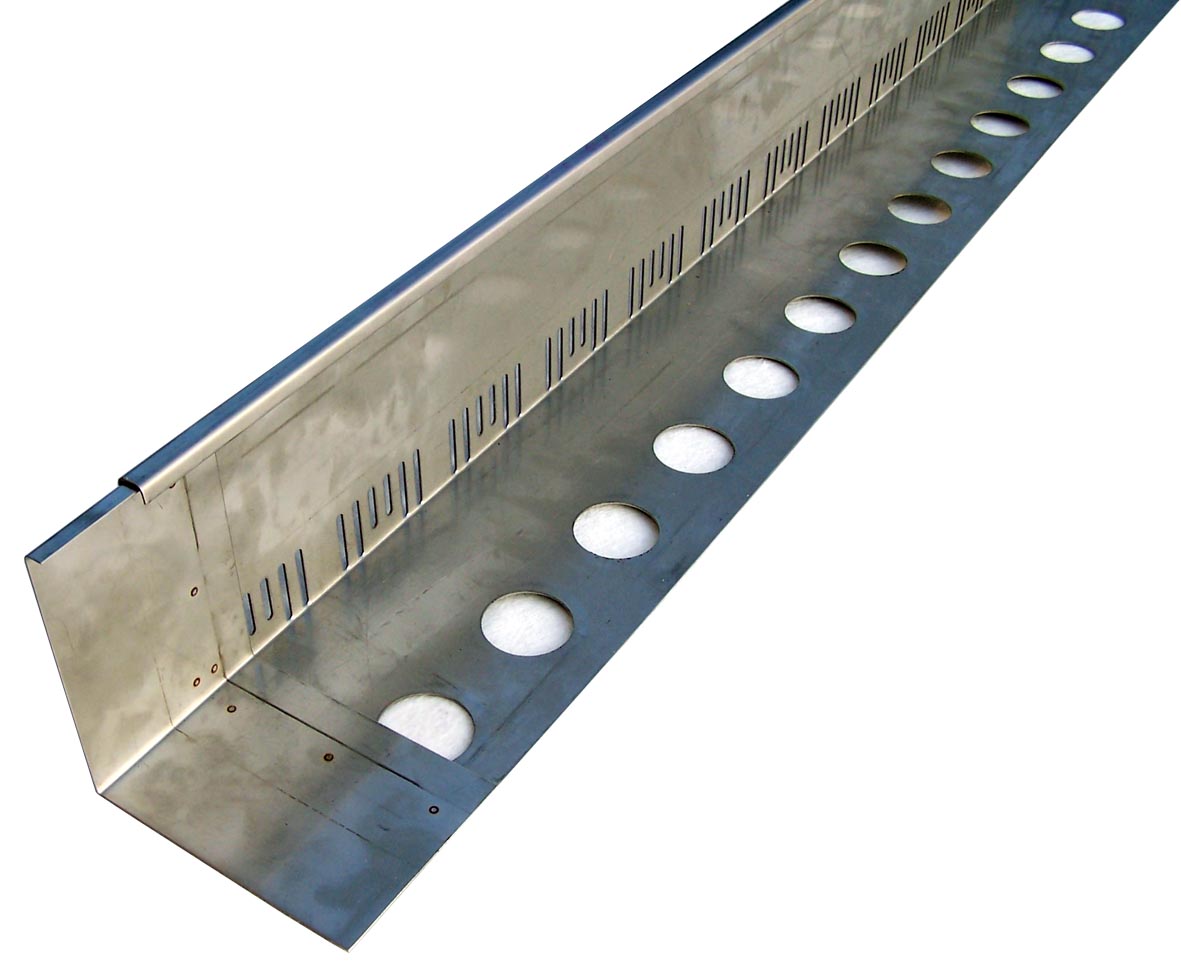

Sturdy angle profile made of Stainless steel with drainage slots and perforations in the Support leg for fixing to the waterproofing of the roof.
made of Stainless steel, extra strong angle profile for edging patio areas or walkways, as a gravel stop or fold-up / upstand at the eaves or edge of roof / perimeter, perforation in the support leg and drainage slots for water permeability, with integrated butt joint connector (total length approx. 3.05 m)
| Order Nr.: | 7780 |
|---|---|
| Length [m]: | 3,0 |
| Material: | Stainless steel V2A |
| Thickness [mm]: | 1,5 |
| Packaging unit: | Piece |
| Weight [kg]: | 2.47 kg/m |
| Additional info: | Profile height approximately / approx. 80 mm, width of Support leg approximately / approx. 140 mm |
made of 1.5 mm Stainless steel, height 80 mm, with drainage slots, cross-section of the drainage openings approx. 85 cm²/m, Support leg approx. 14 cm wide, perforated for fixing to the waterproofing of the roof, with butt joint connectors welded on, deliver, lay flush according to plan and fix permanently to the waterproofing of the roof according to manufacturer's instructions, including all specialist ancillary work and materials.
Product: Zinco Eaves Profile "TRP 80"
Unit: m
Order Nr.: 7780
Installation of pitched / Steep Pitched Green Roof:
On pitched / Steep Pitched Green Roofs, the Eaves Profile TRP 140 is installed as an eaves termination or at the edge of roof / perimeter in conjunction with Eaves Support brackets. The TRP 80 is generally used as a shear sill in the Area of pitched roofs, placed on the waterproofing / sealing or protective mat and supported on the previously installed Support brackets or Shear-Fix Connectors. The TRP 80 / TRP 140 must be weighted down with System Substrate / Substrate Soil / Growing Medium.
Installation on flat roofs:
On flat roofs, the Eaves Profiles can be used to define / outline / restrict patio areas and walkways. They should be fixed in place with concrete or mortar to prevent them from migrating. As the border / boundary of an entire greening structure, they can be placed loosely on the roof seal or protective mat and weighted down with System Substrate / Substrate Soil / Growing Medium or gravel / grit. The TRP profiles must be connected at the joints with the butt joint connectors welded on. Corner situations are constructed using inside or outside corners with Corner joints.
Cutting:
The Eaves Profiles are made of Stainless steel and are cut to size using a cut-off grinder. Sharp edges must be deburred after cutting
This product is also available in other dimensions / measurements / specifications
