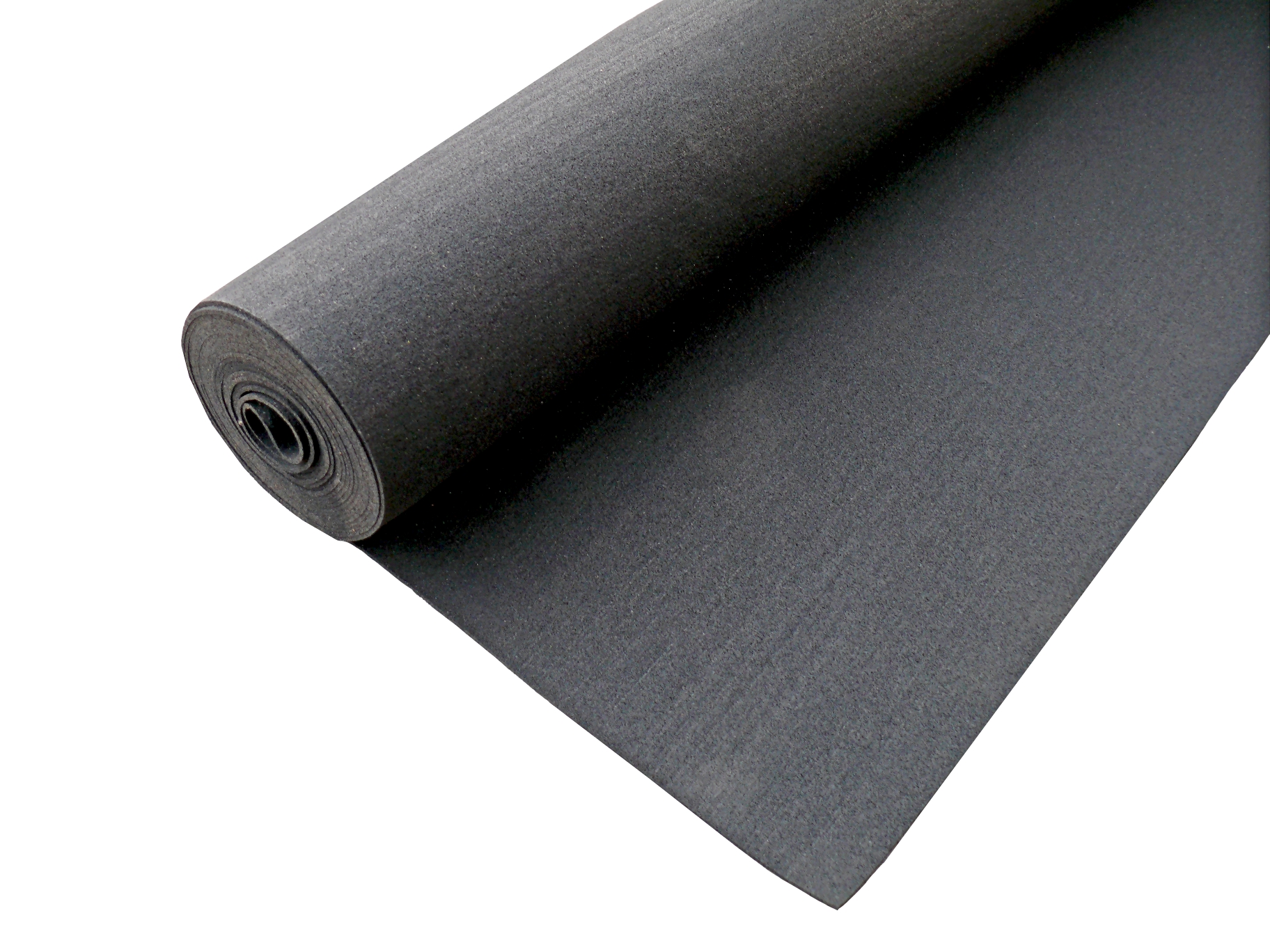

Zinco Elastosave ES 30 roll 1.5 x 8 m, Thickness 3 mm
Thin but very stable protective and anti-slip mat made of recycled rubber, especially for use under raised decking.
Made of recycled rubber, building protection mat for installation under Elefeet, bitumen resistant, not compatible with PVC-P, subsonic noise reduction / insulating subsonic noise, Weight approximately / approx. 2.6 kg/m².
| Order Nr.: | 2094 |
|---|---|
| Colour: | black |
| Length [m]: | 8,0 |
| Material: | Recycled rubber granulate |
| Width [m]: | 1,5 |
| Thickness [mm]: | 3,0 |
| Packaging unit: | Role |
| Weight [kg/m²]: | 2,6 |
| Tensile expansion / elongation at rupture or at break [%]: | 125,0 |
| Sliding coefficient: | 0,99 |
| Fire protection class: | E |
| Temperature resistance [°C]: | -30 to + 80 |
| Compatible with bitumen: | Yes |
| Non-rotting: | Yes |
| UV-stabilized / protected against UV light: | no |
| Additional info: | Not compatible with PVC-P, impact sound improvement approximately / approx. 21 db, average thermal property 0.0480m²K/W, average theoretical thermal conductivity 0.1046 W/mK |
made of recycled rubber granulate, compatible with bitumen and rot-proof, Thickness approx. 3 mm, Weight approx. 2.6 kg/m², Average thermal property (according to ISO 8302): 0.0480 m²K/W, Average theoretical thermal conductivity (according to ISO 8302): 0.1046 W/mK, Fire class/classification (≥ 4 mm) (according to DIN EN 13501-1, DIN EN ISO 11925-2): E, impact sound improvement factor ∆Lw (≥ 6 mm) (according to ISO 140-8): approx. 21 dB, temperature resistance between -30 °C and +80 °C, tensile expansion / elongation at break approx. 125 %, coefficient of friction (dry) approx. 0.99, deliver and install with 5 cm butt overlap. An additional separation layer is required for plastic waterproofing that is not compatible with bitumen.
Product: Zinco Elastosave "ES 30"
Unit: m²
Order Nr.: 2094
Installation should not be carried out if there is a risk of storms.
Installation:
In the case of bituminous membranes, the Area must be swept clean and the ES 30 laid directly with an overlapping of approximately / approx. 5 cm. In the case of plastic waterproofing, check whether it is compatible with rubber (this is usually the case for membranes compatible with bitumen). If not, an additional separation layer (ZinCo TGF 20) is required.
On rising edges of roofs / perimeters and structural elements, it is laid at least up to the upper edge of the covering.
To protect against blowing away, the Elastosave should be weighted down accordingly if further construction is not carried out at the same time. A cover is necessary for long-term protection against UV radiation.
Cutting:
The protective mat can be cut with a cutter knife (with a hard blade) or sturdy universal scissors. When cutting, make sure that the waterproofing of the roof is not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The protective mat must be cut out in a circle over roof outlets, approximately / approx. 1 cm larger than the roof outlet all round (cross cutting is not sufficient!).
