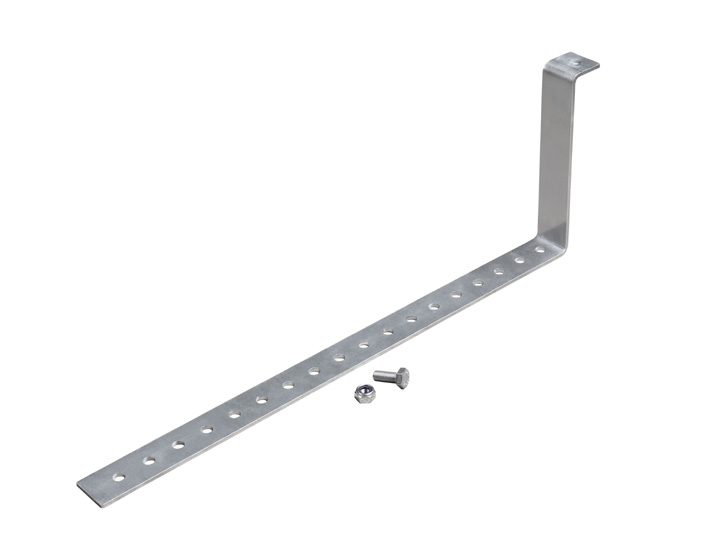

Zinco Fallnet-Rail rail support SB/GB length 60 cm, pack of 5 pieces
Superimposed / extra load anchor device with horizontally mobile anchor point for short-term work with personal protective equipment on flat roofs.
Material: Stainless steel, system component for Fallnet-Rail, pre-drilled for fixing to the Solar Base SB 200 or the Guardrail Base GB-Rail, as fixing bracket for the Fixing rail, including fastening devices.
| Order Nr.: | 907505 |
|---|---|
| Material: | Stainless steel |
| Length [mm]: | 600 |
| Packaging unit: | Pack of 5 pieces |
in accordance with DIN EN 795:2012, types D + E, as a roof-penetration-free anchor device for safety equipment for fall protection during care and maintenance work, as a rail running parallel to the edge of the roof / perimeter made of a high-strength aluminium alloy and free-running and 360° rotatable anchor eye in conjunction with the Zinco "SB 200" Solar Base or the "GB-Rail" Guardrail Base, supply and install according to the manufacturer's specifications; including all system components made of Stainless steel. The system is secured using bulk materials approved by the manufacturer.
Superimposed / extra load for DN 0°-2° min. 120 kg/m², Superimposed / extra load for DN 2°-5° min. 140 kg/m²
The position planning must be approved by the manufacturer.
including all system components and
Assembly set consisting of type plate, Instructions for use, control cards and copper paste
Make: Zinco "Fallnet® SB 200-Rail"
Unit: psch
Order Nr.: 907505
This product is also available in other dimensions / measurements / specifications
Superimposed / extra load anchor device with horizontally mobile anchor point for short-term work with personal protective equipment on flat roofs.
