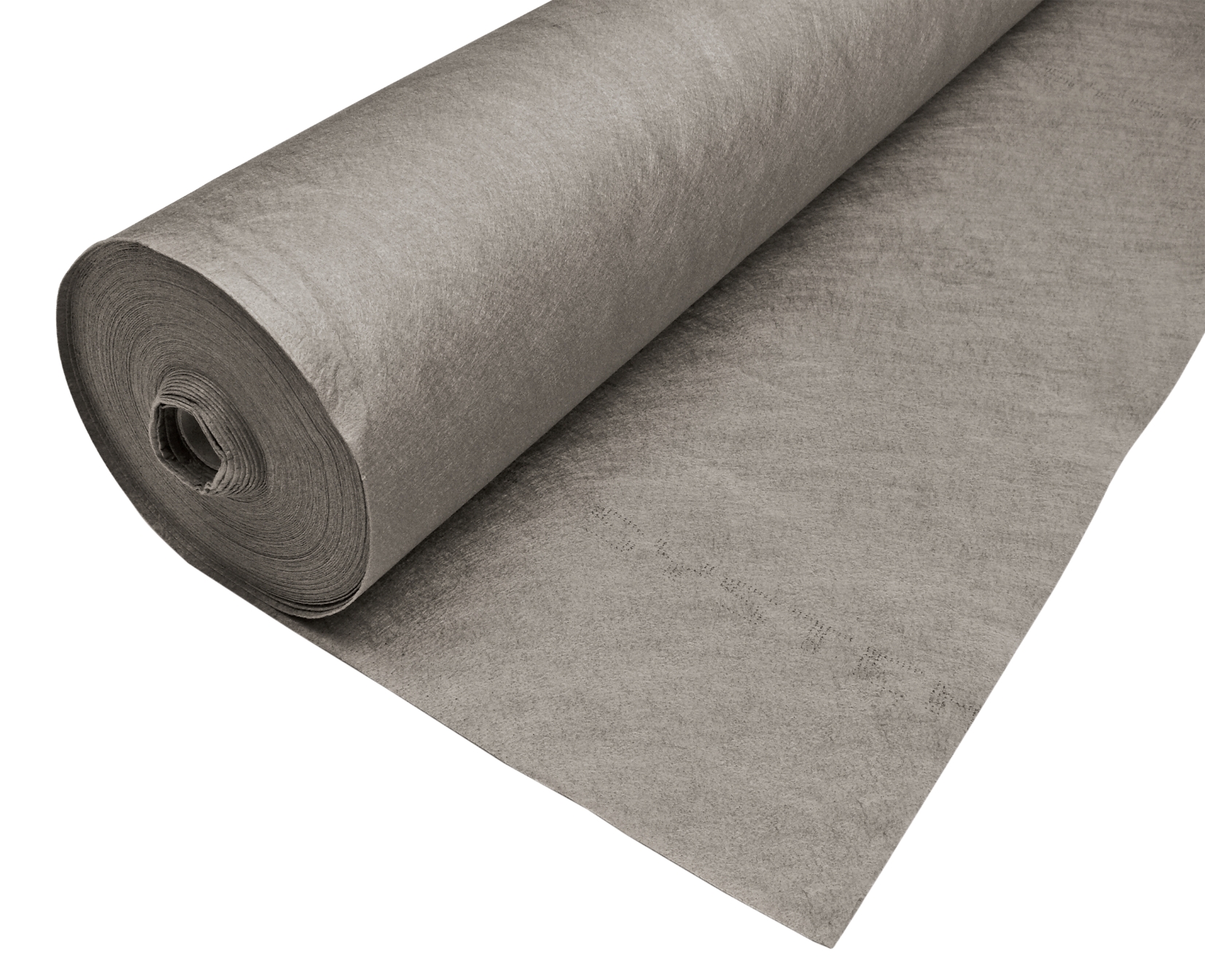

Zinco Filter Sheet PV Roll 2 x 50 m, Weight approx. 300 g/m²
Mechanically extremely heavy-duty / extremely high load bearing, needled and thermally strengthened Filter Sheet made of PP, can be used primarily on Elastodrain® EL 202 and Protectodrain® PD 250 under paving slabs.
Gray, made of polypropylene, strength factor 5, thermally strengthened, rot-resistant, water permeable (flow rate (H50) according to EN ISO 11058 / water permeability according to EN ISO 11058): 30 l/m²·s, Thickness approx. 1.6 mm, as a component of a system design with an Environmental Product Declaration (EPD).
| Order Nr.: | 2131 |
|---|---|
| Colour: | gray |
| Length [m]: | 50,0 |
| Material: | Polypropylene |
| Width [m]: | 2,0 |
| Thickness [mm]: | 1,6 |
| Packaging unit: | Role |
| Weight [g/m²]: | 300,0 |
| CBR test / penetration force [N]: | 4300 |
| Geotextile strength class / strength factor: | 5 |
| Tensile strength [kN/m]: | 23,0 |
| Opening width (O90) according to EN ISO 12956 [µm]: | 65 |
| Water permeability H50 [l/(m²-s)]: | 30,0 |
| Non-rotting: | yes |
| UV-stabilized / protected against UV light: | yes |
| Additional information: | Thermally strengthened; elongation at break (longitudinal/across): approx. 50% / 55% |
Needle-punched and thermally strengthened filter sheet made of polypropylene, weight per unit area approx. 300 g/m², penetration force per EN ISO 12236 = 4300 N, geotextile strength class 5, strip tensile test (200 mm) per DIN/EN/ISO 10319: 23 kN/m, flow rate (H50) according to EN ISO 11058 /water permeability according to EN ISO 11058: 30 l/m²·s; to be delivered and installed as a component of a system configuration with an Environmental Product Declaration (EPD) and installed over the entire surface of the drainage elements with an overlap of approx. 20 cm.
Brand: Zinco Filter Sheet “PV”
Unit: m²
Order Nr.: 2131
Installation should not be carried out if there is a risk of storms.
Use as a Filter Sheet:
Lay loose on drainage layers with approx. 200 mm overlapping. The Filter Sheet can also be raised slightly at rising edges of roof / perimeter and structural elements.
Use as a protective layer (e.g. with the "Roof Garden" system):
The PV Filter Sheet is laid directly on the waterproofing of the roof. The individual sheets must be laid with an approx. 100 mm overlapping. At all edges of roof / perimeters, roof penetrations, etc., the Membrane is brought up at least to the subsequent upper edge of the covering.
To protect against UV radiation and blowing away, the Filter Sheet must be covered immediately after installation.
Cutting:
The Membrane can be cut using a cutter knife (with a hard blade) or sturdy universal scissors. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The Membrane must be cut out in a circle over roof outlets, approx. 10 mm larger than the roof outlet all round (cross cutting is not sufficient!).
