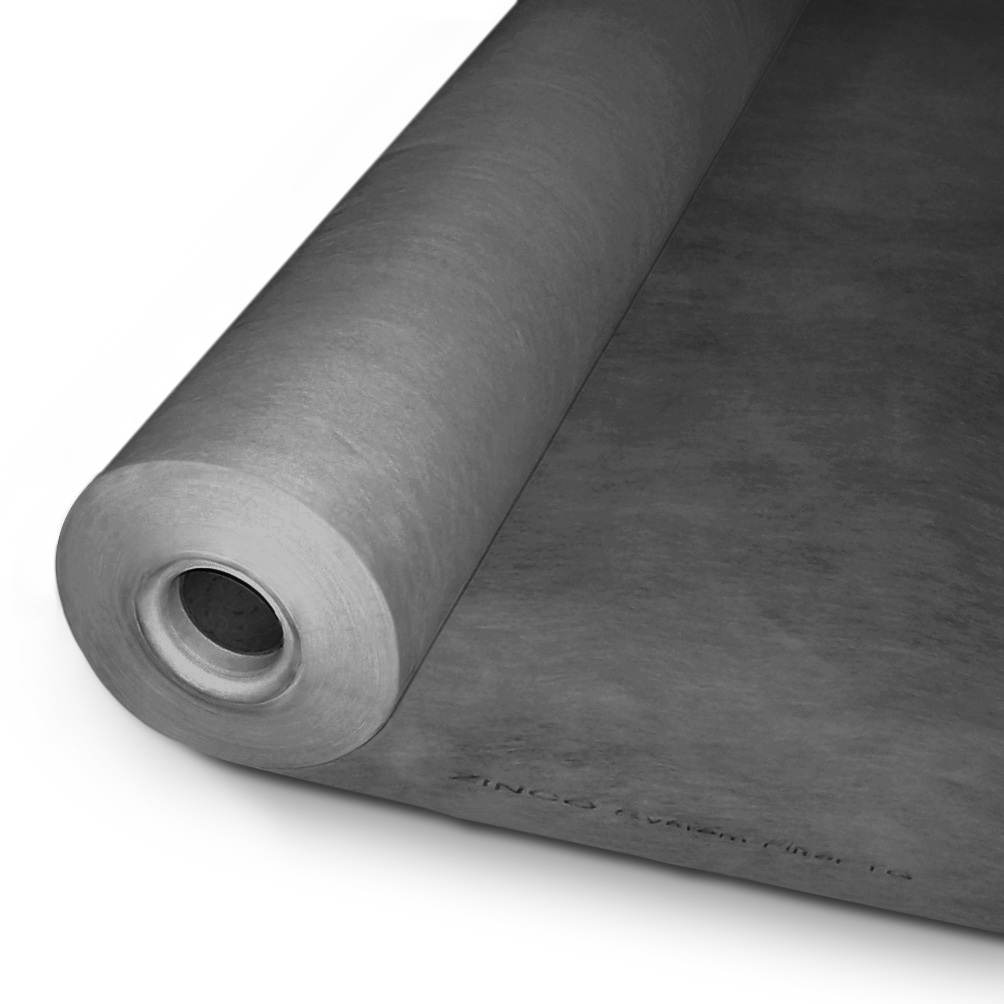

Zinco Filter Sheet TG Roll 1 x 100 m, surface area approximately / approx. 175 g/m²
Mechanically heavy-duty / extremely high loadable, needled and thermally strengthened Filter Sheet made of PP, can be used primarily on Protectodrain® PD 250 and on fills.
gray, made of polypropylene, Thickness approx. 0.9 mm, strength factor 3, thermally strengthened, compatible with bitumen, rot-proof, flow rate (H50) according to EN ISO 11058: 40 l/(m² x s).
| Order Nr.: | 2193 |
|---|---|
| Colour: | gray |
| Length [m]: | 100,0 |
| Material: | Polypropylene |
| Width [m]: | 1,0 |
| Thickness [mm]: | 0,9 |
| Packaging unit: | Role |
| Weight [g/m²]: | 175 |
| CBR test / penetration force [N]: | 2000 |
| Geotextile strength class / strength factor: | 3 |
| Tensile strength [kN/m]: | 13,0 |
| Opening width (O90) according to EN ISO 12956 [µm]: | 85 |
| Water permeability H50 [l/(m²-s)]: | 40,0 |
| Compatible with bitumen: | Yes |
| Non-rotting: | Yes |
| UV-stabilized / protected against UV light: | no |
| Additional info: | Thermally strengthened; elongation at break lengthwise / crosswise approx. 45%, across approx. 50% |
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Installation should not be carried out if there is a risk of storms.
1
Laying:
Lay loose on drainage layers with approximately / approx. 20 cm overlapping. The Filter Sheet can also be raised slightly at rising edges of roof / perimeter and structural elements.
To protect against UV radiation and blowing away, the Filter Sheet must be covered immediately after installation.
2
Cutting:
The Membrane can be cut using a cutter knife (with a hard blade) or sturdy universal scissors. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The Membrane must be cut out in a circle over roof outlets, approximately / approx. 1 cm larger than the roof outlet all round (cross cutting is not sufficient!).
