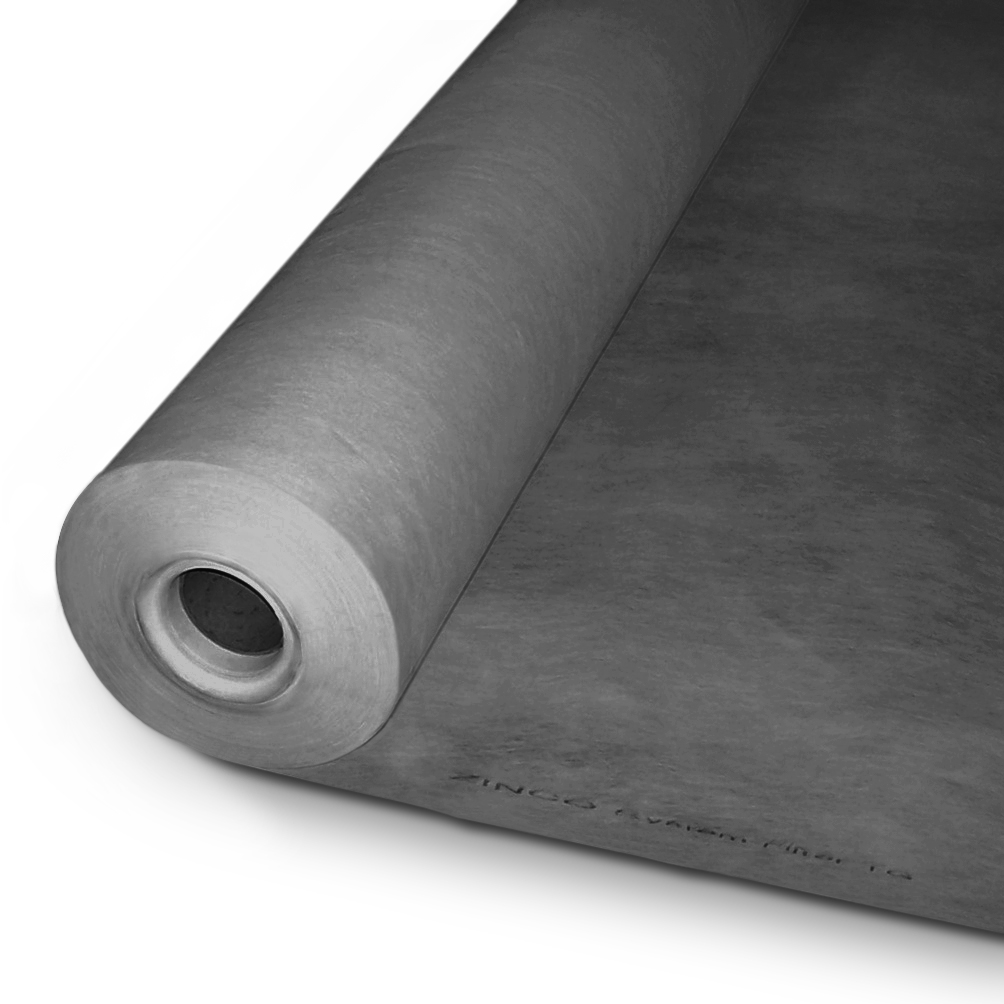

Zinco Filter Sheet TG Roll 2 x 100 m, area approx. 175 g/m²
Mechanically heavy-duty / extremely high loadable, needled and thermally strengthened Filter Sheet made of PP, can be used primarily on Protectodrain® PD 250 and on fills.
Gray, made of polypropylene, thickness approx. 0.9 mm, strength factor 3, thermally strengthened, compatible with bitumen, rot-resistant, water permeable (flow rate (H50) according to EN ISO 11058 / water permeability according to EN ISO 11058): 40 l/(m² x s), as a component of a system with an Environmental Product Declaration (EPD).
| Order Nr.: | 2192 |
|---|---|
| Colour: | gray |
| Length [m]: | 100,0 |
| Material: | Polypropylene |
| Width [m]: | 2,0 |
| Thickness [mm]: | 0,9 |
| Packaging unit: | Role |
| Weight [g/m²]: | 175 |
| CBR test / penetration force [N]: | 2000 |
| Geotextile strength class / strength factor: | 3 |
| Tensile strength [kN/m]: | 13,0 |
| Opening width (O90) according to EN ISO 12956 [µm]: | 85 |
| Water permeability H50 [l/(m²-s)]: | 40,0 |
| Compatible with bitumen: | yes |
| Non-rotting: | yes |
| UV-stabilized / protected against UV light: | no |
| Additional information: | Thermally strengthened; elongation at break lengthwise: approx. 45%, crosswise: approx. 50% |
Needle-punched and thermally strengthened filter sheet made of polypropylene, weight approx. 175 g/m², penetration force per DIN/EN/ISO 12236: 2000 N, geotextile strength class 3, strip tensile test (200 mm) per DIN/EN/ISO 10319: 13.0 kN/m, flow rate (H50) according to EN ISO 11058 /water permeability according to EN ISO 11058: 40 l/m²·s; to be delivered and installed as a component of a system configuration with an Environmental Product Declaration (EPD) and installed over the entire surface of the drainage elements with an overlap of approx. 20 cm.
Brand: Zinco Filter Sheet “TG”
Unit: m²
Order Nr.: 2192
Installation should not be carried out if there is a risk of storms.
Installation:
Lay loose on drainage layers with approx. 200 mm overlapping. The Filter Sheet can also be raised slightly at rising edges of roof / perimeter and structural elements.
To protect against UV radiation and blowing away, the Filter Sheet must be covered immediately after installation.
Cutting:
The Membrane can be cut using a cutter knife (with a hard blade) or sturdy universal scissors. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The Membrane must be cut out in a circle over roof outlets, approx. 10 mm larger than the roof outlet all round (cross cutting is not sufficient!).
This product is also available in other dimensions / measurements / specifications
Mechanically heavy-duty / extremely high loadable, needled and thermally strengthened Filter Sheet made of PP, can be used primarily on Protectodrain® PD 250 and on fills.
