Zinco Floradrain FD 60 neo board 1.03 x 2.30 m (net 1 x 2.25 m)

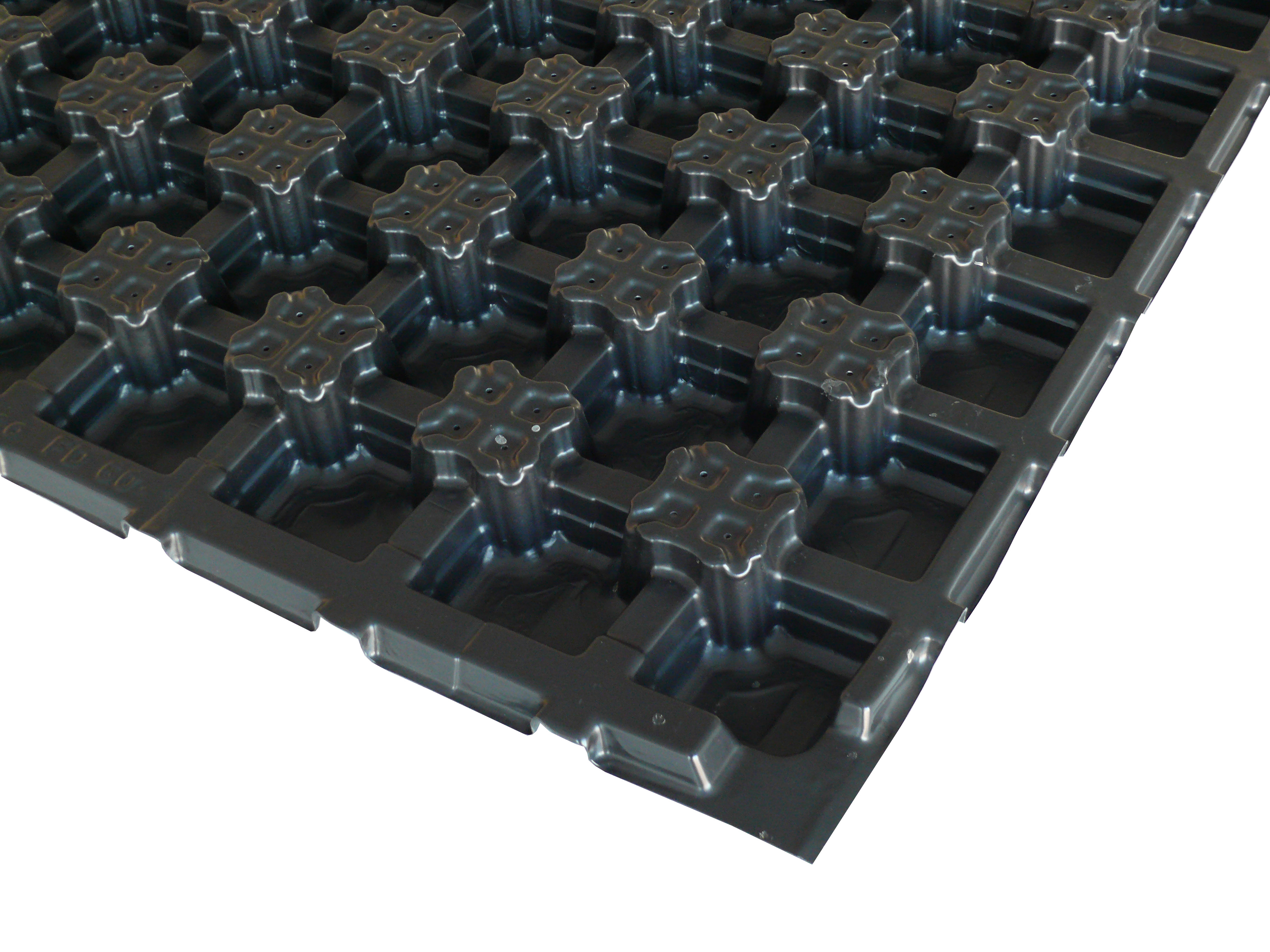

High-performance drainage and water storage element made of profiled plastic for use in intensive green roofs and utility roofs.
Drainage and water storage element made of deep-drawn RC polyolefin, height approx. 60 mm, with water storage troughs and openings for ventilation and diffusion, as well as a multidirectional channel system on the rubberised underside; water drainage capacity tested according to EN ISO 12958, compressive strength (unfilled) approx. 40 kN/m², weight per unit area approx. 2.2 kg/m², as a component of a system design with an Environmental Product Declaration (EPD).
| Order Nr.: | 3062 |
|---|---|
| Colour: | black |
| Length [m]: | 2.30 net 2.25 |
| Material: | Polyolefin, mainly PE |
| Width [m]: | 1.03 net 1.00 |
| Height [mm]: | 60,0 |
| Packaging unit: | Board à 2.25 m² |
| Weight [kg/m²]: | 2,2 |
| Pressure [kN/m²]: | 40 kN/m² (unfilled); 190 kN/m² (infilled to top); 530 kN/m² (infilled 10 cm above) |
| Water storage capacity [l/m²]: | 13 |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 1,1 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 1,6 |
| Water runoff at sheet level at 3% gradient / incline [l/(s-m)]: | 2,0 |
| Backfill volume [l/m²]: | 27,0 |
| Compatible with bitumen: | yes |
| Additional information: | Water storage capacity with Zincolit® Plus infill: approx. 13 l/m²; Shipping unit: 200 pieces per pallet |
Made of thermoformed polyolefin, height 60 mm, with water storage troughs / cells and openings for ventilation and diffusion, as well as a multidirectional channel system on the rubberised underside, Compressive strength: approx. 40 kN/m² when unfilled, approx. 190 kN/m² when infilled with stone chippings; fill volume: approx. 27 l/m²; weight: approx. 2.2 kg/m²; water drainage capacity tested according to EN ISO 12958: roof slope 1 %—approx. 1.1 l/s*m; roof slope 2 %—approx. 1.6 l/s*m; as a component of a system with an Environmental Product Declaration (EPD); delivery and installation according to manufacturer's instructions.
Brand: ZincoFloradrain® "FD 60 neo"
Unit: m²
Order Nr.: 3062
Installation should not be carried out if there is a risk of storms.
Installation:
Floradrain® FD 60 neo elements are laid with the openings for diffusion (four holes per stud) facing upwards. The FD 60 neo elements are laid in a bonded pattern and have connecting seams all around. The elements should be laid in such a way that the larger seam lies on top of the smaller one. This results in a determined laying direction, which must be maintained throughout the entire installation. Arrows are stamped on the edges to indicate the laying direction.
After laying, the drainage elements must be covered immediately (UV protection!) and secured against blowing away. If the actual Superimposed / extra load does not follow immediately, the latter can be done by filling with water for a short time.
If the Floradrain® slabs are used under greenery, the elements are always infilled with a bulk material, preferably with Zincolit® Plus. Under concrete slabs, the Floradrain® elements are infilled with hard stone chippings (grain size ≤ 8 mm).
Cutting:
The drainage elements can be cut with a standard angle grinder, an electric cutter or a hot wire. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The drainage elements above roof outlets must be cut out according to the size of the outlet.
