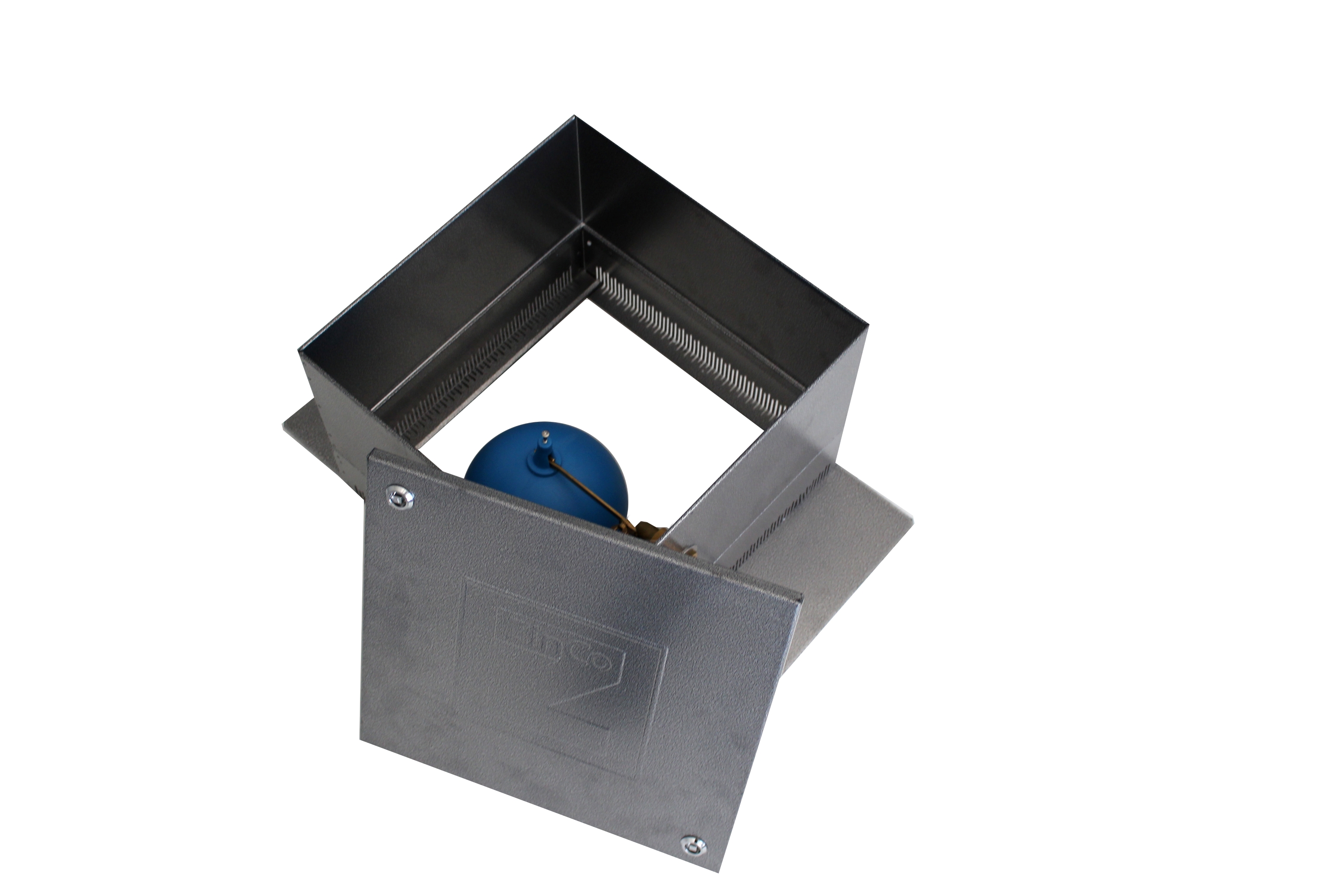

Zinco Inspection and Irrigation Chamber KB 30, height 30 cm, swimmer-controlled
Irrigation shaft for automatic accumulation irrigation of intensive green roofs up to approximately / approx. 400 m² Area.
swimmer-controlled automatic watering system for accumulation watering on zero-degree roofs, separation distances in accordance with DIN EN 1717, set consisting of inlet valve with float (1/2 inch), Inspection Chamber KS 10/40, top-up valve KSA 20/40, lockable cover, lid, weight: approx. 7.65 kg.
| Order Nr.: | 4034 |
|---|---|
| Colour: | antique silver |
| Material: | Extension piece and cover, lid: Galvanized and plastic-coated sheet steel, Shaft: aluminium, plastic-coated |
| Height [mm]: | 300,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 7,65 |
| Outer dimension of the chamber [mm]: | 400 x 400 |
| Aperture dimension [mm]: | 370 x 370 |
| Slot width [mm]: | 3,0 |
| Additional info: | Minimum flow pressure approx. 1.0 bar, max. permissible water pressure approx. 6.0 bar, accumulation height approx. 3-10 cm, switching difference < 5 mm. |
Height approx. 30 cm, outer dimension of the chamber approx. 40 x 40 cm, flange approx. 40 x 62 cm, opening width approx. 34.5 x 33.5 cm, made of aluminium and galvanized steel, plastic-coated, with pull-out flange. Built-in float valve for automatic fill level regulation. Water supply via hose or 1/2" pipeline; cover, lid can be closed.
Minimum flow pressure approx. 1.0 bar
max. permissible water pressure approximately / approx. 6.0 bar
possible build-up height approximately / approx. 3-10 cm
Product: Zinco Inspection and Irrigation Chamber "KB 30"
Unit: pcs
Order Nr.: 4034
1.2 System Substrate "Roof Garden" or System Substrate "Lawn", from 200 mm, with a dumping height / coverage height of more than 350 mm with Zincolit® Plus as sub-substrate
1.3 Filter Sheet SF
1.4 Floradrain® FD 60 neo filled with approximately / approx. 27 l/m² Zincolit® Plus, (openings for diffusion at the top)
1.5 Protection Mat ISM 50
1.6 Root Barrier WSB 100-PO
1.7 Roof structure with root-resistant waterproofing of the roof
2.1 Inspection and Irrigation Chamber KB 30
2.2 Gravel / grit strips in the chippings bedding as a cleanliness strip
2.3 Filter Sheet SF
Installation of Inspection and Irrigation Chamber KB 30
Before installing the KB 30 Inspection and Irrigation Chamber, the flanges of the inspection chamber must be pulled out in the direction of the arrow until they click into place. The KB 30 is then placed directly on the protective layer at the existing water connection. If extension pieces (KSA 8 or KSA 20) are used, the cover, lid of the Inspection Chamber is removed for installation, the required number of extension pieces are fitted and the cover, lid is placed back on the Inspection Chamber (max. height approx. 60 cm). A gravel strip approximately / approx. 30 cm wide is placed around the Inspection Chamber. This prevents slippage and the ingrowth of plants and provides a visual marker. The water supply must be connected to the pre-assembled inlet valve via a ½" hose or pipeline. A permissible minimum flow pressure of approximately 1.0 bar, max. permissible water pressure approximately / approx. 6.0 bar, must be observed.
Installation of interlocks / locking set
When using a set of interlocks / locking set, this is installed in the finger holes of the cover, lid. To do this, the nuts on the back of the locking set are unscrewed, the locks are inserted from above through the respective hole and aligned so that the quarter turn of the locking mechanism engages the edge of the Inspection Chamber. Finally, the nuts are refitted from the underside and tightened.
Maintenance
The Inspection Chamber should be opened regularly as part of the care and maintenance of a greening system and the float mechanism checked. Debris must be removed to ensure proper functioning.
