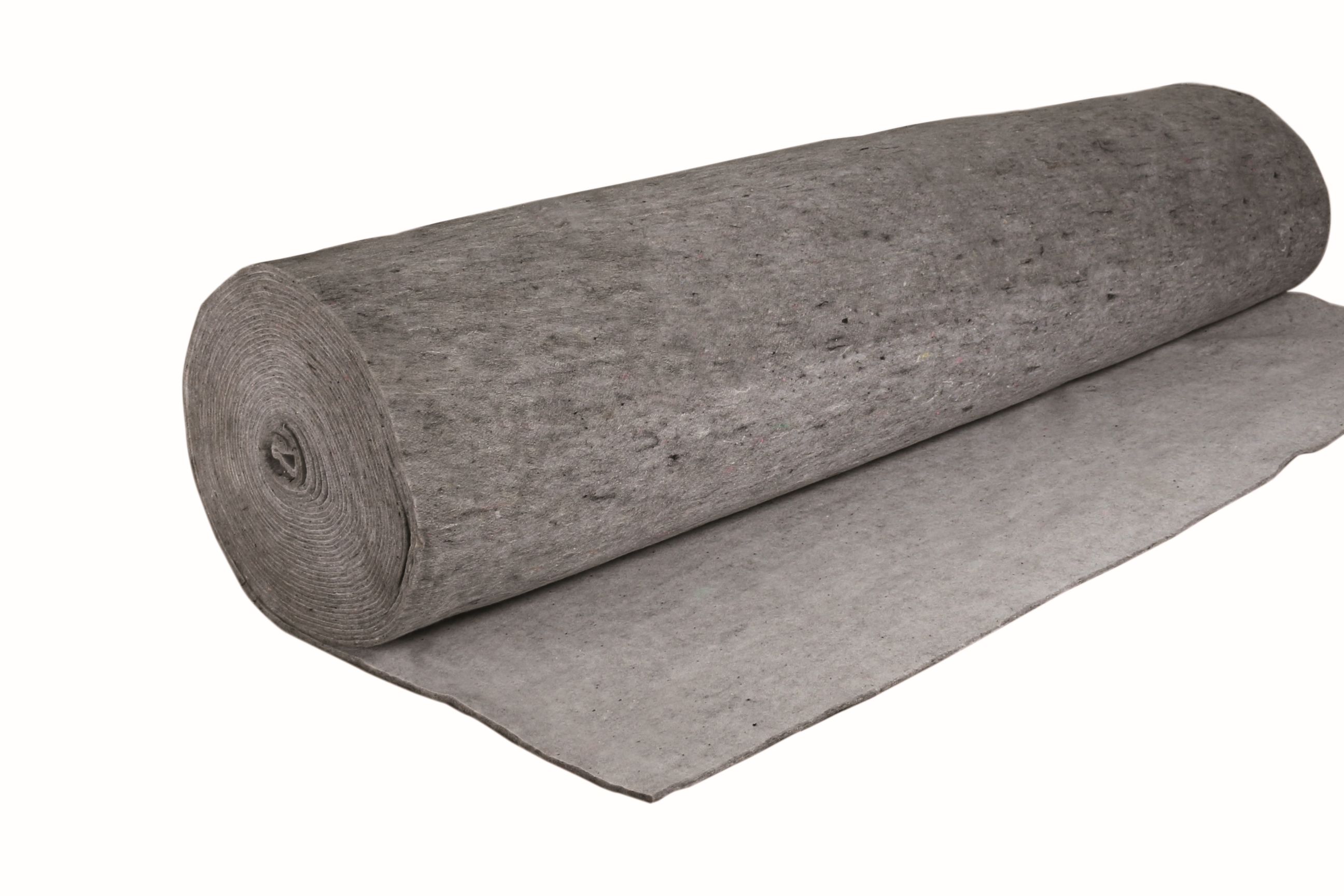

Zinco Protection Mat, BSM 64, roll 2 x 25 m
Synthetic fiber mat with particularly high water storage capacity for use as a protective layer under extensive and intensive green roofs.
Weight approx. 650 g/sqm, brown mottled, made of polyester polypropylene, strength factor 4, compatible with bitumen, rot-proof, water storage capacity approx. 7 l/sqm Thickness approx. 7 mm, as a component of a system structure with Environmental Product Declaration EPD and CE marking via ETA No. 13/0668 "Kit for Green Roofs".
| Order Nr.: | 2064 |
|---|---|
| Colour: | brown mottled |
| Length [m]: | 25,0 |
| Material: | Polyester+polypropylene |
| Width [m]: | 2,0 |
| Thickness [mm]: | 7,0 |
| Packaging unit: | Role |
| Weight [g/m²]: | 650,0 |
| Geotextile strength class / strength factor: | 4 |
| Protection efficiency according to EN ISO 13428 [%]: | Residual thickness ≥ 30 |
| Water storage capacity [l/m²]: | 7,0 |
| Compatible with bitumen: | Yes |
| Non-rotting: | Yes |
| UV-stabilized / protected against UV light: | no |
Fibre mat made of polyester/polypropylene with stabilizing carrier membrane as an insert and proven protective effect according to European Standard EN ISO 13428, strength class 4, compatible with bitumen, rot-proof, Weight approx. 650 g/m², Thickness approx. 7 mm, water storage capacity approx. 7 l/m², as a component of a system structure with Environmental Product Declaration EPD and CE marking via ETA no. 066 "Building kit according to European Standard EN ISO". 7 l/m², as a component of a system structure with Environmental Product Declaration EPD and CE marking via ETA No. 13/0668 "Kit for Green Roofs", deliver and install as a water storage and mechanical protection layer with 10 cm joint overlap over the entire surface.
Product: Zinco "BSM 64" Irrigation and Protection Mat
Unit: m²
Order Nr.: 2064
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Installation should not be carried out if there is a risk of storms.
Installation:
The protective mat is laid loosely with approximately / approx. 10 cm overlapping. On rising edges of roof / perimeters and structural elements, it is laid at least up to the upper edge of the covering.
To protect against UV radiation and blowing away, the protective mat must be covered immediately after installation. Short-term protection against wind can also be provided by moistening the mats.
Cutting:
We recommend cutting the protective mat with sturdy universal scissors, taking care not to damage the waterproofing of the roof! If damage does occur, it must be reported and repaired immediately.
The protective mat must be cut out in a circle over roof outlets, approximately / approx. 1 cm larger than the roof outlet all round (cross cutting is not sufficient!).
