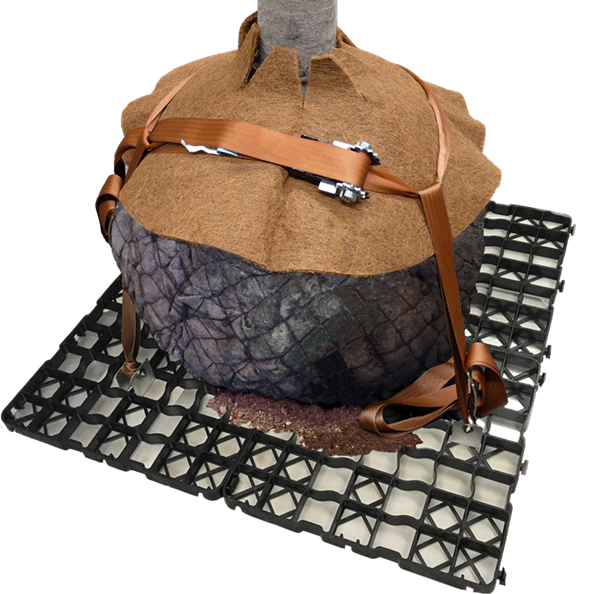

Zinco Robafix ballasted roof tree anchoring system
Anchoring system for root balls specially designed for tree planting on buildings, supported and load-distributing by Superimposed / extra load.

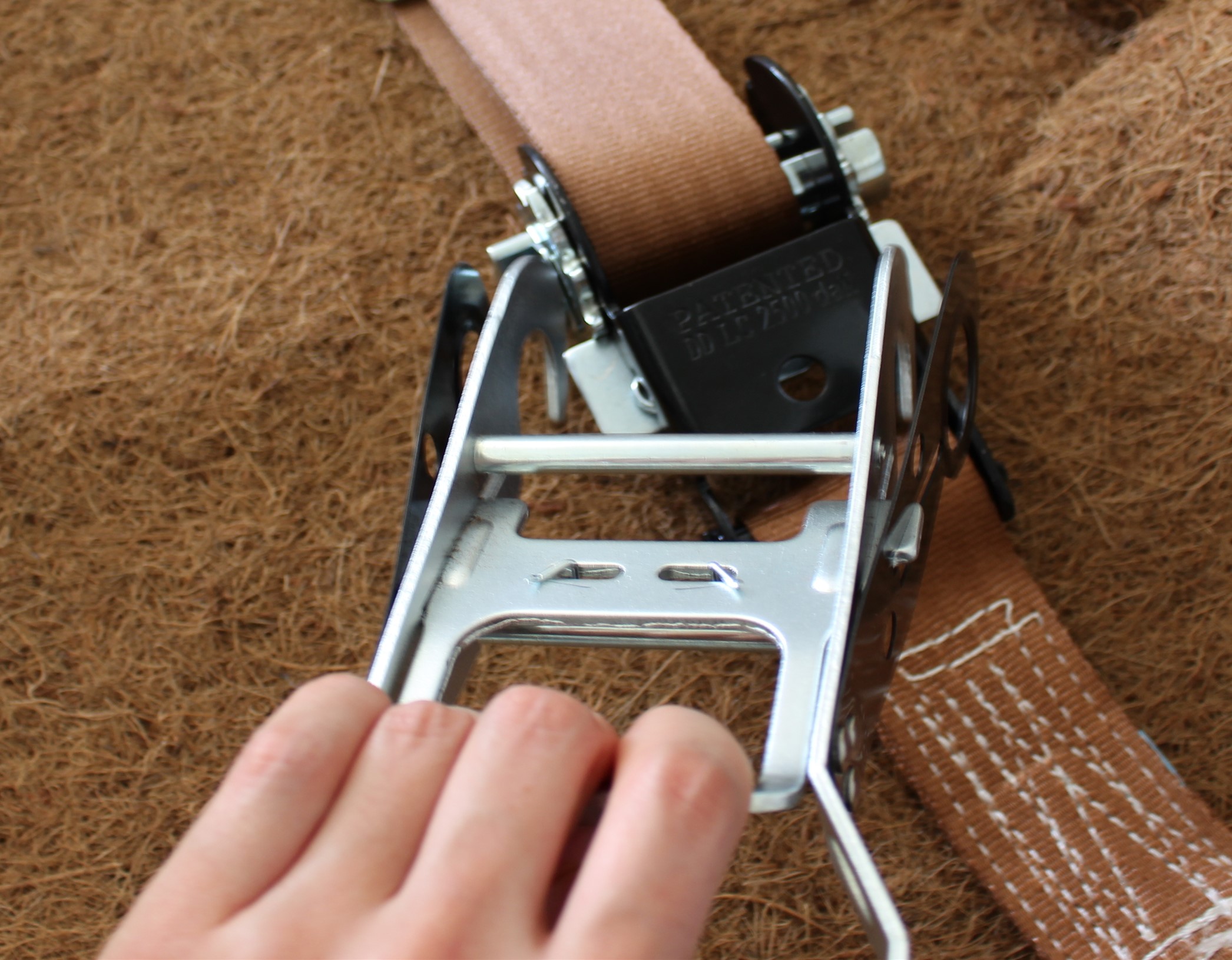

root ball anchoring specially developed for use in Green Roofs up to approx. 0.8 m bale diameter; consisting of 3 anchor plates approx. 40 x 36 cm, aluminium with carriage bolts, grid elements (RC HDPE) approx. 1.00 x 1.00 m, height approx. 30 mm; incl. belt loops which are fastened by means of a ratchet; ratchet detachable (Order-Nr. 9011); incl.coconut protective mat diameter 80 cm, weight: approx. 10.0 kg
| Order Nr.: | 9015 |
|---|---|
| Material: | 3 aluminium anchor plates, 4 grid elements made of RC plastic |
| Height [mm]: | 30,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 10,0 |
| Additional information: | Anchor plates approx. 40 x 36 cm with one carriage bolt each; grid elements approx. 50 x 50 cm; total area 1.0 m²; incl. belt loops, coconut protective mat and ratchet lever. |
root ball anchoring specially developed for use in Green Roofs, suitable for root ball diameters up to approx. 80 cm; consisting of 4 grid elements made of RC HDPE with 1 x 1 m and height approx. 30 mm, 3 anchor plates made of aluminium approx. 40 x 36 cm, with carriage bolt for fastening the strap loops, strap set with three fixing straps and one tensioning strap, which are fastened with a detachable Ratchet Strap Tensioner; incl. coconut protective mat diameter 80 cm.
Make: Zinco "Robafix®"
Unit: pcs
Order Nr.: 9015
This product has accessories
Anchoring system for root balls specially designed for tree planting on buildings, supported and load-distributing by Superimposed / extra load.
Anchoring system for root balls specially designed for tree planting on buildings, supported and load-distributing by Superimposed / extra load.
