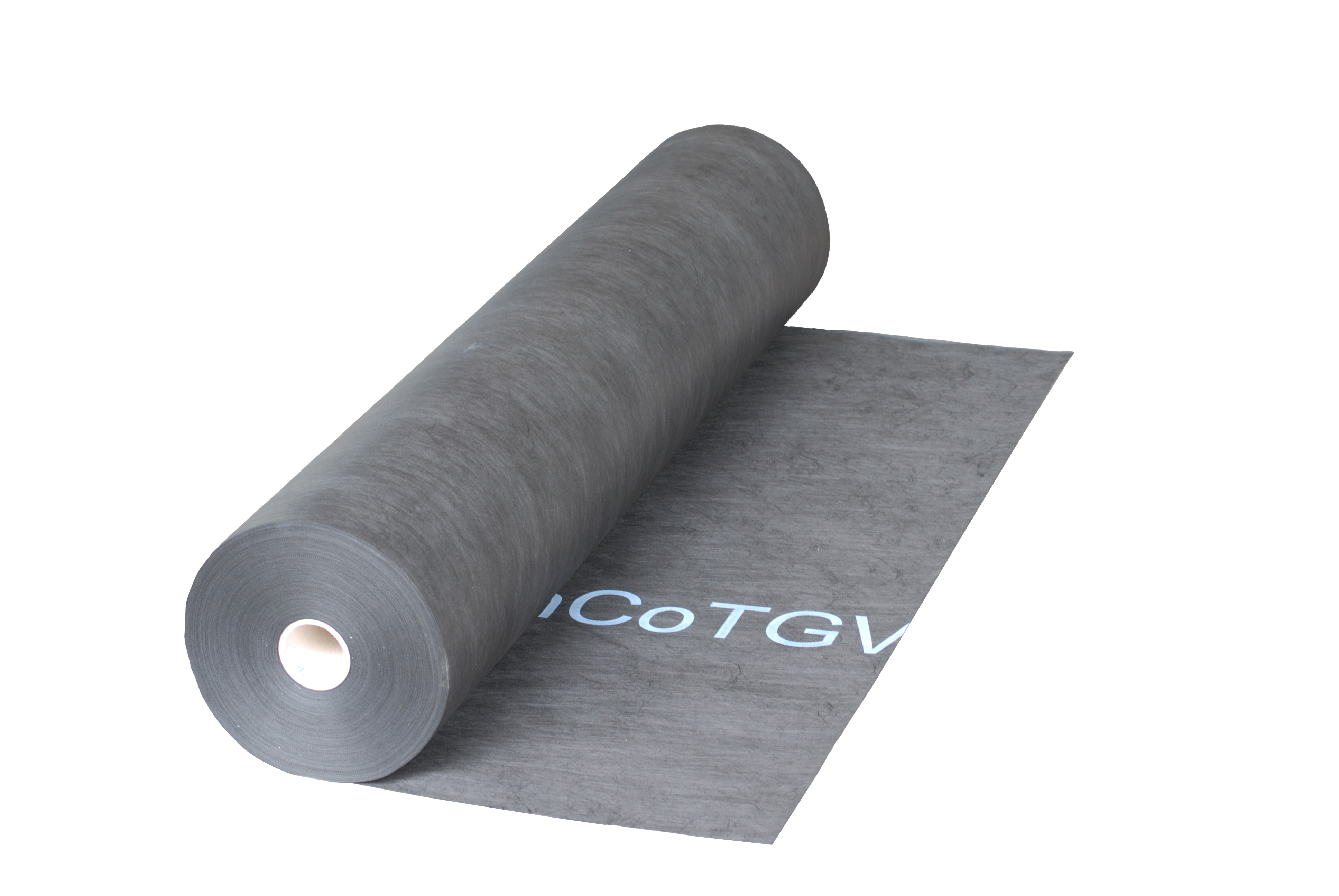

Zinco Separation Membrane TGV 21, roll 1.6 x 250 m, area approx. 80 g/m²
Air-permeable but water repellent Membrane made of polypropylene, can be used as a permeable to vapour / diffusion possible separation layer, e.g. for inverted roofs or metal roofs.
black, polypropylene, Thickness approximately / approx. 0.55 mm, water repellent, rot-proof, compatible with bitumen, permeable to vapour / diffusion possible (sd < 0.01 m)
| Order Nr.: | 2180 |
|---|---|
| Colour: | black |
| Length [m]: | 250,0 |
| Material: | Polypropylene |
| Width [m]: | 1,6 |
| Thickness [mm]: | 0,55 |
| Packaging unit: | Role |
| Weight [g/m²]: | 80,0 |
| WDD-equivalent air layer thickness [m]: | sd ≤ 0.01 |
| Maximum tensile strength: | longitudinal: 167 N/50 mm; across: 120 N/50 mm |
| Tearing force [N]: | longitudinal: 24 N, across: 30 N |
| Max. tensile extension [%]: | > 150 |
| Effective opening width [mm]: | Dw = 0.06 |
| Air permeability at 1 mbar [l(m²-s)]: | 750,00 |
| Compatible with bitumen: | Yes |
| Non-rotting: | Yes |
| UV-stabilized / protected against UV light: | no |
Thermally bound, water repellent polypropylene Membrane, sd value < 0.01 m, air permeability at 1 mbar: 750 l/(m² . s), maximum tensile strength longitudinal 167 N/5 cm, max. tensile extension > 150 %, deliver and install over the entire surface with 10 cm butt joint overlap.
Product: Zinco Separation Membrane TGV 21
Unit: m²
Order Nr.: 2180
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Installation should not be carried out if there is a risk of storms.
1
Installation:
The Separation Membrane TGV 21 is a Membrane especially suitable for inverted roofs. It is laid loosely with approximately / approx. 10 cm overlapping. At the edges of roof / perimeter and rising structural elements, it can be raised to protect the waterproofing / sealing.
To protect against UV radiation and blowing away, the Membrane must be covered immediately after installation.
2
Cutting:
The Membrane can be cut using a cutter knife (with a hard blade) or sturdy universal scissors. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The Membrane must be cut out in a circle over roof outlets, approximately / approx. 1 cm larger than the roof outlet all round (cross cutting is not sufficient!).
