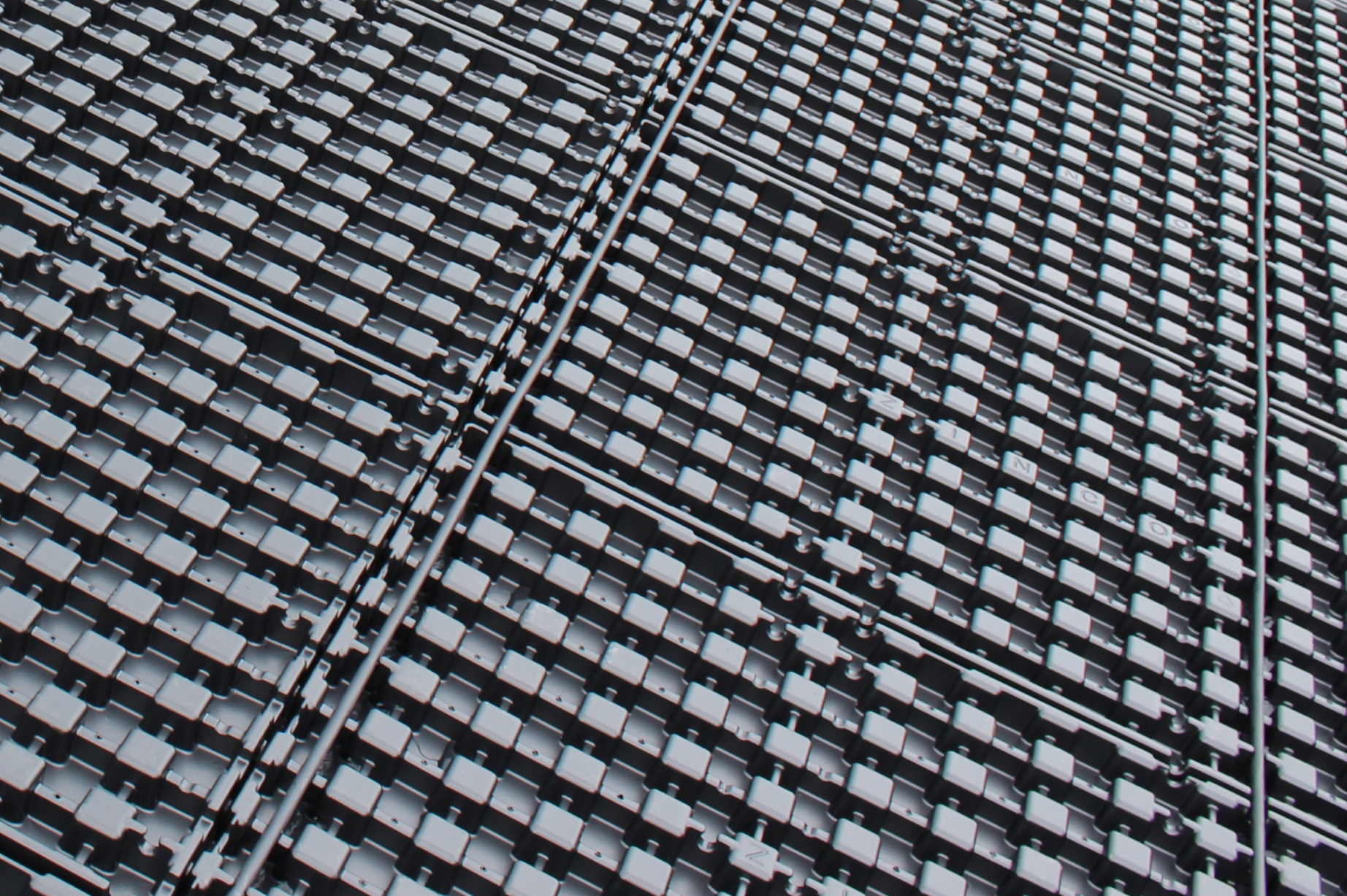

Zinco SlopeTec ST 45 board, approx. 1.02 x 2.02 m; height approx. 45 mm
Water storage and irrigation unit made of high-profiled / moulded plastic for use on pitched roofs with an inclination of up to 20° (for inclinations of 10° or greater, the area must be securely edged), in combination with Dripperlines that clip directly into the unit.
Sturdy, shear-resistant drainage element made of thermoformed recycled hard plastic (ABS); weight per unit area approx. 2 kg/m²; suitable for pitched roofs with an inclination of up to 20°; Water storage volume of approx. 12 l/m² at 10–20°, with special mounts for the 100-L1 Dripperline; the elements feature special connecting studs along the edges that ensure a seamless, flat bond. The panels are infilled directly with System Substrate; infill volume is approx. 27 L/m².
| Order Nr.: | 3945 |
|---|---|
| Colour: | black |
| Length [m]: | 2.02 net 2.00 |
| Material: | Recycled hard plastic, ABS |
| Width [m]: | 1.02 net 1.00 |
| Height [mm]: | 45,0 |
| Packaging unit: | Board |
| Weight [kg/m²]: | 2,0 |
| Compressive strength at 10% yield [kPa]: | 138,0 |
| Backfill volume [l/m²]: | 27,0 |
| Additional information: | Water storage volume for roof pitches between 10° and 20°: approx. 12 l/m² |
Water storage and irrigation unit made of high-profiled / moulded ABS hard plastic for use on pitched roofs with a roof slope of up to 20°, weight per unit area approx.
2.0 kg/m², height approx. 45 mm, water storage volume within the slope range (10–20°) approx. 12 l/m², with integrated connection studs and mounts for Dripperlines; delivery and installation according to manufacturer's instructions, and, if provided for in the irrigation plan, equip with Dripperlines as specified.
Unit: m²
Order Nr.: 3945
Installation should not be performed if there is a risk of a storm.
Installation:
The SlopeTec® elements are installed with a connection to each other, starting at the lowest point along a horizontal fold-up / upstand or threshold. The elements are laid side by side with overlapping edges. Care must be taken to ensure that the recesses and protrusions interlock precisely to prevent slippage.
When installing SlopeTec® slabs, it is important to ensure that the dripperlines can be laid continuously and horizontally from slab to slab. Therefore, the long side of the slabs must always be oriented in the direction of thrust. The panels may be staggered in 500 mm increments.
After installation, the slabs must be covered immediately (UV protection!) and secured against being blown away. The latter can be achieved temporarily by filling them with water, provided the superimposed / extra load is not applied immediately afterward.
Cutting:
The drainage elements can be cut with an electric cutter or hot wire. Cutting to length with a circular saw or an electric foxtail is also possible.
When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
Above roof outlets, the drainage elements must be cut out according to the size of the outlet.
