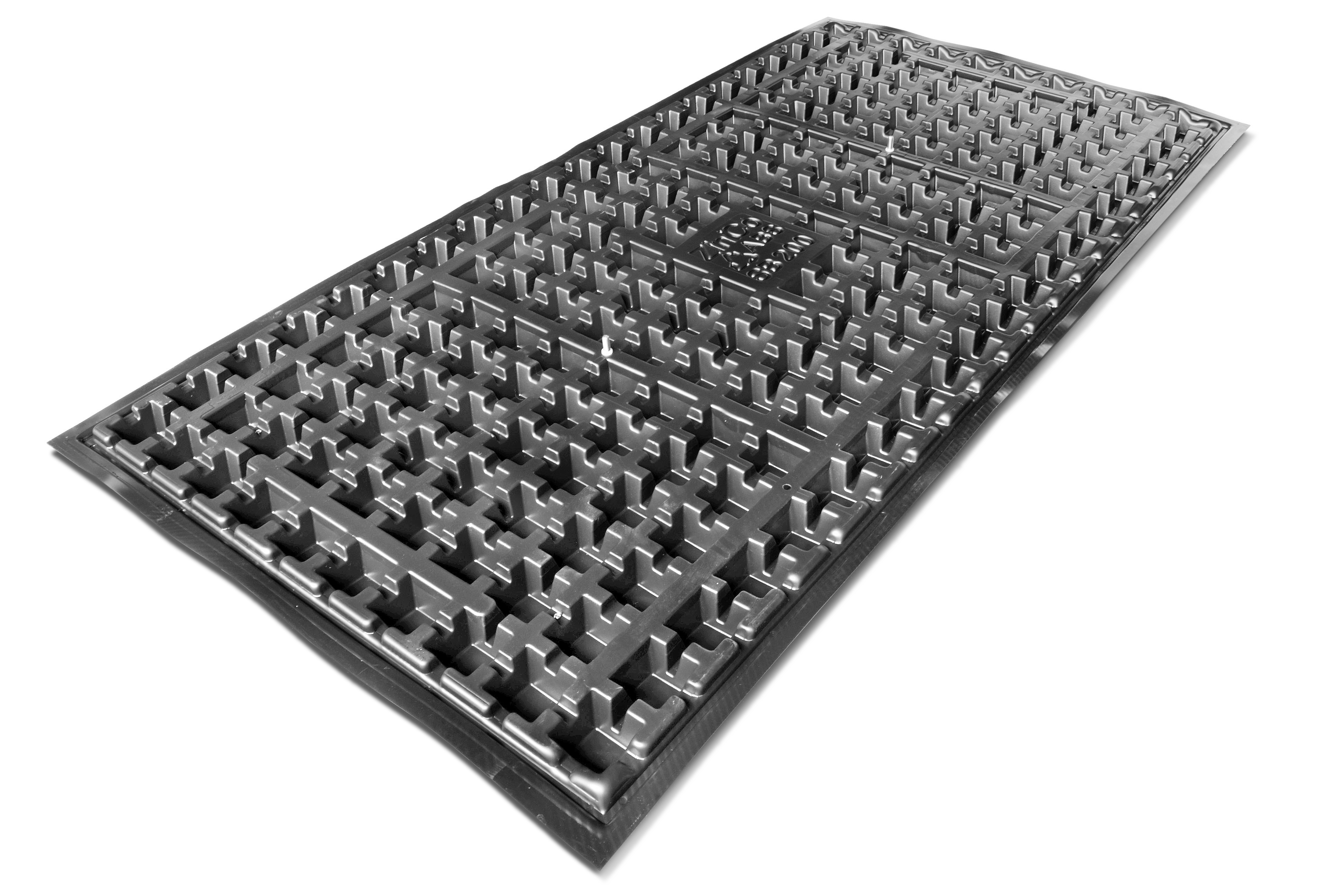

Zinco Solar Base SB 200-4, with 4 fixations
The perfect mounting substrate for photovoltaic and thermal solar power plants on flat roofs with a maximum roof slope of 5°.
approx. 1.0 x 2.0 m, height approx. 43 mm, made of profiled ABS plastic with rubberised underside reinforcement profiles made of aluminium, with water storage and backfill troughs, backfill volume: approx. 16 l/sqm, total weight: approx. 8 kg, stainless steel connection material thread M 10
| Order Nr.: | 3465 |
|---|---|
| Colour: | black |
| Length [m]: | 2,0 |
| Material: | Recycled hard plastic (ABS) |
| Width [m]: | 1,0 |
| Height [mm]: | 43,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 7,0 |
| Pressure [kN/m²]: | 250.0 (with 10% yield) |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 1,6 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 2,4 |
| Water runoff at sheet level at 3% gradient / incline [l/(s-m)]: | 3,0 |
| Backfill volume [l/m²]: | 16,0 |
| Compatible with bitumen: | Yes |
| UV-stabilized / protected against UV light: | Yes |
| Additional info: | Counter and stiffening profiles made of aluminium |
made of ABS plastic, dimensions approx. 100 x 200 cm, height approx. 43 mm, weight approx. 7 kg, with water storage and backfill troughs (backfill volume approx. 16 l/m²) and multi-directional channel system on the underside, tested according to DIN EN ISO 12958, incl. integrated counter and stiffening profiles made of aluminium and structurally tested fastening option for Solar Base Frame SGR-Ost-West, deliver and install on protective mat or continuous drainage layer according to manufacturer's instructions.
The entire surface of the Solar Base SB 200 must always be covered with bulk material in accordance with the required Superimposed / extra load.
Product: Zinco Solar Base SB 200-4
Unit: pcs
Order Nr.: 3465
Installation SB 200-4:
Scope of delivery per unit:
1 pc. Zinco Solar Base SB 200-4 (with four fixations)
4 pcs. hexagonal nuts M10 with flange, A2, DIN 6923, wrench size 15 mm
4 pcs. Stainless steel washers
2 pcs. Zinco Solar base frame SGR
2 pcs. Truss-head bolt M8 x 16, DIN 603
2 hexagonal nuts M8, A2, DIN 934
2 pcs. Stainless steel washers, ø inside/outside 10.5/20 mm
Tools required:
Socket wrench SW 15
Torque wrench 20 Nm
Installation steps:
Lay out Solar Base SB 200-4, with pre-assembled fixing points.
With the "saddle" mounting system, the two-part frame support (Solar base frame) is screwed onto a Solar Base SB 200-4 so that the two frames abut each other with their higher sides. In the "butterfly" variant, the two frames butt against each other on the lower side.
Each frame requires two M10 threaded bolts, two washers and two flange nuts for the connection to the solar base. Screwing materials are included with the Base plate.
The two east-west Solar base frames arranged in relation to each other are screwed fixed together at the rear using two M8 × 16 bolts, two M8 hexagon nuts and two 10.5/20 mm washers (once at the frame high point, once at the frame low point). Please also note the last point in the assembly instructions for this step!
Notice:
- The Solar Base SB 200-4 is installed on a protective layer and must always be filled and covered with bulk material over the entire surface in accordance with the required Superimposed / extra load.
- If the PV system is not completely installed immediately, the horizontal mounting profiles and wind bracing must be installed in any case.
- When mounting horizontal profiles with M8 screws, always use a Stainless steel washer Ø inside/outside 10.5/20 mm.
- No liability if the installation instructions are not followed.
Installation wind bracing:
Scope of delivery per unit:
1set of wind bracing consists of:
2 pcs. pre-drilled aluminum flat strip rods (riveted in the middle)
4 pcs. Round head screws M8 × 16, A2, DIN 603
4 hexagonal nuts M8, A2, DIN 93
4 pcs. Stainless steel washers, Ø inside/outside 10.5/20 mm
Tools required:
Socket wrench SW 13
.webp)
When installing the wind bracing, the positions according to the installation plan must be observed. They are installed in the same way as the Solar base frame connection described above, except that the two aluminum flat bars (pre-drilled) are positioned between the two frames.
This product is also available in other dimensions / measurements / specifications
