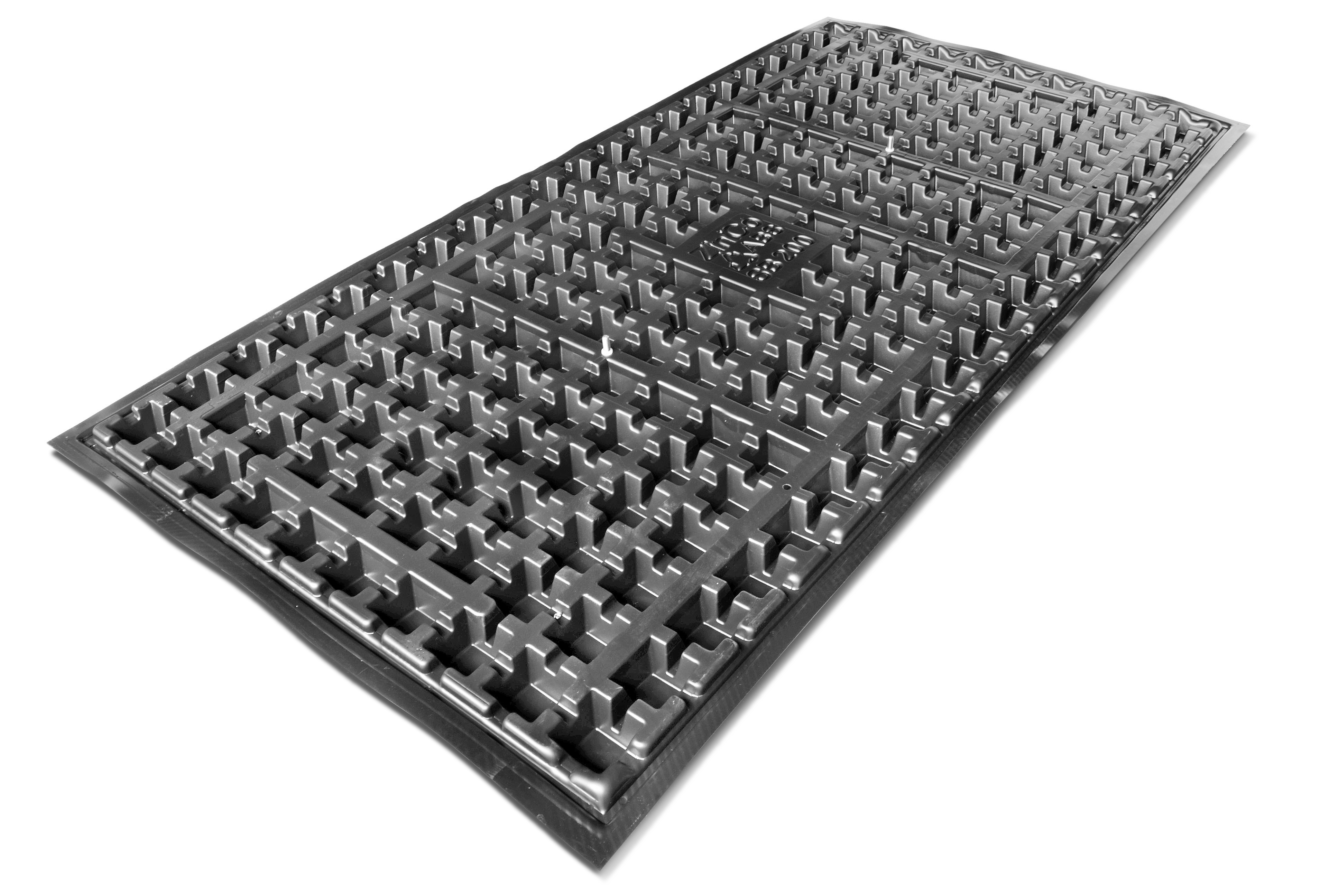

Zinco Solar Base SB 200-Q, for crosswise installation
The perfect mounting substrate for photovoltaic and thermal solar power plants on flat roofs with a maximum roof slope of 5°.
approx. 1.0 x 2.0 m, height approx. 43 mm, made of profiled ABS plastic with rubberised underside reinforcement profiles made of aluminium, with water storage and backfill troughs, backfill volume: approx. 16 l/sqm, total weight: approx. 6.5 kg, stainless steel connection material thread M 10
| Order Nr.: | 3463 |
|---|---|
| Colour: | black |
| Length [m]: | 2,0 |
| Material: | Recycled hard plastic (ABS) |
| Width [m]: | 1,0 |
| Height [mm]: | 43,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 7,0 |
| Pressure [kN/m²]: | 250.0 (with 10% yield) |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 1,6 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 2,4 |
| Water runoff at sheet level at 3% gradient / incline [l/(s-m)]: | 3,0 |
| Backfill volume [l/m²]: | 16,0 |
| Compatible with bitumen: | Yes |
| UV-stabilized / protected against UV light: | Yes |
| Additional information: | Counter and stiffening profiles made of aluminium |
made of ABS plastic, dimensions approx. 100 x 200 cm, height approx. 43 mm, weight approx. 7 kg, with water storage and backfill troughs (backfill volume approx. 16 l/m²) and multi-directional channel system on the underside, tested according to DIN EN ISO 12958, incl. integrated counter and stiffening profiles made of aluminium and structurally tested fastening option for Solar Base Frame in transverse mounting, deliver and install on protective mat or continuous drainage layer according to manufacturer's instructions.
The entire surface of the Solar Base SB 200 must always be covered with bulk material in accordance with the required Superimposed / extra load.
Product: Zinco Solar Base SB 200-Q
Unit: pcs
Order Nr.: 3463
Installation SB 200-Q:

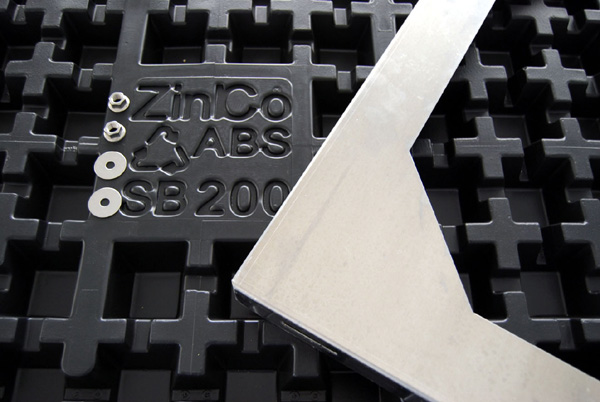

Scope of delivery per unit:
1 pc. Zinco Solar Base SB 200-Q for transverse mounting
2 pcs. hexagonal nuts M10 with flange, A2, DIN 6923, wrench size 15 mm
2 pcs. Stainless steel washers
1 pc. Zinco Solar base frame SGR
Tools required
Socket wrench SW 15
Torque wrench 20 Nm
.jpg)
Installation steps:
Lay out Solar Base SB 200-Q, with pre-assembled fixing points.
.jpg)

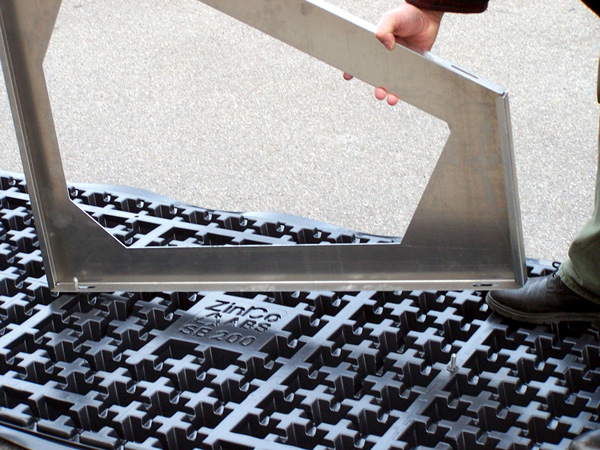

Attach the SGR Solar base frame.
.jpg)

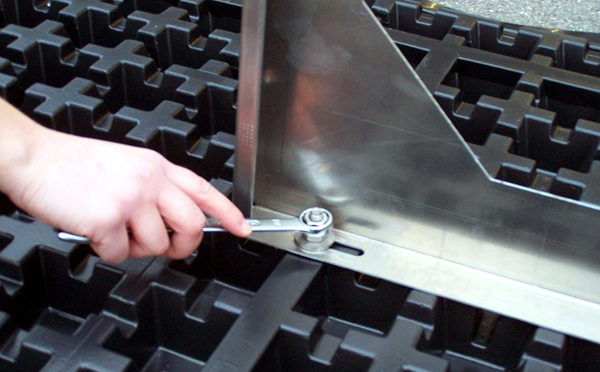

Hand-tighten the screws, tightening torque > 20 Nm.
Finished Solar Base SB 200-Q with Solar base frame SGR.
Notice:
- The material temperature should not be below +5 °C during installation.
- The entire surface of the Solar Base SB 200-Q must always be covered with bulk material corresponding to the required Superimposed / extra load.
- If the complete PV or thermal system is not installed immediately, the horizontal mounting profiles and wind bracing must be installed in any case.
- Due to the high dead load of thermal systems, wind bracing (WV5) must also be installed at the front.
- Always use a Stainless steel washer Ø inside/outside 10.5/20 mm when mounting horizontal profiles with M8 screws.
- No liability if the installation instructions are not followed.
Installation wind bracing:
Scope of delivery per unit:
1set of wind bracing consists of:
2 pcs. pre-drilled aluminum flat strip rods (riveted in the middle)
4 pcs. Round head screws M8 × 16, A2, DIN 603
4 hexagonal nuts M8, A2, DIN 93
4 pcs. Stainless steel washers, Ø inside/outside 10.5/20 mm
Tools required:
Socket wrench SW 13
When installing the wind bracing, the positions according to the installation plan must be observed (red crosses). For installation, the wind bracing is pulled apart and screwed to the back of the frame using the four carriage bolts. The carriage bolts are inserted from the inside through the slotted holes (once at the frame high point and once at the frame low point). The screws are tightened to 8 Nm (hand-tight).
This product is also available in other dimensions / measurements / specifications
The perfect mounting substrate for photovoltaic and thermal solar power plants on flat roofs with a maximum roof slope of 5°.
