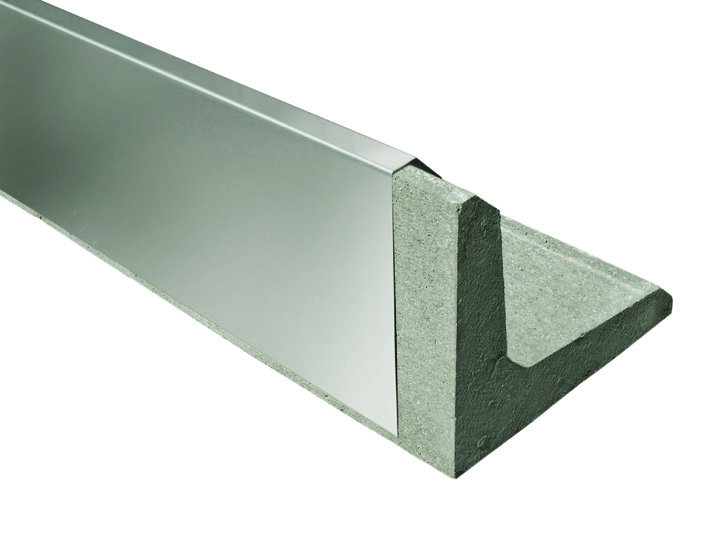

Zinco Stainless steel facing for Concrete Kerb, height 24 cm, length 2 m
Made of folded stainless steel sheet, foiled, incl. connector; approx. 24 cm in height, so can be used for both types of installation.
Order Nr.:
5035
Product information "Zinco Stainless steel facing for Concrete Kerb, height 24 cm, length 2 m"
Stainless steel profile removable plastic protection sheeting, can be used for 25 and 30 cm side lengths, with integrated butt joint connector, weight approx. 2.5 kg/m
| Order Nr.: | 5035 |
|---|---|
| Length [m]: | 2,0 |
| Material: | folded stainless steel sheet |
| Height [mm]: | 240,0 |
| Packaging unit: | Piece |
| Additional information: | Weight: 2.5 kg/m |
from position '.........' , height 24 cm, made of folded, foiled stainless steel
Stainless steel sheet with integrated butt joint connector, can be used for Zinco Concrete Kerbs, height 25 or 30 cm, supply and install.
Product: Zinco "Stainless steel facing for Concrete Kerb"
Unit: m
Order Nr.: 5035
These Installation Instructions describe the essential steps for using these products. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
The concrete angle blocks are set directly into concrete or mortar on the drainage element.
The concrete shaped kerbs are usable on both sides, so it is up to you to decide how to set them up.
The inside and outside corners, each consisting of two 45° angles, are not usable on both sides, but must be ordered for the corresponding height; they are also set directly into concrete or mortar on the drainage element.
The stainless steel cover is suitable for both types of installation and is simply pushed onto the concrete angle blocks from above. The stainless steel cover can be cut to size using a standard angle grinder with a metal disk. Beware of flying sparks when cutting (fire hazard, risk of injury, etc.). It is also important that the sharp edges are deburred after cutting.
The concrete angle blocks are set directly into concrete or mortar on the drainage element.
The concrete shaped kerbs are usable on both sides, so it is up to you to decide how to set them up.
The inside and outside corners, each consisting of two 45° angles, are not usable on both sides, but must be ordered for the corresponding height; they are also set directly into concrete or mortar on the drainage element.
The stainless steel cover is suitable for both types of installation and is simply pushed onto the concrete angle blocks from above. The stainless steel cover can be cut to size using a standard angle grinder with a metal disk. Beware of flying sparks when cutting (fire hazard, risk of injury, etc.). It is also important that the sharp edges are deburred after cutting.
This product is accessories from
Made of folded stainless steel sheet, foiled, incl. connector; approx. 24 cm in height, so can be used for both types of installation.
Zinco Concrete Kerb, leg length approx. 25 x 30 cm
Concrete corner stone for edging planting areas, defining / bordering pavements and patios or forming planters, etc.; contains 80 % sand from concrete processing.
Concrete corner stone for edging planting areas, defining / bordering pavements and patios or forming planters, etc.; contains 80 % sand from concrete processing.
