Zinco Terrace grill TR-H 40 x 40-E, Stainless steel, slotted holes, HV 65-95
Sturdy gratings made of galvanized steel for installation over a terrace drain
Outer dimensions of the chamber approx. 40 x 40 cm, aperture dimensions approx. 34 x 34 cm, Stainless steel channel body with lateral slots (approx. 39 x 8 mm), BTR channel look, gravel trap frame made of stainless steel with slotted holes.
| Order Nr.: | 4474 |
|---|---|
| Material: | Cover: Stainless steel, Gravel trap frame: Stainless steel |
| Height [mm]: | 65,0 |
| Packaging unit: | Piece |
| Outer dimension of frame [mm]: | 400 x 400 |
| Aperture dimension [mm]: | 340 x 340 |
| Additional info: | with slotted holes (approx. 39 x 8 mm) in BTR channel look; adjustment range approx. 65-95 mm |
made of Stainless steel with slotted holes (approx. 39 x 8 mm) in BTR channel look, height 6.5 cm, outer dimensions approx. 40 x 40 cm, aperture dimensions approx. 34 x 34 cm, vertically adjustable from approx. 65 to 95 mm, load bearing capacity: Class K in accordance with DIN 19599, with slotted gravel trap frame made of Stainless steel, supply and install on solid ground above the outlet.
Product: Zinco Terrace grill "TR-H 40 x 40 Stainless steel"
Unit: pcs
Order Nr.: 4474
The Terrace grill TR-H must be installed on the protective layer above the terrace drainage system, the coarse height adjustment is made by selecting the appropriate gravel stop frame. After completion of the decking surface, the height is fine-adjusted from above using a screwdriver. It is not necessary to remove the grate.

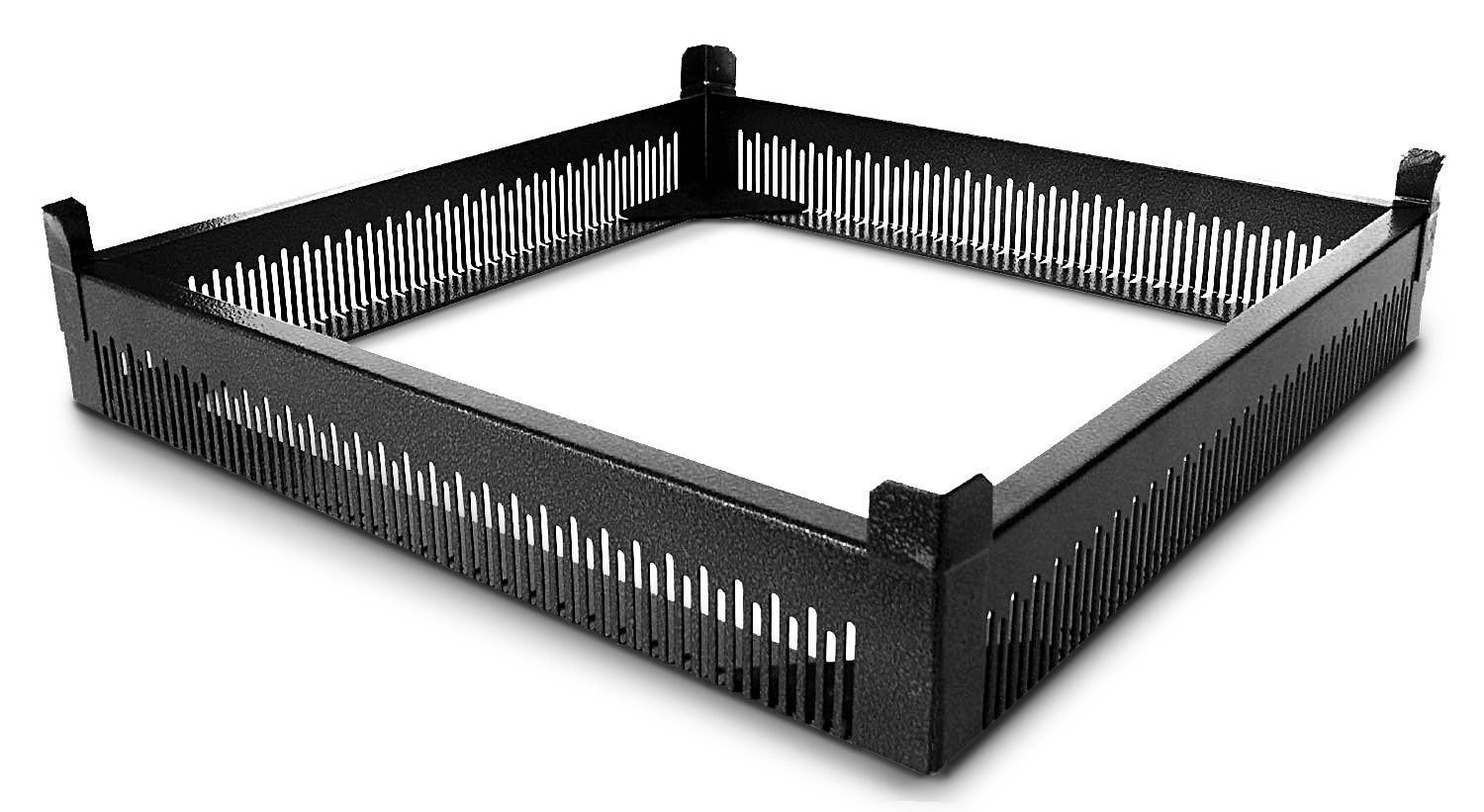

Installation of extension piece for TR-H (Order No. 4412)
Extension pieces (Order No. 4412) are used to adjust to the desired height. These are placed under the Terrace grill on the protective layer. A maximum of three extension pieces are possible. The Terrace grill is placed on the last extension piece. After completion of the decking surface, the height is fine-adjusted from above using a screwdriver. It is not necessary to remove the grating.
1.2 Chippings bedding, low-lime, 30-50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion downwards)
1.4 Protection Mat / Moisture Retention SSM 45
1.5 Suitable roof construction with root resistant waterproofing
2.1 Terrace grill TR-H 40 x 40 - 65
2.2 Extension piece for TR-H 40 x 40 - 65
3.1 Roof outlet
