Zinco Turbobag, flexible bulk container, tarpaulin size 5 x 5 m
Flexible bulk container for free flowing bulk materials up to 32 mm grain size and max. 5,000 kg filling weight.
Order Nr.:
15035
Product information "Zinco Turbobag, flexible bulk container, tarpaulin size 5 x 5 m"
with lockable and regulating outlet hose, for free flowing bulk materials up to grain size 0 - 32 mm, length of outlet hose: 3.5 m, bulk material capacity max. 5000 kg, dead load: approx. 60 kg, transport measures: approx. 40 x 70 x 130 cm
| Order Nr.: | 15035 |
|---|---|
| Length [m]: | 5,0 |
| Width [m]: | 5,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 60,0 |
| UV-stabilized / protected against UV light: | yes |
| Additional information: | Bulk material capacity: up to 5,000 kg; outlet hose length: approx. 3.5 m; transport measures: approx. 400 x 700 x 1,300 mm; for particle sizes up to 32 mm |
Scope of Delivery:
1 Zinco Turbobag® (without accessories)
Additionally, a suitable Quad Leg Bridle Sling is recommended (4 slings made of polyester for 8-point load suspension)
Preliminary Remark:
These installation instructions describe the filling of the Zinco Turbobag® by means of a wheel loader only. Of course, it can also be filled differently (by truck, manually, etc.)
Instructions:
Storage Instructions:
Filling of the Zinco Turbobag®:
1 Zinco Turbobag® (without accessories)
Additionally, a suitable Quad Leg Bridle Sling is recommended (4 slings made of polyester for 8-point load suspension)
Preliminary Remark:
These installation instructions describe the filling of the Zinco Turbobag® by means of a wheel loader only. Of course, it can also be filled differently (by truck, manually, etc.)
Instructions:
- On uneven undergrounds, laying of a protection mat (adapted to the size of the Turbobag®-tarp) to protect the tarp against sharp-edged items is recommended.
- Close the safety locking devices at the outlet trunk of the Turbobag®, re-check to ensure that they are locked correctly.
- Spread the Zinco Turbobag®-tarp evenly on the floor with the lettered side facing downwards.
- Start filling the Turbobag® with the wheel loader (place max. 5 tons of bulk material in the middle of the tarp).
- Avoid driving over the tarp as this could lead to material crack/failure.
- In the meantime fix the quad leg bridle sling to the crane.
- After filling, fix the slings of the quad leg bridle sling to the loops of the Turbobag®-tarp (2 slings per loop).

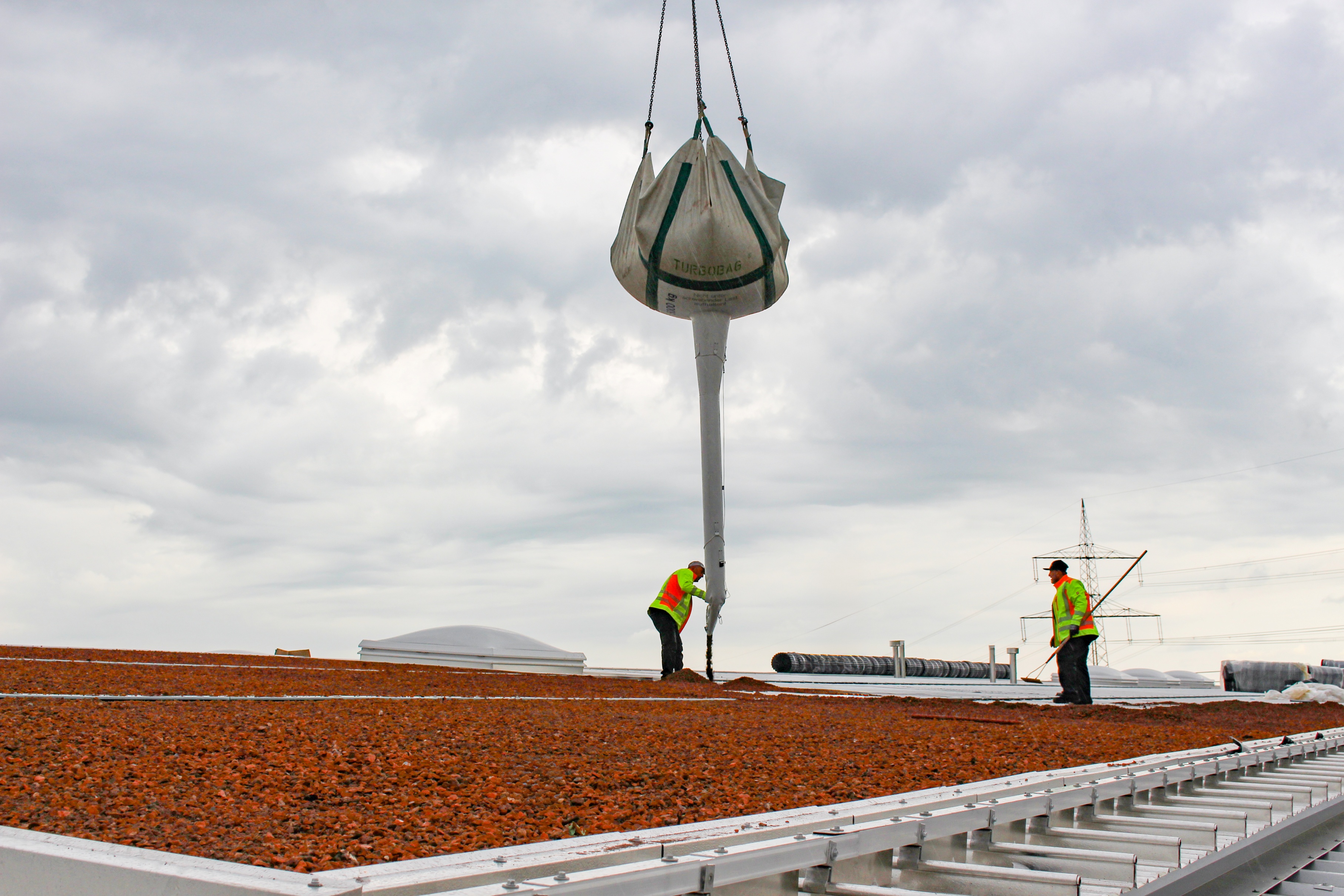

- Lift the Turbobag® with the crane and swing it carefully to the site of installation.
PLEASE NOTE: It is strictly forbidden to stay under the suspended load. - Open the safety locking devices from bottom to top. Open the top safety locking device carefully to allow the bulk material to flow out evenly.
- Refill the empty Turbobag® in the same manner as described above.
Storage Instructions:
- Clean and fold up the Zinco Turbobag® after use.
- Store the Zinco Turbobag® in a dry place.
- Do not expose the Zinco Turbobag® to a constant UV-radiation (e.g. sunlight).
- In case of damage or excessive wear of Turbobag® it must be repaired or regenerated prior to reuse.
Filling of the Zinco Turbobag®:
