Zinco adapter profile for SGR length 70 cm, made of aluminium

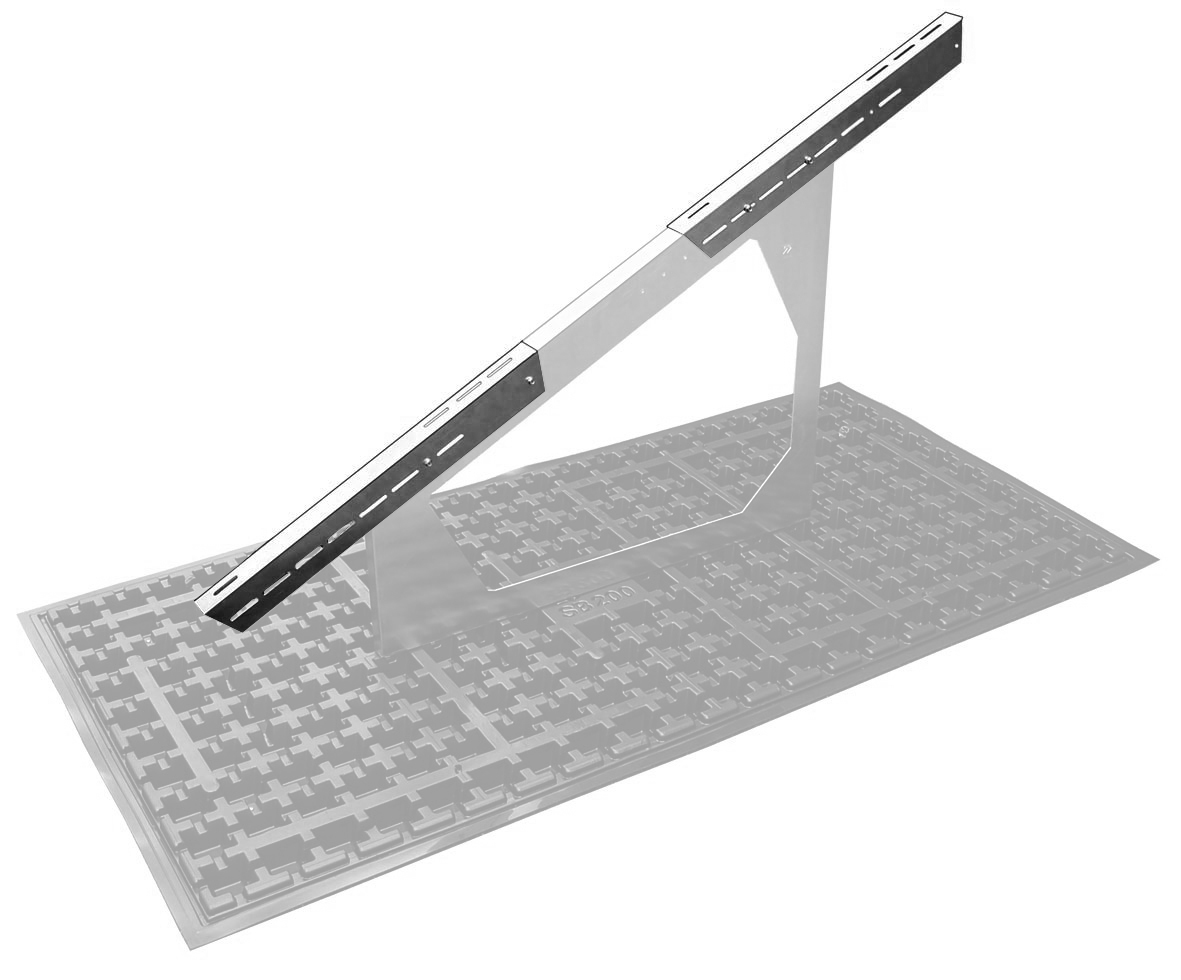

Adapter profile made from one piece, which enables particularly large modules to be mounted on the ZinCo Solar base frame SGR. Up to two adapter profiles can be attached per SGR (one at the top and one at the bottom).
Order Nr.:
9706
Product information "Zinco adapter profile for SGR length 70 cm, made of aluminium"
with pre-punched slotted holes, for extending the SGR 35/90 Solar Base Frame on the underside and/or top, incl. 2 M6 screws and 2 M6 locknuts
| Order Nr.: | 9706 |
|---|---|
| Colour: | Aluminium nature |
| Material: | Aluminium |
| Length [mm]: | 700,0 |
| Packaging unit: | Piece |
| Weight [g]: | 500,0 |
made of aluminum, manufactured from one piece, to increase the spacing of the module support profiles and screw fixing to the Zinco Solar base frame SGR.
Length approx. 700 mm, for rubberised underside and/or top side extension of the Solar base frame SGR.
Product: Zinco adapter profile for Solar base frame SGR
Unit: pcs
Order Nr.: 9706
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, particularly occupational safety regulations.
The adapter profiles are secured to the Solar Base Frame with at least two screws per profile. The support area of the adapter profiles on the Base Frame must be at least 250 mm; thus, the adapter profile protrudes a maximum of 450 mm beyond the Base Frame.
Maximum rail spacing when using two adapter profiles per frame:
SGR 25 = 1.86 m / center-to-center
SGR 30 = 1.91 m / center-to-center
SGR 45 = 2.16 m / center-to-center
The adapter profiles are secured to the Solar Base Frame with at least two screws per profile. The support area of the adapter profiles on the Base Frame must be at least 250 mm; thus, the adapter profile protrudes a maximum of 450 mm beyond the Base Frame.
Maximum rail spacing when using two adapter profiles per frame:
SGR 25 = 1.86 m / center-to-center
SGR 30 = 1.91 m / center-to-center
SGR 45 = 2.16 m / center-to-center
