Zinco connector for Protectodrain PD 250 2-hole rubber connector, pack of 200 pcs
Connector for the Protectodrain PD 250 drainage panel.
Order Nr.:
3251
Product information "Zinco connector for Protectodrain PD 250 2-hole rubber connector, pack of 200 pcs"
| Order Nr.: | 3251 |
|---|---|
| Colour: | black |
| Material: | Rubber |
| Weight [g]: | approx. 2.4 kg/pack |
| Additional information: | Pack of 200 pieces; 1 connector per running meter |
made of rubber 2-hole connector, for connecting the PD 250 elements by plugging onto the "mushroom-shaped" studs of adjacent elements, requirement 1 piece per running meter, supply and install according to manufacturer's instructions.
Product: ZincoProtectodrain® PD 250 connector
Unit: m²
Order Nr.: 3251
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Installation:
Protectodrain® slabs must always be laid with the studs facing upwards. The slabs must be aligned so that one side of the board without a seam always rests on one side of the board with a seam.
If the Protectodrain® boards are to be driven over, e.g. to apply the System Substrate / Substrate Soil / Growing Medium, it is advisable to secure them against slipping beforehand with two connectors per joint. Special connectors are available for this purpose, which can be attached to the "mushroom-shaped" edge studs of adjacent elements. We recommend one connector per running meter.
The drainage slabs must be covered immediately after installation (UV protection!).
A vibrating plate can be used to compact the gravel, but it must be taken into account that the work is being carried out on a roof surface. Select the vibratory plate accordingly so that the vibrations of the ceiling slab are not too great.
Foundations/back supports are constructed on the Filter Sheet.
Cutting:
The drainage slabs can be cut using a standard angle grinder, a cutter knife (with a hard blade) or a hot wire. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
Above roof outlets, the drainage boards must be cut to the size of the opening of the Inspection Chamber to be installed above.
Installation:
Protectodrain® slabs must always be laid with the studs facing upwards. The slabs must be aligned so that one side of the board without a seam always rests on one side of the board with a seam.
If the Protectodrain® boards are to be driven over, e.g. to apply the System Substrate / Substrate Soil / Growing Medium, it is advisable to secure them against slipping beforehand with two connectors per joint. Special connectors are available for this purpose, which can be attached to the "mushroom-shaped" edge studs of adjacent elements. We recommend one connector per running meter.
The drainage slabs must be covered immediately after installation (UV protection!).
A vibrating plate can be used to compact the gravel, but it must be taken into account that the work is being carried out on a roof surface. Select the vibratory plate accordingly so that the vibrations of the ceiling slab are not too great.
Foundations/back supports are constructed on the Filter Sheet.
Cutting:
The drainage slabs can be cut using a standard angle grinder, a cutter knife (with a hard blade) or a hot wire. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
Above roof outlets, the drainage boards must be cut to the size of the opening of the Inspection Chamber to be installed above.
This product is accessories from
Connector for the Protectodrain PD 250 drainage panel.

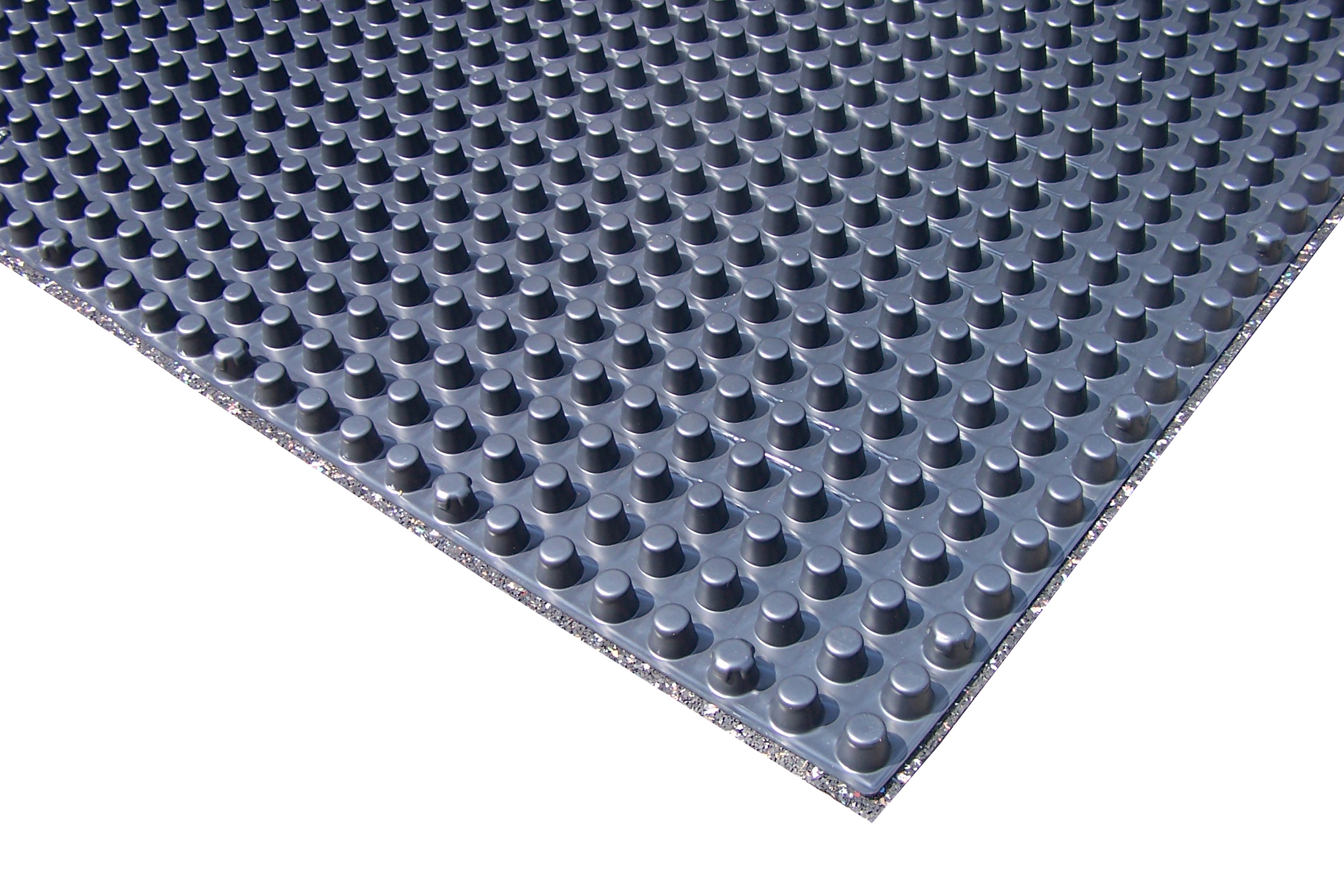

Zinco Protectodrain PD 250 Board approx. 1 x 2 m, H = approx. 25 mm
