Zinco end piece for FRA 75/150 Set of 2 pieces
Order Nr.:
4730
Product information "Zinco end piece for FRA 75/150 Set of 2 pieces"

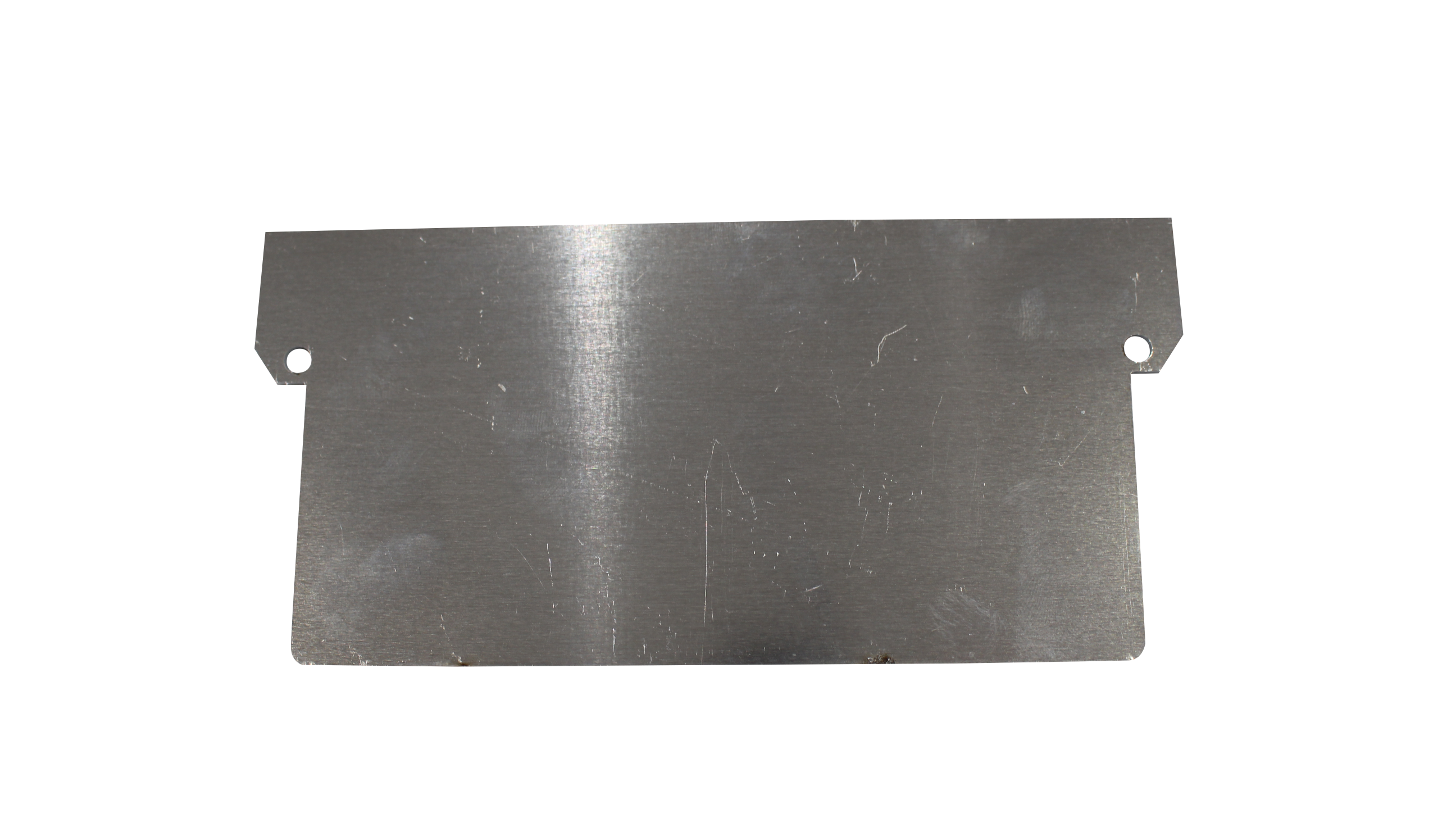

End piece made of aluminium for fitting onto the Drainage Channel FRA 75, with plastic plug for inserting into the groove of the gutter / trench drain.
| Order Nr.: | 4730 |
|---|---|
| Packaging unit: | Set of 2 pieces |
This product is part of a system, the tender text can be found here:
/Zinco-Drainage Channel-FRA-75-150-1-H-75-mm-B-150-mm-L-1-m/4728
/Zinco-Drainage Channel-FRA-75-150-1-H-75-mm-B-150-mm-L-1-m/4728
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, particularly occupational safety regulations.
The front wall and patio channels must be installed at the correct height, in accordance with the slope of the surface, on the installation layer or the chippings bed. For all front wall and patio channels, Eleringe and Pedestals Elefeet may alternatively be used as supports. The gutter sections must be placed tightly together and connected using the connectors by inserting and bending the strips into the slots. If necessary, cut the gutter sections and metal grates to length using a cut-off saw and deburr them. The cut edges of the galvanized steel metal grate must be re-galvanized using suitable products. Corner joints are formed using Corner 90° pieces. The metal grids are placed in position, and the end pieces are inserted at the ends of the gutters / trench drains using the plastic plugs designed to fit into the grooves of the gutters / trench drains.
1.1 Concrete or natural stone slabs, d ≥ 40 mm
1.2 Chippings bedding, low-lime, 30–50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion at the bottom)
1.4 SSM 45 Protection Mat / Moisture Retention
1.5 Suitable roof construction with root resistant waterproofing
2.1 AP 150 Clamping and Protection Profile
2.2 FRA 75/150 Drainage Channel
The front wall and patio channels must be installed at the correct height, in accordance with the slope of the surface, on the installation layer or the chippings bed. For all front wall and patio channels, Eleringe and Pedestals Elefeet may alternatively be used as supports. The gutter sections must be placed tightly together and connected using the connectors by inserting and bending the strips into the slots. If necessary, cut the gutter sections and metal grates to length using a cut-off saw and deburr them. The cut edges of the galvanized steel metal grate must be re-galvanized using suitable products. Corner joints are formed using Corner 90° pieces. The metal grids are placed in position, and the end pieces are inserted at the ends of the gutters / trench drains using the plastic plugs designed to fit into the grooves of the gutters / trench drains.
1.1 Concrete or natural stone slabs, d ≥ 40 mm
1.2 Chippings bedding, low-lime, 30–50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion at the bottom)
1.4 SSM 45 Protection Mat / Moisture Retention
1.5 Suitable roof construction with root resistant waterproofing
2.1 AP 150 Clamping and Protection Profile
2.2 FRA 75/150 Drainage Channel
This product is accessories from

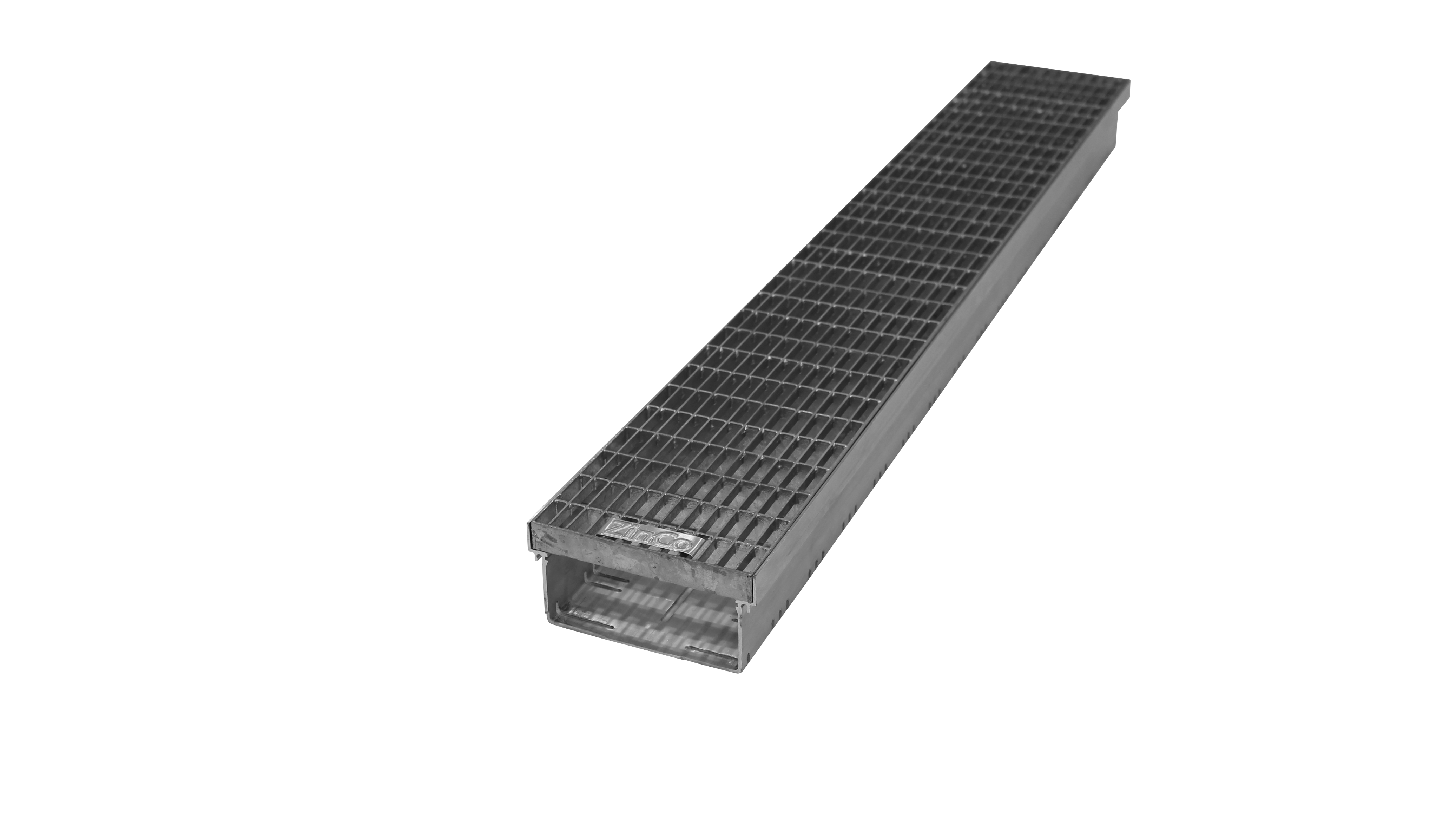

Zinco Drainage Channel FRA 75/150-2 H: 75 mm, W: 150 mm, L: 2 m
