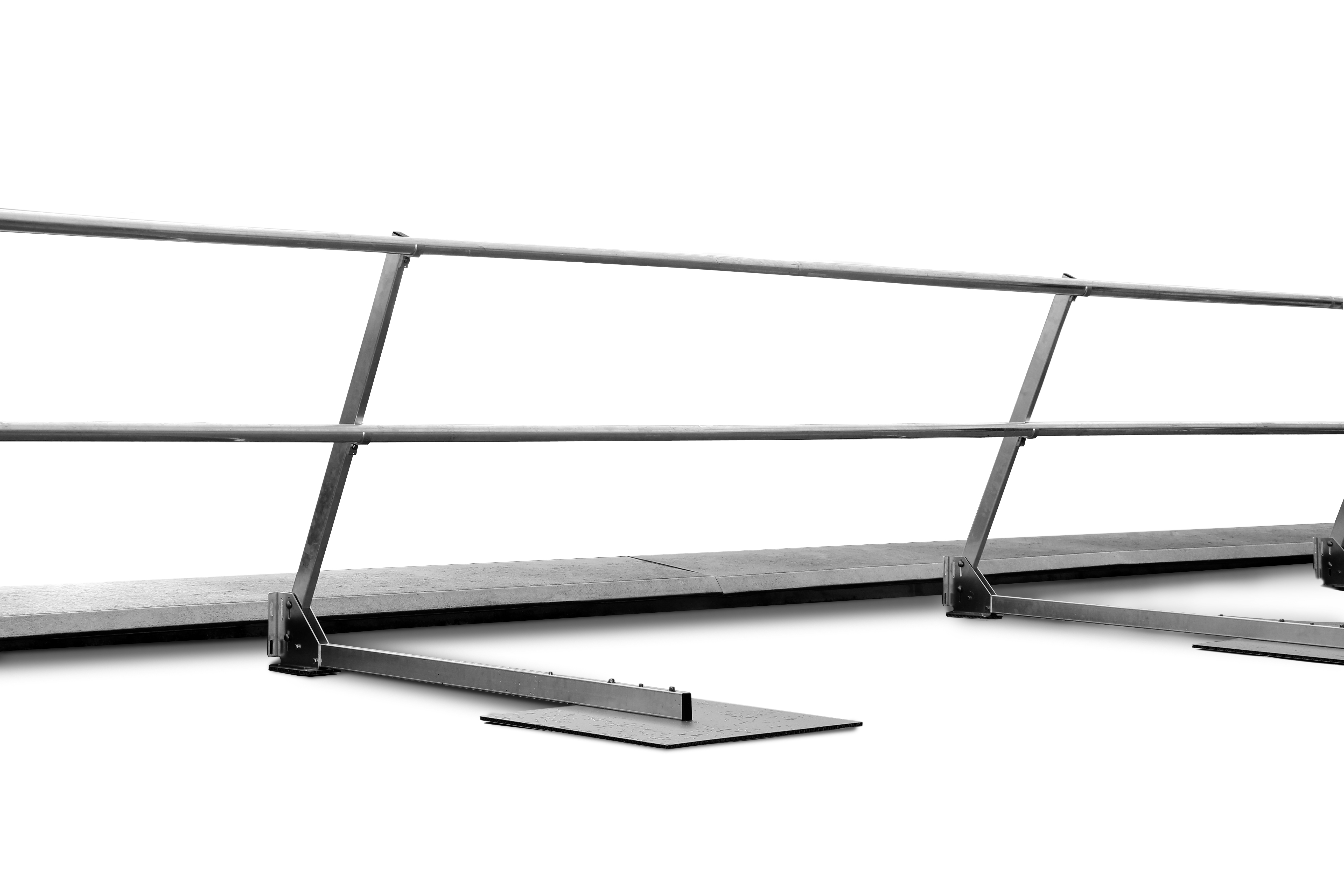

Zinco post module with load-bearing plate Board for Fallnet ASG Maintenance Guardrail
Superimposed / extra load Maintenance Guardrail to EN 13374 Class A for temporary work on extensive planting on flat roofs with fascia / attic / roof parapet.
Side protection system in accordance with DIN EN 13374 class A as collective protection for maintenance work on extensive planting flat roofs with fascia / attic / roof parapet up to 5° roof slope. Dimensions / measurements approx. 1.75 x 1.2 x 0.6 m (L x H x W), inclination 90° or 67.5°, post module made of aluminium, load-bearing board made of HDPE, stainless steel connection material M 8 thread, weight approx. 4.1 kg. When ordering, please state the total length of the Maintenance Guardrail, the number of ASG post modules required and the number of inside and outside corners. Please follow the Installation Instructions.
| Order Nr.: | 3480 |
|---|---|
| Length [m]: | 1,75 |
| Material: | Posts, brackets and gusset plates: aluminium, load-bearing slabs: HDPE |
| Width [m]: | 0,6 |
| Height [mm]: | 1200 |
| Packaging unit: | Piece |
| Weight [kg]: | 4,1 |
| Compatible with bitumen: | yes |
Superimposed / extra load side protection system in accordance with DIN EN 13374 Class A, supplied as roof penetration-free, collective fall protection during maintenance work on the flat roof and installed along the fascia / roof parapet in accordance with the manufacturer's specifications. Material aluminium, spacing of the post modules max. 2.60 m,
The Superimposed / extra load is at least 80 kg/m² rootable greening substrate (dry weight).
If the distance from the top of the fascia / attic to the midrail is > 47 cm, a toe board (Order No. 9886) with retaining profile (Order No. 9887) can be installed.
Installation of the posts vertically or with 67.5° inclination.
Make: ZincoFallnet® ASG
Unit: pcs
Order Nr.: 3480
Download - Fallnet ASG
This product is also available in other dimensions / measurements / specifications
