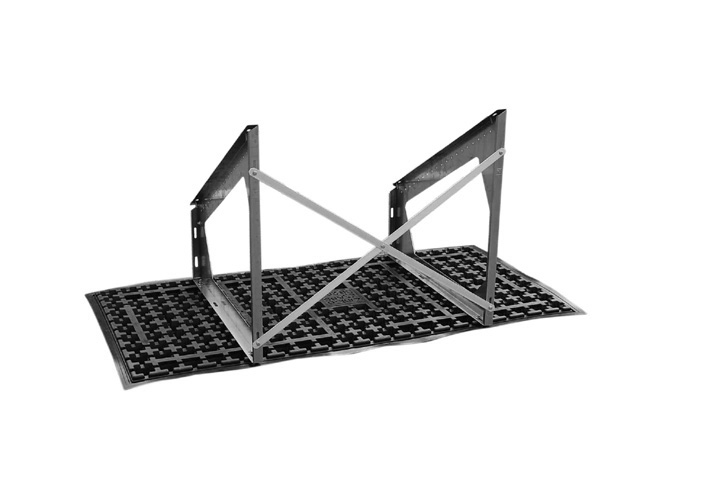

Zinco wind bracing WV 15/20 length 116 cm
A wind bracing WV consists of two pre-drilled aluminium flat profiles, for cross bracing of two Solar base frames (1 m apart); incl. Stainless steel fastening devices.
Order Nr.:
971015
Product information "Zinco wind bracing WV 15/20 length 116 cm"
| Order Nr.: | 971015 |
|---|---|
| Colour: | Aluminium nature |
| Material: | Aluminium |
| Length [mm]: | 1160 |
| Width [mm]: | 30 |
| Thickness [mm]: | 3,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 0,72 |
| Additional information: | suitable for SGR 15 and SGR 20 |
Length 116 cm, consisting of two pre-drilled aluminum profiles for 1 m frame spacing, suitable for Solar Base Frame SGR 15 and SGR 20, incl. Fastening devices made of Stainless steel, deliver and install according to manufacturer's instructions.
Product: Zinco "Wind bracing WV 15/20"
Order Nr.: 971015
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Installation of Wind Bracing:
Scope of delivery per unit:
1 set of wind bracing consists of:
2 pcs. pre-drilled aluminium flat strip rods (riveted in the middle)
4 pcs. Round-head screws M8 × 16, A2, DIN 603
4 pcs. hexagonal nuts M8, A2, DIN 93
4 pcs. Stainless steel washers, Ø inside/outside 10.5/20 mm
Tools required:
Socket wrench SW 13
.jpg)
Two Solar base frames SGR ...
.jpg)
... with wind bracing
When installing the wind bracing, the positions according to the installation plan must be observed (red crosses). For installation, the wind bracing is pulled apart and screwed to the back of the frame using the four carriage bolts. The carriage bolts are inserted from the inside through the slotted holes (once at the frame high point and once at the frame low point). The screws are tightened to 8 Nm (hand-tight).
Installation of Wind Bracing:
Scope of delivery per unit:
1 set of wind bracing consists of:
2 pcs. pre-drilled aluminium flat strip rods (riveted in the middle)
4 pcs. Round-head screws M8 × 16, A2, DIN 603
4 pcs. hexagonal nuts M8, A2, DIN 93
4 pcs. Stainless steel washers, Ø inside/outside 10.5/20 mm
Tools required:
Socket wrench SW 13
Two Solar base frames SGR ...
... with wind bracing
When installing the wind bracing, the positions according to the installation plan must be observed (red crosses). For installation, the wind bracing is pulled apart and screwed to the back of the frame using the four carriage bolts. The carriage bolts are inserted from the inside through the slotted holes (once at the frame high point and once at the frame low point). The screws are tightened to 8 Nm (hand-tight).
