Zinco wind bracing WV 25/30 Length 125 cm
A wind bracing WV consists of two pre-drilled aluminium flat profiles, for cross bracing of two Solar base frames (1 m apart); incl. Stainless steel fastening devices.
| Order Nr.: | 971025 |
|---|---|
| Colour: | Natural aluminum |
| Material: | Aluminium |
| Length [mm]: | 1250 |
| Width [mm]: | 30 |
| Thickness [mm]: | 3,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 0,73 |
| Additional info: | suitable for SGR 25 and SGR 30 |
Length 125 cm, consisting of two pre-drilled aluminum profiles for 1 m frame spacing, suitable for Solar Base Frame SGR 25 and SGR 30, incl. Fastening devices made of Stainless steel, deliver and install according to manufacturer's instructions.
Product: Zinco "Wind bracing WV 25/30"
Order Nr.: 971025
Scope of delivery per unit:
1 set of wind bracing consists of:
- 2 pcs. pre-drilled aluminium flat strip rods (riveted in the middle)
- 4 pcs. Round-head screws M8 × 16, A2, DIN 603
- 4 hexagonal nuts M8, A2, DIN 93
- 5 pcs. Stainless steel washers, Ø inside/outside 10.5/20 mm
Tools required:
- Socket wrench SW 13

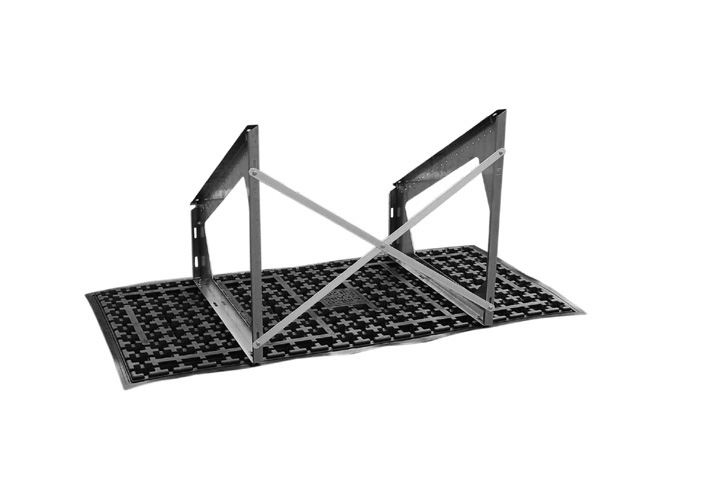

Two Solar base frames SGR ...
... with wind bracing
When installing the wind bracing, the positions according to the installation plan must be observed (red crosses). For installation, the wind bracing is pulled apart and screwed to the back of the frame using the four carriage bolts. The carriage bolts are inserted from the inside through the slotted holes (once at the frame high point and once at the frame low point). The screws are tightened to 8 Nm (hand-tight).
