Zinco Floradrain FD 25-R, roll 1 x 15 m, height approx. 25 mm

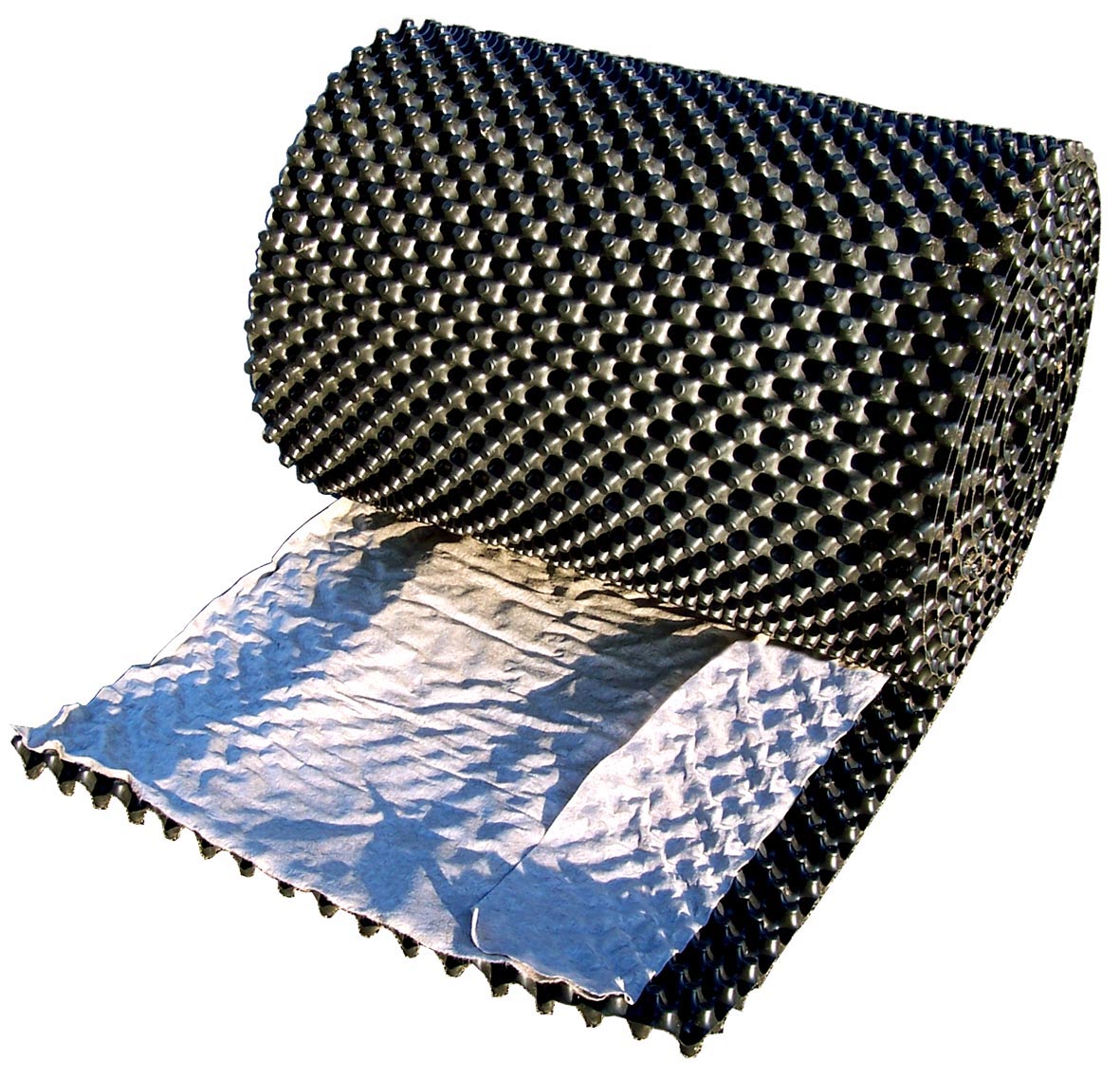

Drainage Mat resistant to compression and easy to lay, based on the proven Floradrain® elements, FD 25 also with Filter sheet.

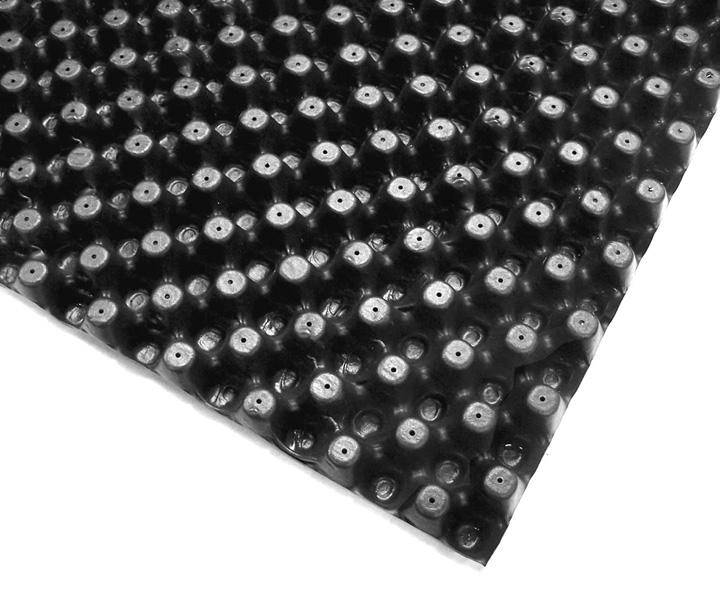

Drainage element made of thermoformed polyolefin (mainly PE), with water storage troughs, openings for diffusion and drainage channel system underside, bitumen resistant, compressive strength approx. 250 kN/sqm, filling volume approx. 10 l/sqm, Weight approx. 1.7 kg/sqm
| Order Nr.: | 3023 |
|---|---|
| Colour: | dark grey |
| Length [m]: | 15,0 |
| Material: | Polyolefin, mainly PE |
| Width [m]: | 1,0 |
| Height [mm]: | 25,0 |
| Packaging unit: | Role |
| Weight [kg/m²]: | 1,7 |
| Pressure [kN/m²]: | 250 (Max.) |
| Diameter of diffusion opening [mm]: | 2,0 |
| Water storage capacity [l/m²]: | 3,0 |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 0,59 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 0,85 |
| Water runoff at sheet level at 3% gradient / incline [l/(s-m)]: | 1,05 |
| Backfill volume [l/m²]: | 10,0 |
| Compatible with bitumen: | Yes |
made of thermoformed polyolefin (mainly PE), height 25 mm, bitumen resistant, with water storage troughs / cells, openings for diffusion and drainage channel system underside, compressive strength approx. 250 kN/m², filling volume approx. 10 l/m², Weight approx. 1.7 kg/m², water drainage capacity tested according to EN ISO 12958: with 1 % gradient - approx. 0.59 l/s*m, with 2 % gradient - approx. 0.85 l/s*m, with CE marking as a component of the "Kit for Green Roofs" according to ETA No. 13/0668, delivered in rolls and installed according to manufacturer's instructions.
Product: ZincoFloradrain® "FD 25-R"
Unit: m²
Order Nr.: 3023
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Installation should not be carried out if there is a risk of storms.
IMPORTANT: Rolls that have been standing in the sun can heat up differently, which can cause the freshly rolled out sheets to lie slightly curved. For this reason, leave the sheets for a short time before joining them together.
1
Laying:
The drainage rolls are laid loosely butted together or with one or two rows of studs overlapping. Rolls laid butt-jointed can also be connected with Connectors, which are pressed into the openings for diffusion (perforations in the studs).
Under Green Roofs, the drainage rolls are laid with the openings for diffusion facing upwards. When used under walkways, the openings for diffusion are directed downwards so that no water is stored.
After installation, the drainage roll sheets must be covered immediately (UV protection!) and secured against blowing away. If the actual Superimposed / extra load does not follow immediately, the latter can be done by filling with water for a short time.
2
Cutting:
The drainage roll sheets can be cut with a cutter knife (with a hard blade) or a hot wire. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
Above roof outlets, the drainage roll sheets must be cut to the size of the opening of the Inspection Chamber to be installed above.
This product is also available in other dimensions / measurements / specifications
