Zinco Floradrain FD 25-E, slabs 1 x 2 m, height approximately / approx. 25 mm
Resistant to compression, low drainage and water storage element made of RC polyolefin for use in extensive green roofs.
Drainage element made of thermoformed polyolefin (mainly PE), with water storage troughs, openings for diffusion and drainage channel system underside, bitumen resistant, compressive strength approx. 270 kN/m², filling volume approx. 10 l/m², Weight approx. 1.7 kg/m², as a component of a system structure with Environmental Product Declaration EPD and CE marking via ETA no. 13/0668 "Kit for Green Roofs".
| Order Nr.: | 3028 |
|---|---|
| Colour: | dark grey |
| Length [m]: | 2,0 |
| Material: | Polyolefin, mainly PE |
| Width [m]: | 1,0 |
| Height [mm]: | 25,0 |
| Packaging unit: | boards |
| Weight [kg/m²]: | 1,6 |
| Pressure [kN/m²]: | 270 (max.) |
| Diameter of diffusion opening [mm]: | 2,0 |
| Water storage capacity [l/m²]: | 3,0 |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 0,59 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 0,85 |
| Water runoff at sheet level at 3% gradient / incline [l/(s-m)]: | 1,05 |
| Backfill volume [l/m²]: | 10,0 |
| UV-stabilized / protected against UV light: | Yes |
made of thermoformed polyolefin (mainly PE), height 25 mm, bitumen resistant, with water storage troughs, openings for diffusion and drainage channel system underside, compressive strength approx. 270 kN/m², filling volume approx. 10 l/m², Weight approx. 1.6 kg/m², water drainage capacity tested according to EN ISO 12958: at 1 % gradient - approx. 0.59 l/s*m, at 2 % gradient - approx. 0.85 l/s*m, with CE marking as a component of the "Kit for Green Roofs" in accordance with ETA No. 13/0668 and Environmental Product Declaration EPD-ZIC-20200082-CCA1-EN, deliver and install according to manufacturer's instructions.
Product: ZinCo Floradrain® "FD 25-E"
Unit: m²
Order Nr.: 3028
This product is also available in other dimensions / measurements / specifications
Resistant to compression, low drainage and water storage element made of RC polyolefin for use in extensive green roofs.
Resistant to compression, low drainage and water storage element made of RC polyolefin for use in extensive green roofs.

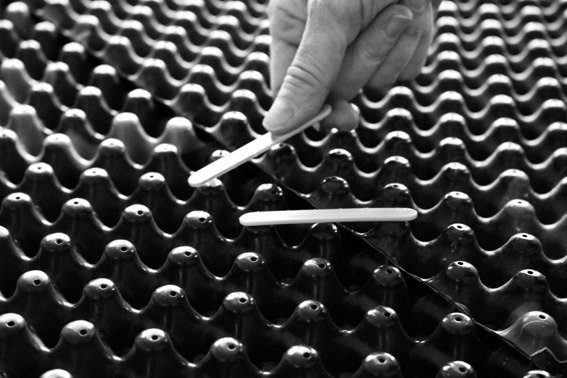

This product has accessories
