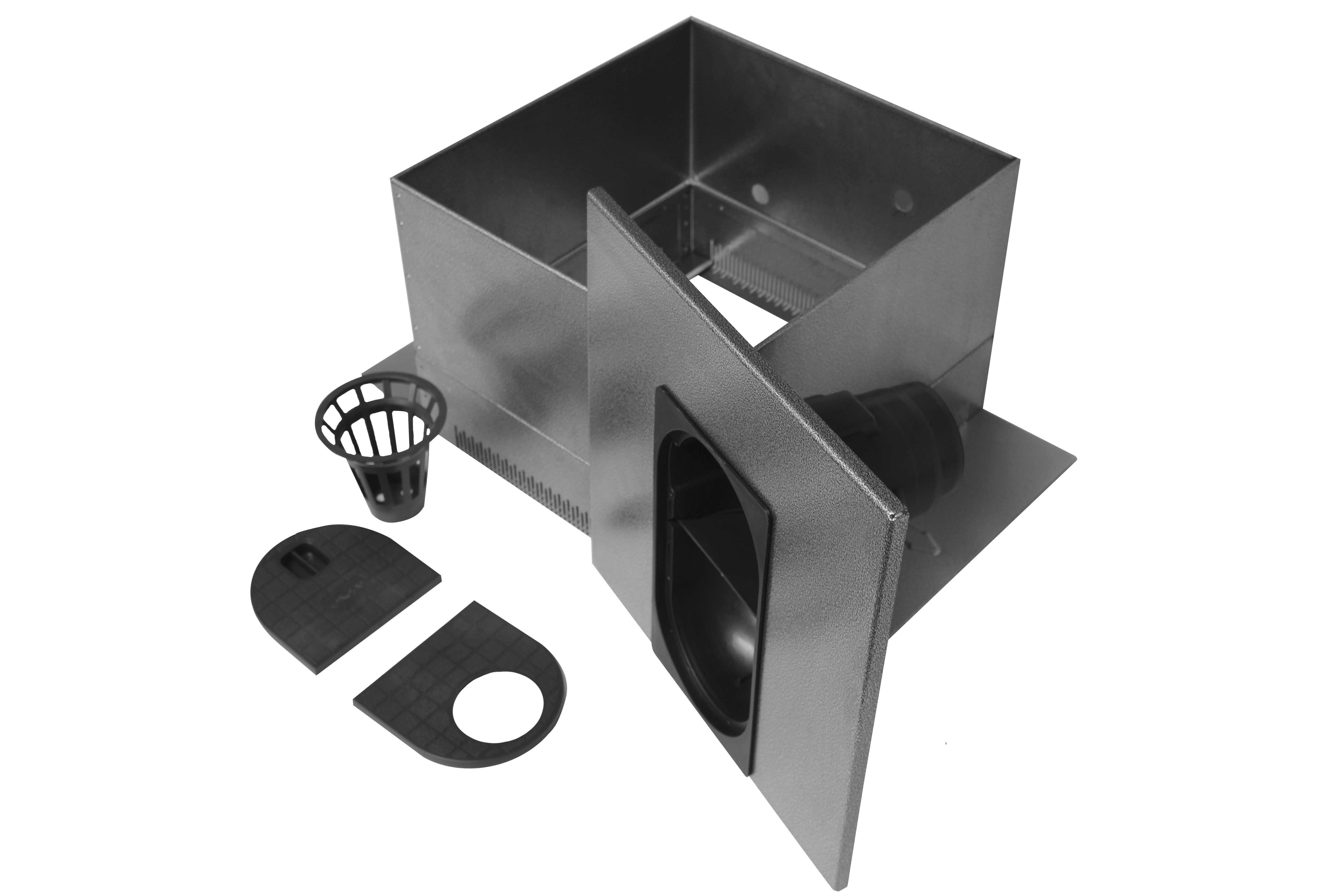

Zinco Kaskaden-Kontrollschacht KKS 30/40 zum Anschluss von Regenfallrohren

Zinco Cascade Inspection Chamber KKS 30/40 for connection of down pipes

Inspection Chamber for connection / connector of a downpipe for transferring run-off water from a higher roof area to the drainage or retention level of a lower roof area.

Order Nr.: 4032

This product has accessories: 4012

Product information "Zinco Cascade Inspection Chamber KKS 30/40 for connection of down pipes"

made of aluminium and galvanized steel, plastic-coated, with pull-out flange. Colour: antique antique silver. Built-in catch basin for connection / connector of various pipe diameters (DN 80, 90, 100, 110, 120, 125); incl. backflow flap, leafguard and maintenance access; weight approximately 7 kg; height 300 mm; outer dimension of the chamber: 400 x 400 mm; accessories: backflow flap KSA 10/40, art. no.: 4012

Properties table
Order Nr.:	4032
Colour:	antique silver antique
Material:	Aluminium, Galvanized steel, plastic-coated
Height [mm]:	300
Packaging unit:	Piece
Weight [kg]:	7,00
Outer dimension of the chamber [mm]:	400 x 400
Aperture dimension [mm]:	370 x 370
Flange [mm]:	400 x 630

made of aluminium and galvanized sheet steel, plastic-coated, with built-in catch basin for connection / connector of downpipes DN 80-120, with backflow flap and maintenance access, height 30 cm, outer dimension of the chamber approx. 40 x 40 cm, aperture dimension approx. 37 x 37 cm, Colour antique antique silver, with pull-out support flange on two opposite sides, all-round drainage slots, detachable cover, lid with two finger holes, into which the locking device can be installed if required, supply and install on the drainage elements.

Make: Zinco Cascade Inspection Chamber "KKS 30/40"

Unit: pcs

Order Nr.: 4032

These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations. Inspection Chambers protect the outlets from contamination and ensure easy access for inspection and maintenance.

Before installation, the flanges of the Cascade Inspection Chamber must be pulled out in the direction of the arrow until they click into place. A Cascade Inspection Chamber is then placed on each downpipe, usually directly on the drainage or retention element.

The backflow flap must be inserted into the recess provided so that it opens in the direction of the leafguard. It must remain closed in the direction of the downpipe. The manhole cover consists of two parts. The closed cover, lid is to be placed over the leafguard, the cover, lid with opening is to be placed in the area of the downpipe. The required connection diameter can be cut out along the pre-stamped line using a cutter knife.

This product has accessories

Inspection Chamber for connection / connector of a downpipe for transferring run-off water from a higher roof area to the drainage or retention level of a lower roof area.

Zinco extension piece KSA 10/40 Height 10 cm, for KS 10/40

Extension piece for KS 10/40.
