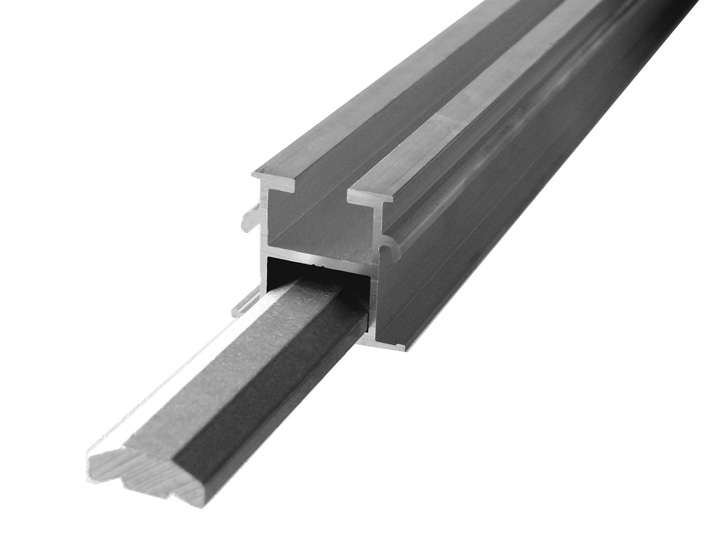

Zinco Connector for length compensation for SMP 38/33 and KP 40/40
Order Nr.:
9733
Product information "Zinco Connector for length compensation for SMP 38/33 and KP 40/40"
for rail lengths greater than 18 m. Aluminum, VA fasteners incl.
| Order Nr.: | 9733 |
|---|---|
| Material: | Aluminium |
| Packaging unit: | Piece |
| Additional information: | Length compensation connector incl. screwing agent |
This product is part of a system, the tender text can be found here:
/Zinco-Solar-Mounting-Profile-SMP-38-33-for-mounting-modules-collectors/9730
/Zinco-Solar-Mounting-Profile-SMP-38-33-for-mounting-modules-collectors/9730
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Table mounting gap
To allow for thermal linear expansion of the SMP, expansion joints with a width of 15 mm should be formed every 12 m from an SMP length of 20 m.
Slide the length compensation connector into the narrow side of the SMP. Only push the connector halfway and tighten the two screws firmly (6 Nm).
Slide the second profile onto the sticking out Connector (see table for mounting gap). The Length Compensation Connector is only bolted on one side.
| temperature | mounting gap |
| 0° | 16 mm |
| 10° | 12 mm |
| 20° | 9 mm |
| 30° | 5 mm |
This product is accessories from
Zinco SMP 38/33 Solar Mounting Profile for Installing Modules / Collectors
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
