Zinco Solar-Montageprofil SMP 38/33 zur Montage von Modulen / Kollektoren

Zinco SMP 38/33 Solar Mounting Profile for Installing Modules / Collectors

SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.

Order Nr.: 9730

This product has accessories: 9732, 9740, 9734, 9735, 9733, 9741, 9739

Product information "Zinco SMP 38/33 Solar Mounting Profile for Installing Modules / Collectors"

Made of natural aluminium AlMgSi 0.5, extrusion-finished, W x H = 38 x 33 mm, weight approx. 0.75 kg/m, length 6000 mm, suitable for positioning the system threaded inserts in any orientation, mounted to the substrate with M10 hammer-head screws, grade A2, required accessories: Profile Connector, Order-Nr.: 9735

Properties table
Order Nr.:	9730
Colour:	Aluminium nature
Material:	extruded aluminium AlMgSi 0.5
Length [mm]:	6000
Width [mm]:	38,0
Height [mm]:	33,0
Packaging unit:	Piece
Weight [kg]:	4,5
Additional information:	with top and rubberised underside profile channel

Delivery and installation of an aluminium mounting profile, colour: natural aluminium AlMgSi 0.5 press-blank, W x H 38 x 33 mm, weight approx. 0.75 kg/m, length 6,000 mm, including connectors and fasteners for mounting on the SGR solar base frame.

Brand: Zinco “Mounting Profile SMP 38/33” incl. connectors and fasteners

Unit: pcs

Order Nr.: 9730

These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.

Delivery per unit:
Zinco Solar Mounting Profile SMP
Fastening Set (50 pcs. each hammer-head bolt, locking nut)
Profile Connector (four-hole complete, made of 30 x 6 mm flat material) incl. 4 bolts, 4 locking nuts
Pre-assembled End Clamp (variable height 30 to 40 mm)
Pre-assembled Middle Clamp (variable height 30 to 40 mm)
Cross connector, incl. fasteners
Length Compensation Connector supplied incl. fasteners

Required tools:
A ratchet if available AF 15 and AF 13
Hexagon socket 6 mm
If necessary impact wrench with adjustable torque

Fasten Solar Mounting Profile to Solar Base Frame:

Hammer-head bolts and locking nuts M10 are required for fastening to the Solar Base Frame SGR.

9734_3

Push the hammer-head bolt through the Solar Base Frame. Slide the SMP onto the bolt and fasten it with the locking nut (Tightening torque 20 Nm). A ratchet is helpful here. Repeat this procedure at all positions. Slide the rail connector into the narrow side of the SMP. Make sure that the hammer-head bolts are inserted correctly into the Mounting Profile (the head should be rotated by 90° so that the hammer-head bolt is firmly anchored in the SMP).

Installation Profile Connector:

The joints of the Solar Mounting Profiles can be linked using Profile Connectors. Slide the Profile Connector into the narrow side of the SMP. Make sure that the hammer-head bolts are inserted correctly into the SMP.

Slide the other profile onto the sticking out Connector. Tighten all bolts (20 Nm).

Note:
- SMP can be cut with a sliding compound mitre saw and a suitable saw blade.
- Maximum distance of Solar Base Frames 1,95 m at 75 kg/m² snow load.
- SMP overhang above SGR between 400-450 mm.
- Maximum overhang of solar module (above) SGR 350 mm.

Installation End Clamp:

9740_2

Framed photovoltaic modules can be fixed to the SMP with the variable Middle and End Clamps. Two End Clamps are required for one module side. The End Clamp is fastened on the wide side of the SMP. Place the notch with the rubber on the edge of the profile and press forward until the Clamp engages.
9740_1

The photovoltaic module is slid under the Clamps, which are then slightly tightened. On the other side the Middle Clamps are then inserted into the SMP, see following steps.

Installation Middle Clamp:

Two Middle Clamps are required per module joint. The Middle Clamp is used for two adjoining PV modules. It is fastened on the wide side of the SMP. Place the notch with the rubber on the edge of the profile and press forward until the Clamp engages.
9739_1

Mount and align the solar modules. Tighten all bolts with 6 to 9 Nm.

Installation Cross Connector:

Place two solar mounting profiles at right angles to one another. Position the cross connector onto the rail from above. The screw on the cross connector must be inserted into the groove in the lower rail. At the same time, the retaining flange must engage with the upper rail. Then tighten the screw. Tightening torque: 20 Nm.

Installation Length Compensation Connector (optional):

9733_1

To allow for thermal linear expansion of the SMP, expansion joints with a width of 15 mm should be formed every 12 m from an SMP length of 20 m.
Slide the length compensation connector into the narrow side of the SMP. Only push the connector halfway and tighten the two screws firmly (6 Nm).

9733_2

Slide the second profile onto the sticking out Connector (see table for mounting gap). The Length Compensation Connector is only bolted on one side.

temperature	mounting gap
0°	16 mm
10°	12 mm
20°	9 mm
30°	5 mm

Table mounting gap

This product has accessories

Zinco Kreuzverbinder für SMP 38/33 und KP 40/40, inkl. Schraubmittel

SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.

Zinco cross connector for SMP 38/33 and KP 40/40, incl. screwing agent

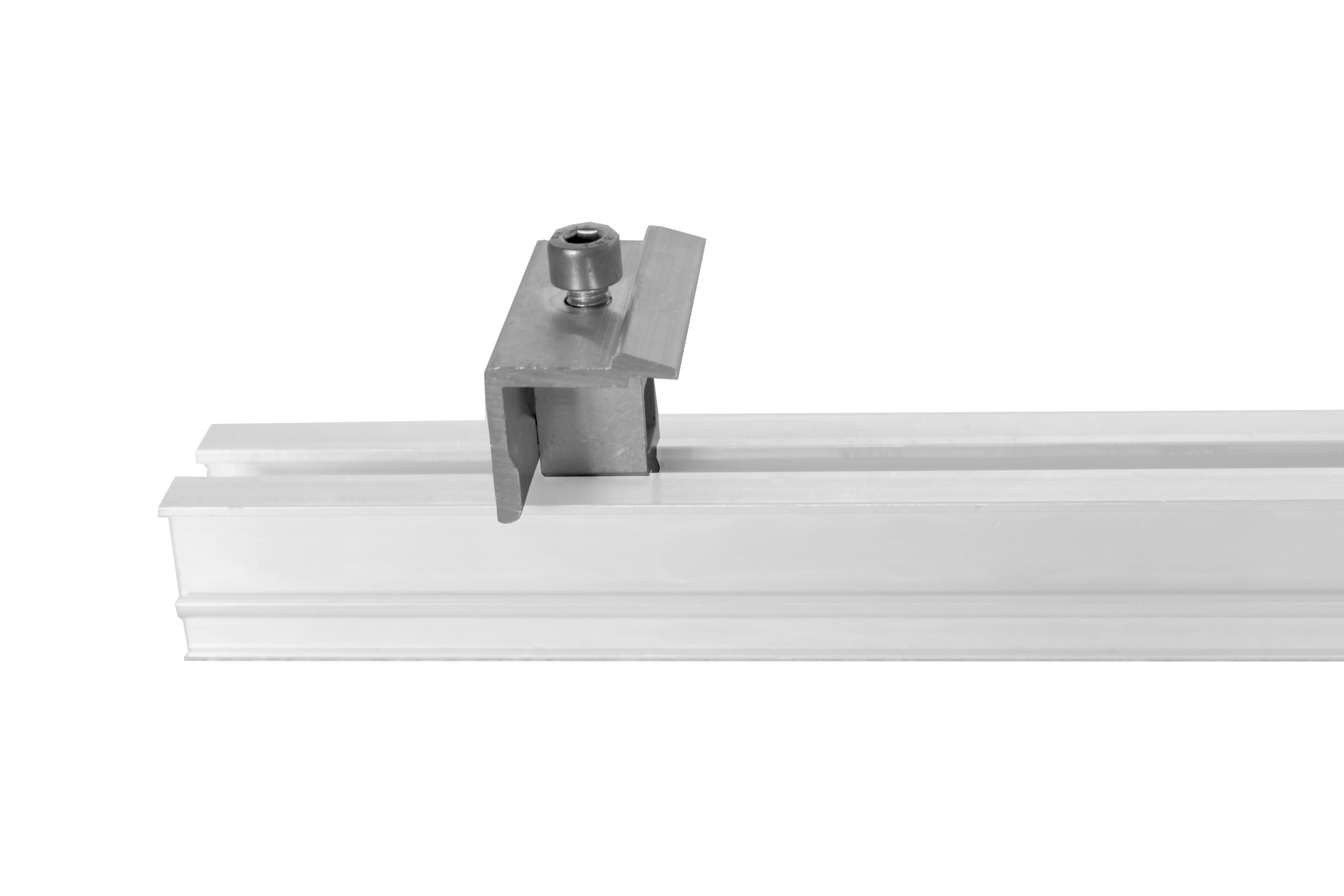

Zinco PV-Modul-Randklemme Alu natur für Modulrahmenhöhe von 30 mm bis 40 mm
