Zinco PV module end clamp aluminum natural for module frame height from 30 mm to 40 mm
Order Nr.:
9740
Product information "Zinco PV module end clamp aluminum natural for module frame height from 30 mm to 40 mm"

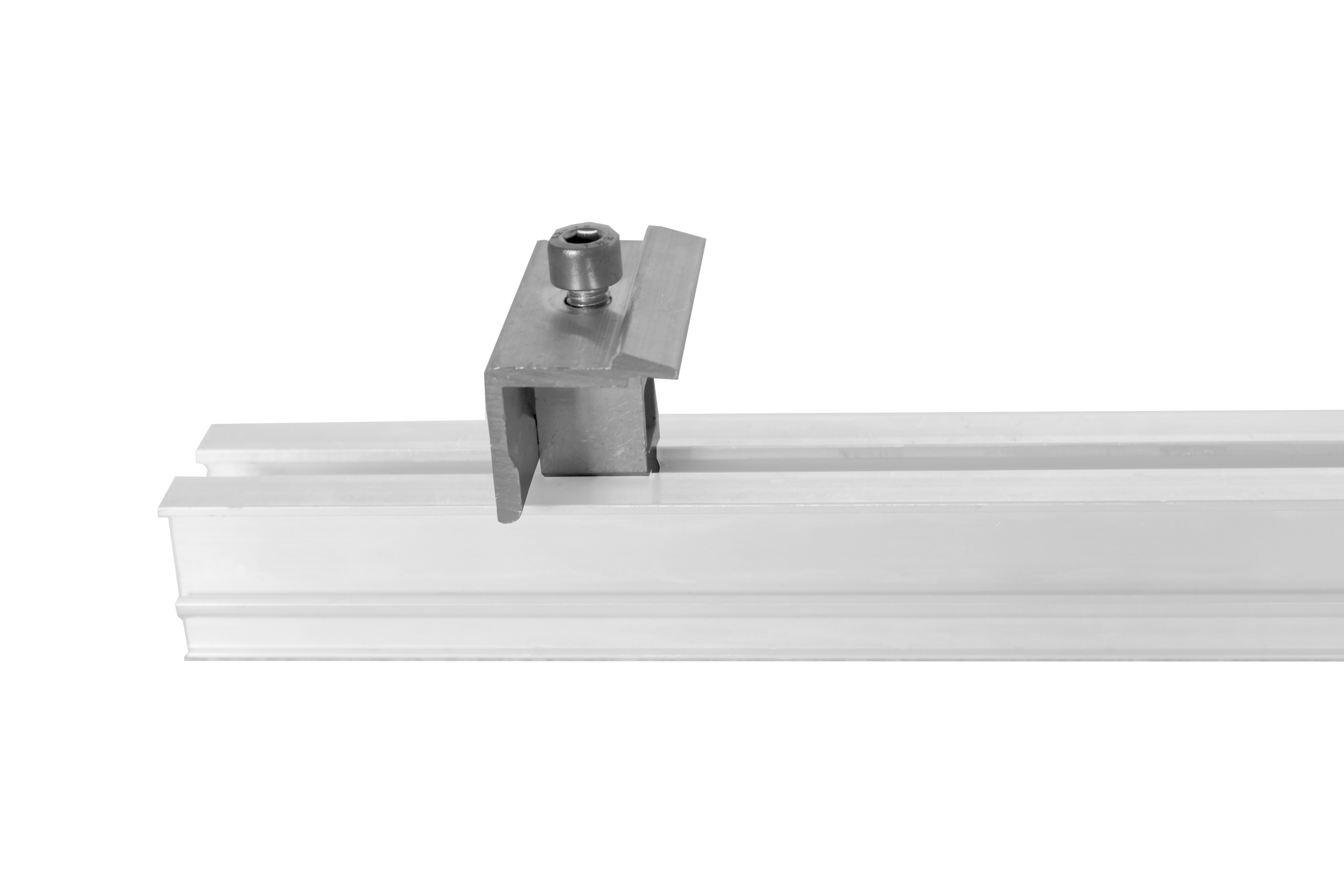

Variable module edge clamp, pre-assembled with threaded plate and screw, for framed modules from 30 to 40 mm frame height, quick installation by simply snapping into the mounting profile
| Order Nr.: | 9740 |
|---|---|
| Colour: | Aluminium nature |
| Material: | extruded aluminium AlMgSi 0.5 |
| Height [mm]: | 30-40 |
| Packaging unit: | Piece |
| Weight [g]: | 52,0 |
Variable module edge clamp, pre-assembled with threaded plate and screw, for framed modules from 30 to 40 mm frame height, quick installation by simply snapping into the mounting profile.
Product: Zinco PV module end clamp
Unit: pcs
Order Nr.: 9740
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Framed photovoltaic modules can be fixed to the SMP with the variable Middle and End Clamps. Two End Clamps are required for one module side.
The End Clamp is fastened on the wide side of the SMP. Place the notch with the rubber on the edge of the profile and press forward until the Clamp engages.
Framed photovoltaic modules can be fixed to the SMP with the variable Middle and End Clamps. Two End Clamps are required for one module side.
The End Clamp is fastened on the wide side of the SMP. Place the notch with the rubber on the edge of the profile and press forward until the Clamp engages.
The photovoltaic module is slid under the Clamps, which are then slightly tightened. On the other side the Middle Clamps are then inserted into the SMP, see following steps.
This product is accessories from

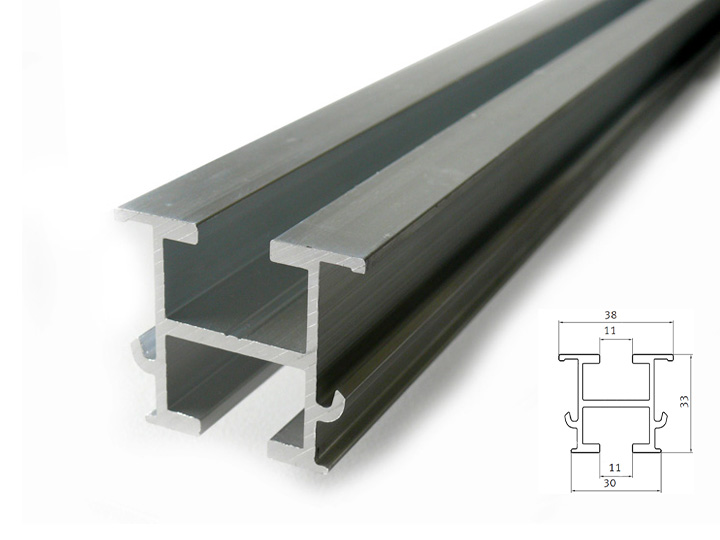

Zinco SMP 38/33 Solar Mounting Profile for Installing Modules / Collectors
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
