Zinco DP-FIX Connector for DP 55 Height 55 mm, aluminium
Metal angle profile holder incl. fixing mat for the simple and visually appealing connection and positioning of ZinCo Eaves Profiles.
Order Nr.:
7705
Product information "Zinco DP-FIX Connector for DP 55 Height 55 mm, aluminium"
Width 12 cm, Connector and connector including pre-slit, Fixing mat size 50 X 75 cm, to be weighted by Superimposed / extra load
| Order Nr.: | 7705 |
|---|---|
| Material: | Connector: aluminium, Fixing mat: polypropylene+polyethylene |
| Width [mm]: | 120,0 |
| Height [mm]: | 55,0 |
| Packaging unit: | Piece |
| Weight [g]: | 180,0 |
| Leg length [mm]: | 55,0 |
| Additional information: | Length x width of the securing mat: approx. 750 mm x 500 mm |
This product is part of a system, the tender text can be found here:
/Zinco-Eaves-Profile-DP-55-A-Height-55-mm-Length-3-m-Aluminum-1-mm/7777
/Zinco-Eaves-Profile-DP-55-A-Height-55-mm-Length-3-m-Aluminum-1-mm/7777
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
DP-FIX – a Perfect Aluminium Profile Connection
DP-FIX is the ideal complement to our Eaves Profiles DP 55/80/120 A. Together with the components of these profiles a simple, fast and above all, a high-quality installation can be realized.
The DP-FIX System Components:
DP-FIX Retainer, including Fixing Mat
DP-FIX Retainer as butt joint connector...
... or as additional retainer
Corners with DP-FIX
Important: Adjacent to each side of the corner retainers with a fixing mat are required!
Internal Corner External Corner
Range of Applications:
DP-FIX is used for a visually appealing installation of DP-Profiles on unused flat roofs, e.g. as enclosure of green areas or as a transitional profile (gravel /green areas/paving).
Installation Instructions and Procedure:
The DP-FIX system components are to be laid on top of the protection mat (> 300 g/m²).
The securing of the position and the stabilization of the retainer are realized only by means of the load superimposed on the attached fixing mat. The DP-Corner pieces are inserted into the DP-FIX retainers. A DP-FIX retainer with fixing mat is to be applied on both sides of a corner.
Preparation and Installation:
DP-FIX Retainers are always delivered with a fixing mat.
The retainer is to be inserted into the fixing mat from above...
Done! The DP-FIX Retainer is ready to be used.
DP-FIX – a Perfect Aluminium Profile Connection
DP-FIX is the ideal complement to our Eaves Profiles DP 55/80/120 A. Together with the components of these profiles a simple, fast and above all, a high-quality installation can be realized.
The DP-FIX System Components:
DP-FIX Retainer, including Fixing Mat
DP-FIX Retainer as butt joint connector...
... or as additional retainer
Corners with DP-FIX
Important: Adjacent to each side of the corner retainers with a fixing mat are required!
Internal Corner External Corner
Range of Applications:
DP-FIX is used for a visually appealing installation of DP-Profiles on unused flat roofs, e.g. as enclosure of green areas or as a transitional profile (gravel /green areas/paving).
Installation Instructions and Procedure:
The DP-FIX system components are to be laid on top of the protection mat (> 300 g/m²).
The securing of the position and the stabilization of the retainer are realized only by means of the load superimposed on the attached fixing mat. The DP-Corner pieces are inserted into the DP-FIX retainers. A DP-FIX retainer with fixing mat is to be applied on both sides of a corner.
Preparation and Installation:
- Make sure that a protection mat (> 300 g/m²) is applied on the entire roof surface as a base for the DP-FIX and the roof profiles
- Check the scope of delivery
- Insert DP-FIX Retainer into the fixing mat
DP-FIX Retainers are always delivered with a fixing mat.
The retainer is to be inserted into the fixing mat from above...
… and to be pulled through the two rear slots.
Done! The DP-FIX Retainer is ready to be used.
- The DP-Profiles, DP-FIX Retainer (with attached fixing mat) and depending on the shape of the roof DP-corner are installed loosely according to the desired geometry. You need to make sure that the entire surface of the fixing mat (0.50 x 0.75 m) can be provided with superimposed load.
- Adjacent to corners an additional retainer with fixing mat is required.
- If necessary, an additional position fixation and stabilization can be achieved by means of a low superimposed load on the fixing mat.
- After having formed the desired geometry with the DP-components, the Zinco roof profiles can be fixed step by step with the DP-FIX system components by clipping or inserting.
- Finally, the further system build-up (e.g. drainage layer, filter sheet, Zincolit®, etc.) can be installed carefully, so that the given geometry of DP-elements remains preserved.
This product is also available in other dimensions / measurements / specifications

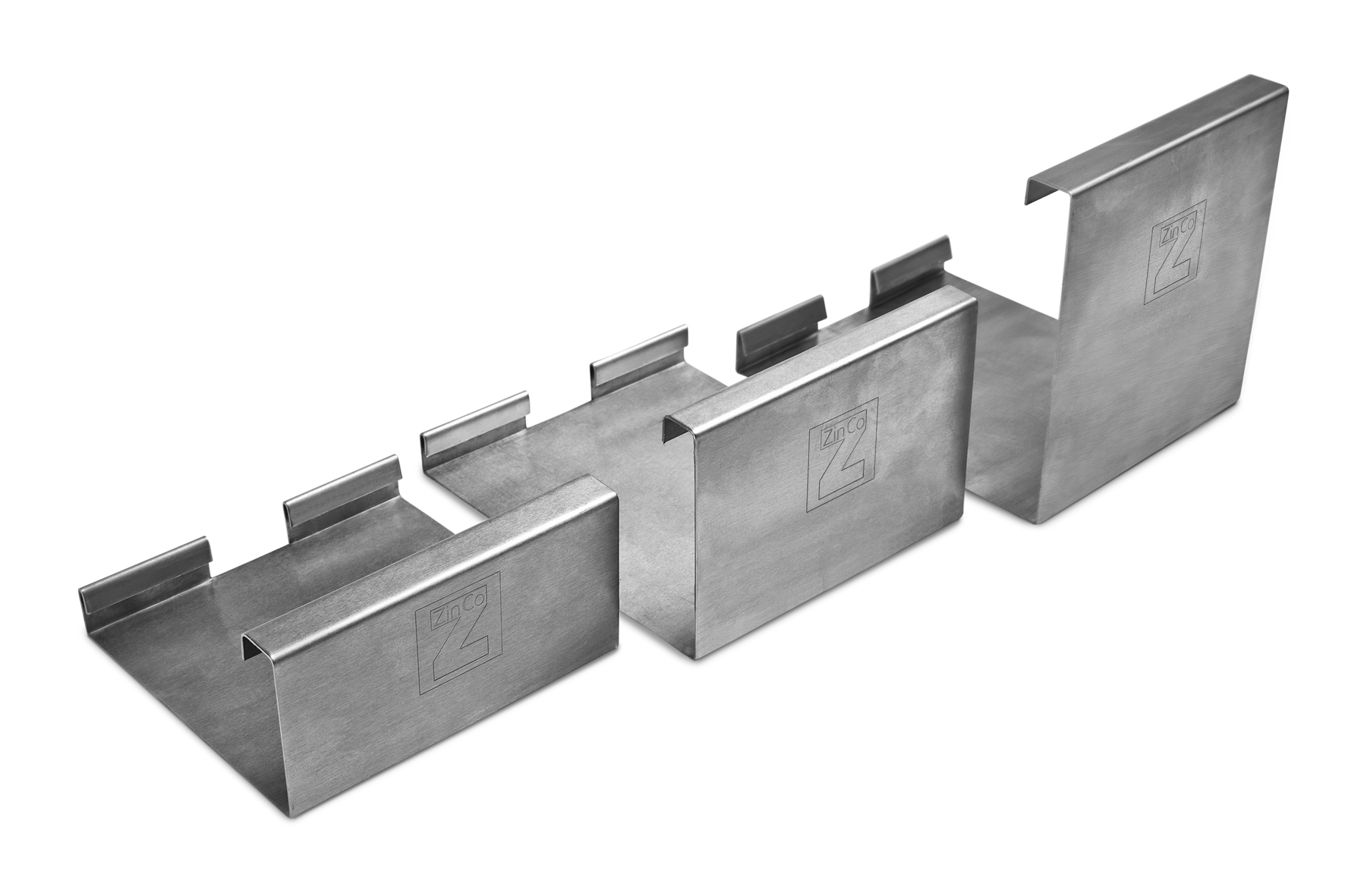

Metal angle profile holder incl. fixing mat for the simple and visually appealing connection and positioning of ZinCo Eaves Profiles.

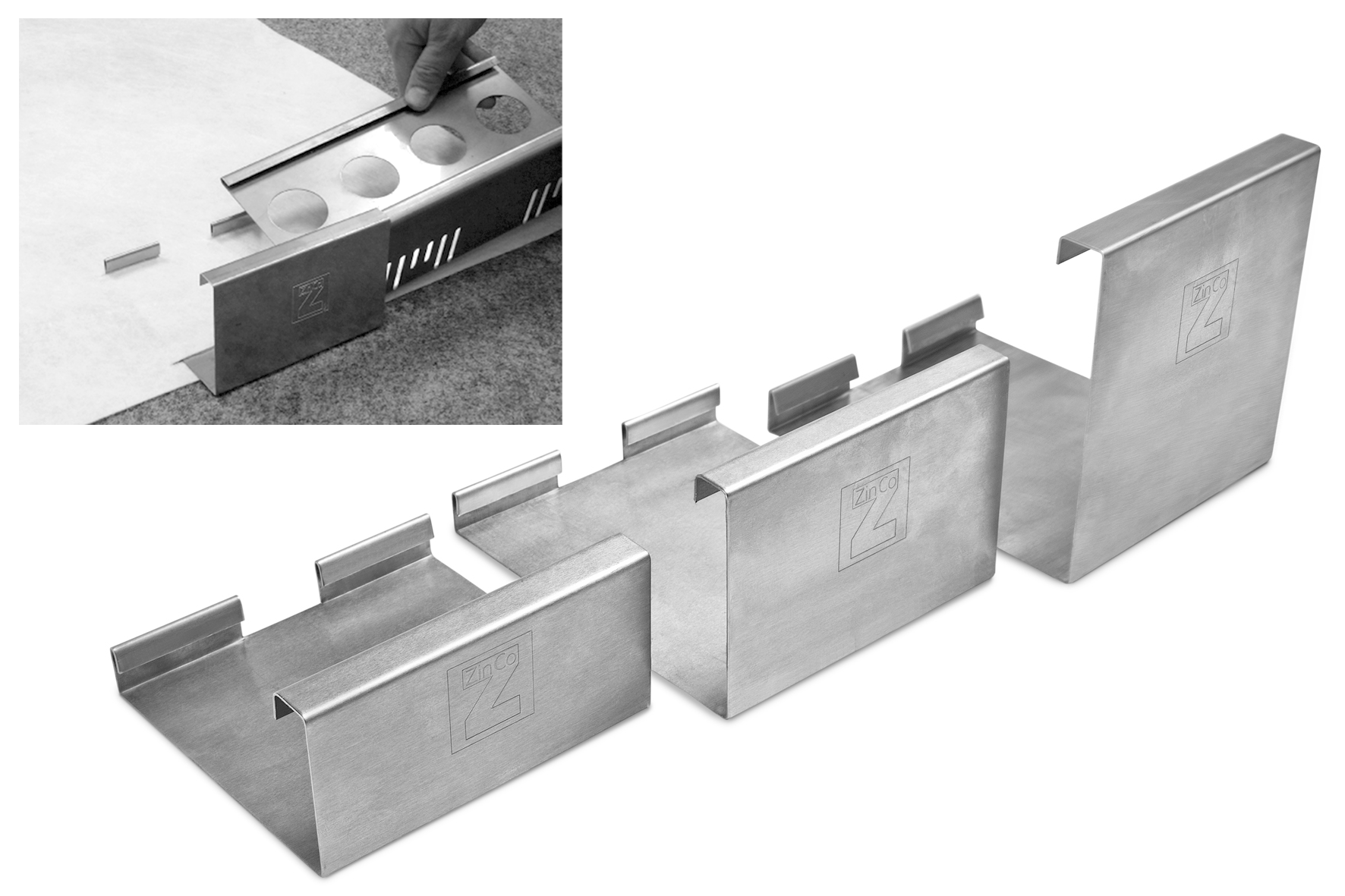

Zinco DP-FIX Connector for DP 120 Height 120 mm, aluminium
Metal angle profile holder incl. fixing mat for the simple and visually appealing connection and positioning of ZinCo Eaves Profiles.
Metal angle profile holder incl. fixing mat for the simple and visually appealing connection and positioning of ZinCo Eaves Profiles.
Metal angle profile holder incl. fixing mat for the simple and visually appealing connection and positioning of ZinCo Eaves Profiles.
This product is accessories from
Metal angle profile holder incl. fixing mat for the simple and visually appealing connection and positioning of ZinCo Eaves Profiles.
Zinco Eaves Profile DP 55-A, height 55 mm, length 3 m, aluminum 1 mm
Metal angle profile with drainage slots and perforations in the Support leg for fixing to the waterproofing of the roof.
Metal angle profile with drainage slots and perforations in the Support leg for fixing to the waterproofing of the roof.
Metal angle profile holder incl. fixing mat for the simple and visually appealing connection and positioning of ZinCo Eaves Profiles.

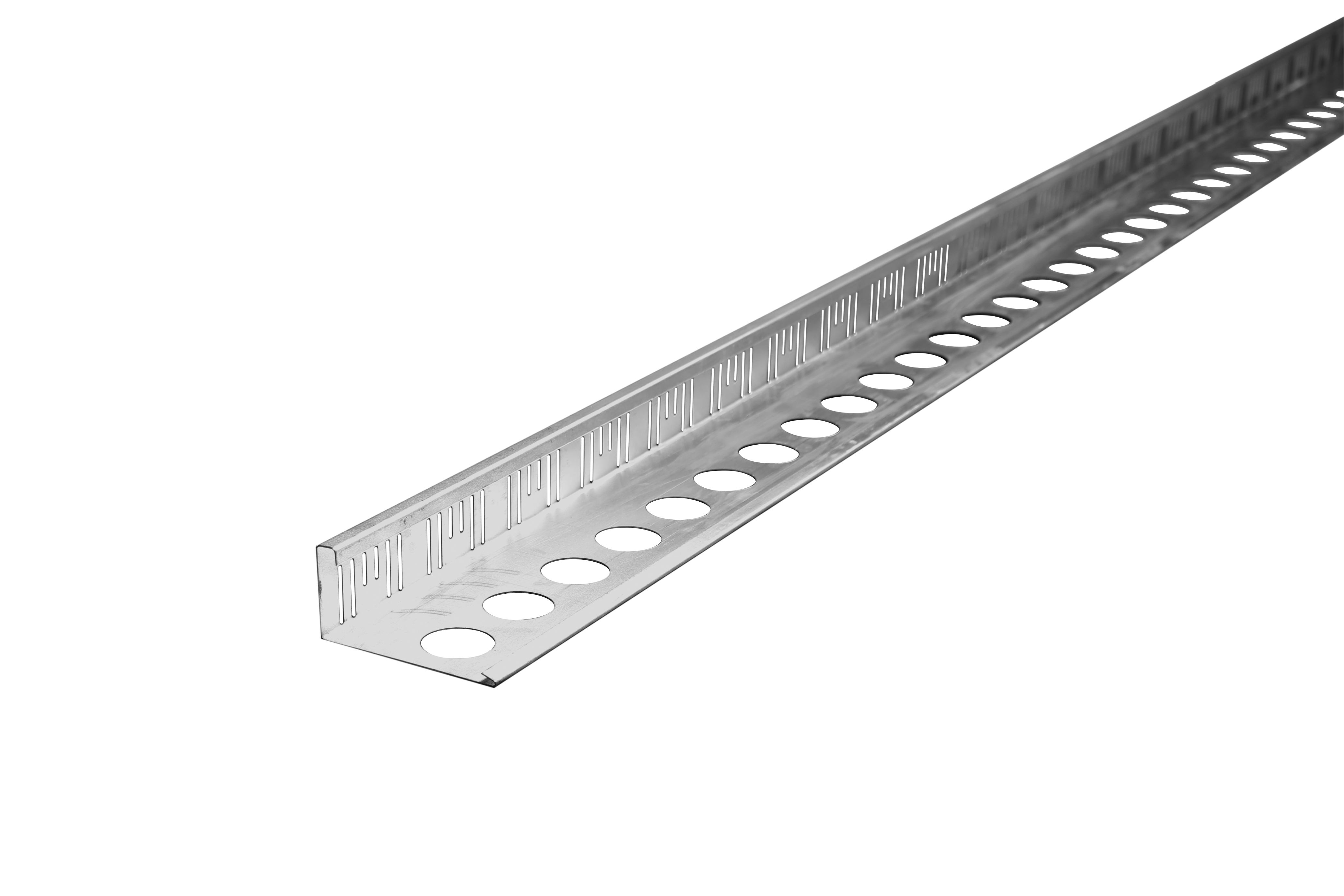

Zinco Eaves Profile DP 55-E, height 55 mm, length 3 m, Stainless steel 0.8 mm
