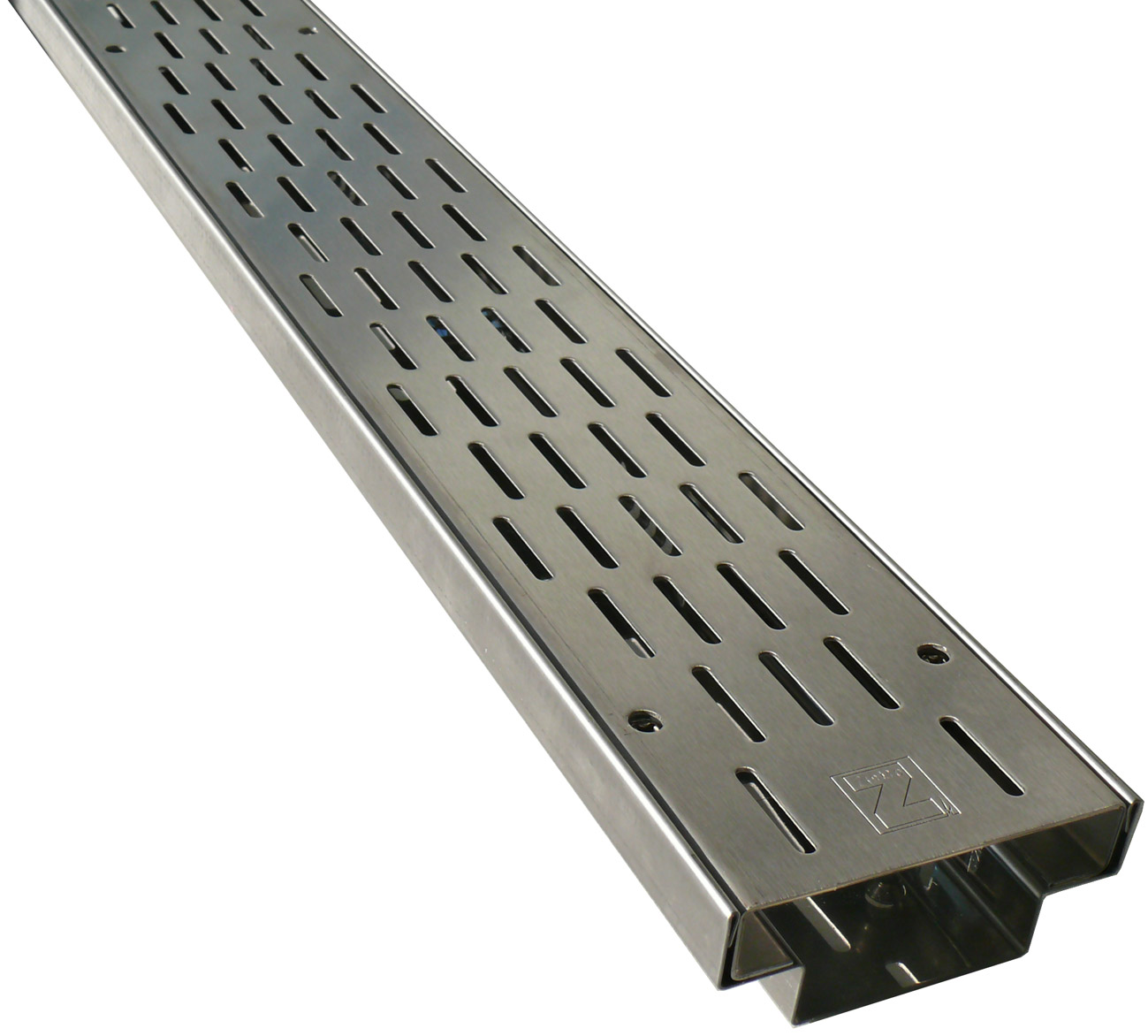

Zinco Drainage Channel BTR vertically adjustable from 40 - 55 mm
Slotted drainage channel made of Stainless steel with slotted holes in the channel cover for installation in front of thresholds or along front walls / facades.
L: approx. 100 cm, W: approx. 10 cm, made of Stainless steel, gutter cover and gutter body with slotted holes, incl. connector, weight approx. 3.6 kg/piece
| Order Nr.: | 4771 |
|---|---|
| Colour: | Stainless steel nature |
| Length [m]: | 1,0 |
| Material: | Stainless steel |
| Width [mm]: | 107,0 |
| Height [mm]: | 40,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 3,6 |
| Additional info: | Adjustment range: from 40-55 mm |
Stainless steel gutter body and cover, slotted at regular intervals at the bottom and sides, slot width approx. XX mm, channel body with lateral slots approx. XX x XX mm, total width 10.7 cm, height adjustable from 40-55 mm, length approx. 1.00 m, supply and install professionally on a stable sub-base, with integrated butt joint connector.
Product: Zinco Drainage Channel BTR
Unit: m
Order Nr.: 4771
The gutter / trench drain consists of 3 Stainless steel parts:
- 1 cover
- 1 channel body with flanged connector
- 1 set (= 6 pieces) of screws
When in use, the lowest channel width is 40 mm, the highest position is 55 mm. The channel length is 107 mm (please refer to the guidelines for flat roof construction), the usable length is 1 m.
The gutter cover is covered with a protective film. Please do not remove it until the work has been completed.
Height adjustment:
Adjustment is made by turning the 6 screws, the cover rests on the 6 screw heads.
Cleaning:
The gutter cover can be lifted out vertically upwards for cleaning.
Connector:
A clean, straight installation is achieved by pushing the flanged brackets together. The T-plug connections must be cut off for individual installation or for the last gutter body.
Fitting pieces:
Customized pieces can be supplied on request. On-site adaptation can be achieved by cutting / flexing. (Attention: not under 53 cm).
Special components:

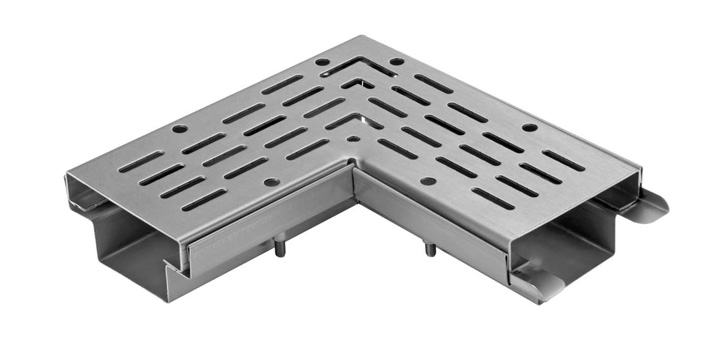

A Corner 90° corner piece with a side length of 22 cm is available in the general catalog and can be used for both inside and outside corners. (Other dimensions / measurements available on request).
Example of installation:

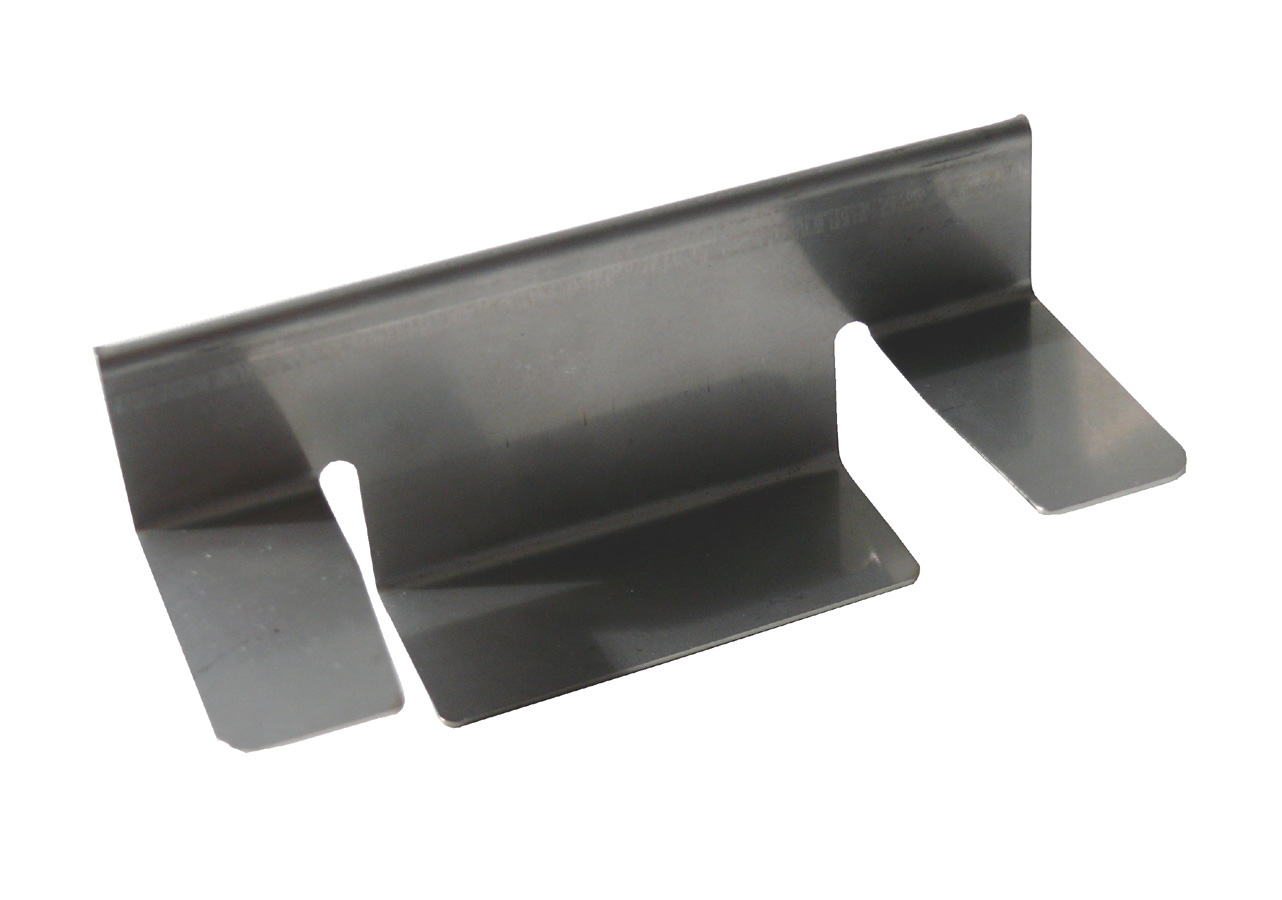

This product has accessories
