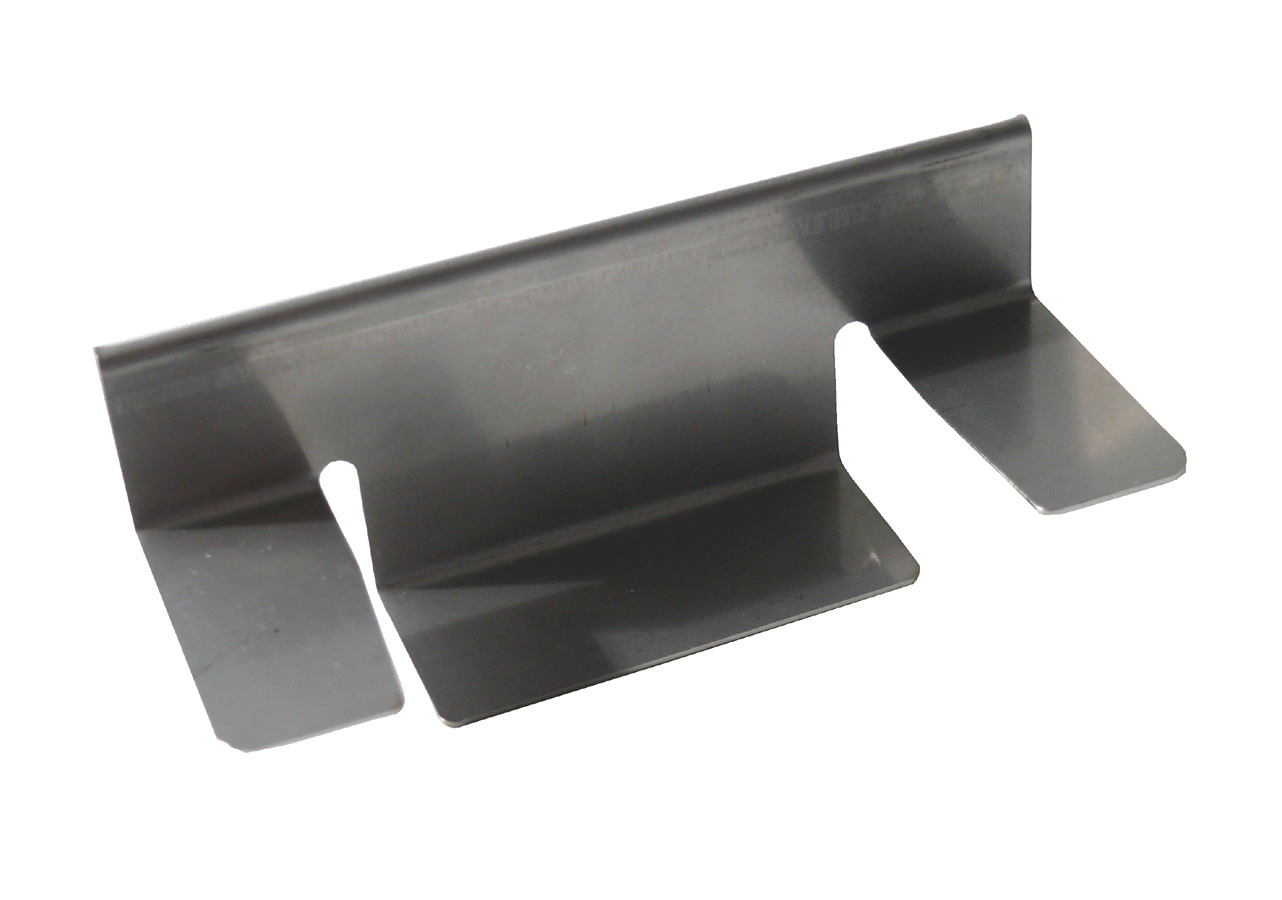

Zinco end piece for BTR Stainless steel
End piece for inserting into the Drainage Channel BTR.
Order Nr.:
4773
Product information "Zinco end piece for BTR Stainless steel"
End piece for inserting into the Drainage Channel BTR
| Order Nr.: | 4773 |
|---|---|
| Material: | Stainless steel |
| Width [mm]: | 105,0 |
| Packaging unit: | Piece |
End piece for insertion into the BTR gutter / trench drain.
Product: Zinco "End piece for BTR"
Unit: pcs
Order Nr.: 4773
You have chosen a high-quality Zinco product.
Please observe the following notices if you are installing the Drainage Channel BTR for the first time.
The gutter / trench drain consists of 3 Stainless steel parts:
1 cover
1 gutter body with flanged connector
1 set (= 6 pieces) of screws
When in use, the lowest channel width is 40 mm, the highest position is 55 mm. The channel length is 107 mm (please refer to the guidelines for flat roof construction), the usable length is 1 m.
The gutter cover is covered with a protective film. Please do not remove it until the work has been completed.
Height adjustment:
adjustment is made by turning the 6 screws, the cover rests on the 6 screw heads.
Cleaning:
the gutter cover can be lifted out vertically upwards for cleaning.
Connector:
a clean, straight installation is achieved by pushing the flanged brackets together. The T-plug connections must be cut off for individual installation or for the last gutter body.
Fitting pieces:
customized pieces can be supplied on request. On-site adaptation can be achieved by cutting / flexing. (Attention: not less than 530 mm).
Example of installation:
Please observe the following notices if you are installing the Drainage Channel BTR for the first time.
The gutter / trench drain consists of 3 Stainless steel parts:
1 cover
1 gutter body with flanged connector
1 set (= 6 pieces) of screws
When in use, the lowest channel width is 40 mm, the highest position is 55 mm. The channel length is 107 mm (please refer to the guidelines for flat roof construction), the usable length is 1 m.
The gutter cover is covered with a protective film. Please do not remove it until the work has been completed.
Height adjustment:
adjustment is made by turning the 6 screws, the cover rests on the 6 screw heads.
Cleaning:
the gutter cover can be lifted out vertically upwards for cleaning.
Connector:
a clean, straight installation is achieved by pushing the flanged brackets together. The T-plug connections must be cut off for individual installation or for the last gutter body.
Fitting pieces:
customized pieces can be supplied on request. On-site adaptation can be achieved by cutting / flexing. (Attention: not less than 530 mm).
Example of installation:
Corner pieces:
Corner situations are constructed using Corner 90° corner pieces with a side length of 220 mm. The Corner 90° corner piece is used to form inside or outside corners. A clean, straight installation is achieved by plugging the flanged angles together.
Corner situations are constructed using Corner 90° corner pieces with a side length of 220 mm. The Corner 90° corner piece is used to form inside or outside corners. A clean, straight installation is achieved by plugging the flanged angles together.
End piece:
The channel end must be formed with the end piece. T-plug connections must be cut off the last gutter body and the end piece (Order No. 4773) pushed into the Drainage Channel BTR as far as it will go.
The channel end must be formed with the end piece. T-plug connections must be cut off the last gutter body and the end piece (Order No. 4773) pushed into the Drainage Channel BTR as far as it will go.
This product is accessories from
End piece for inserting into the Drainage Channel BTR.
Zinco Drainage Channel BTR vertically adjustable from 40 - 55 mm
Slotted drainage channel made of Stainless steel with slotted holes in the channel cover for installation in front of thresholds or along front walls / facades.
Slotted drainage channel made of Stainless steel with slotted holes in the channel cover for installation in front of thresholds or along front walls / facades.
