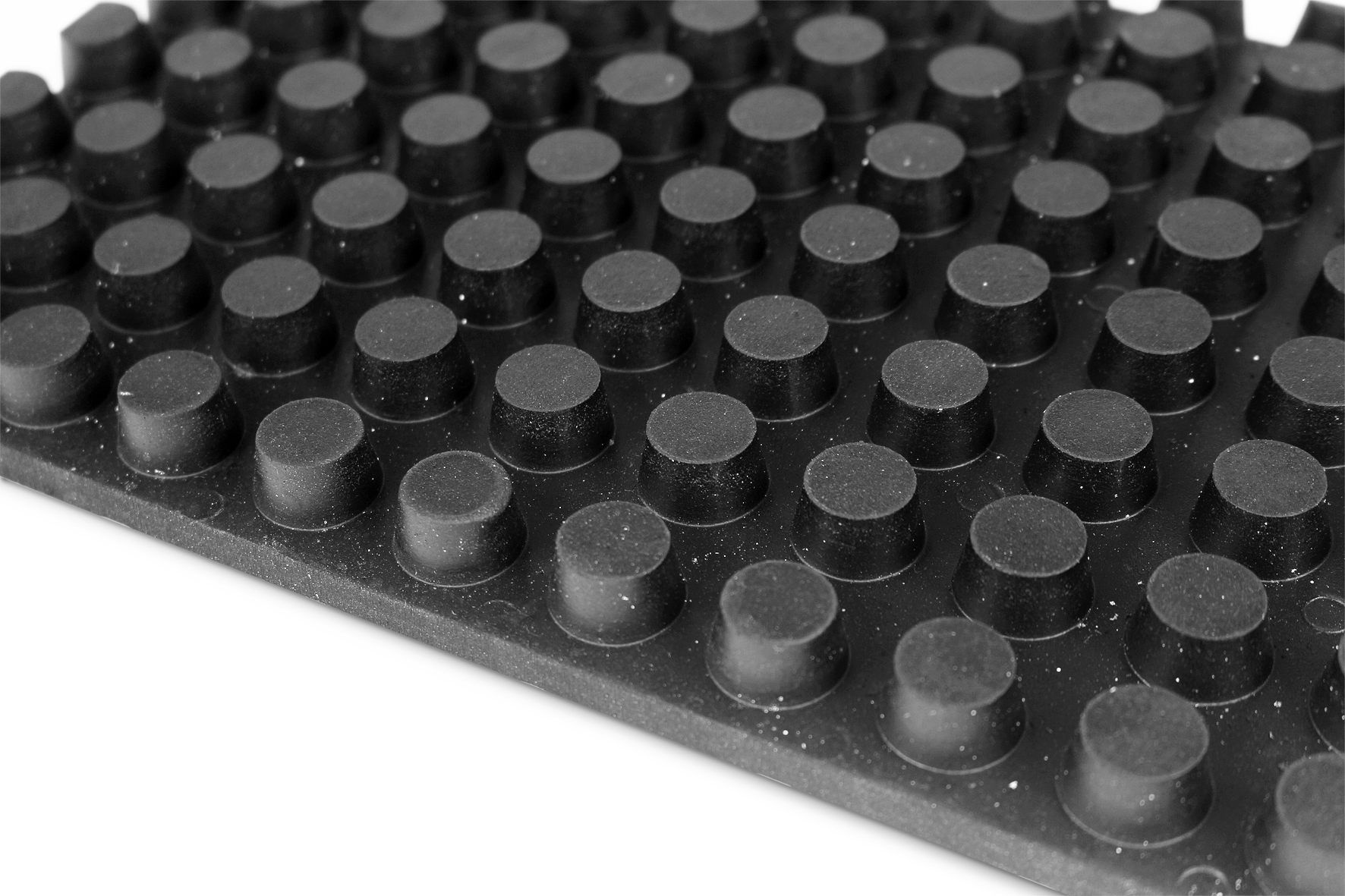

Zinco Elastodrain EL 202, board 1 x 1 m, approx. height 19 mm
Extremely heavy-duty / extremely high loadable protection and Drainage Mat; preferably for use under Driveways, fire department access roads and parking areas etc.
Stud height 12 mm, heavy-duty drainage and building protection mat with unilaterally high load studded edge and rebated subsonic edge, trafficable, spade resistant, bitumen resistant, subsonic noise reduction / insulating subsonic edge, Shore hardness 75 Shore A, static foundation support module approx. 285 MN/cbm, solid rubber, weight approx. 20 kg/sqm
| Order Nr.: | 3220 |
|---|---|
| Colour: | black |
| Length [m]: | 1,0 |
| Material: | fully vulcanized rubber |
| Width [m]: | 1,0 |
| Height [mm]: | 19,0 |
| Packaging unit: | Board |
| Weight [kg/m²]: | 19,0 |
| Stud height [mm]: | approx. 12 |
| Number of studs [m²]: | approx. 1200 |
| Pressure [kN/m²]: | 10% = 400 |
| Shore hardness [Shore A]: | approx. 75 |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 0,34 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 0,47 |
| Water runoff at sheet level at 3% gradient / incline [l/(s-m)]: | 0,57 |
| Compatible with bitumen: | yes |
| Additional information: | static foundation support module approx. 285 MN/m³; heat resistant up to 200° C, short-term up to > 250° C |
heavy-duty / extremely high load bearing, made of solid rubber with unilaterally studded structure, height 19 mm, stud height 12 mm, with rebated edge, can be joined with 2-hole connectors, trafficable, spade resistant, bitumen resistant, subsonic noise reduction / insulating subsonic noise, shore hardness approx. 75 Shore A, static foundation support module 285 MN/m³, Weight approx. 19 kg/m², water drainage capacity tested according to EN ISO 12958: approx. 0.34 l/s*m at a gradient of 1 %, approx. 0.47 l/s*m at a gradient of 2 %, deliver and install according to manufacturer's instructions.
Product: ZincoElastodrain® "EL 202"
Unit: m²
Order Nr.: 3220
Installation should not be carried out if there is a risk of storms.
Installation:

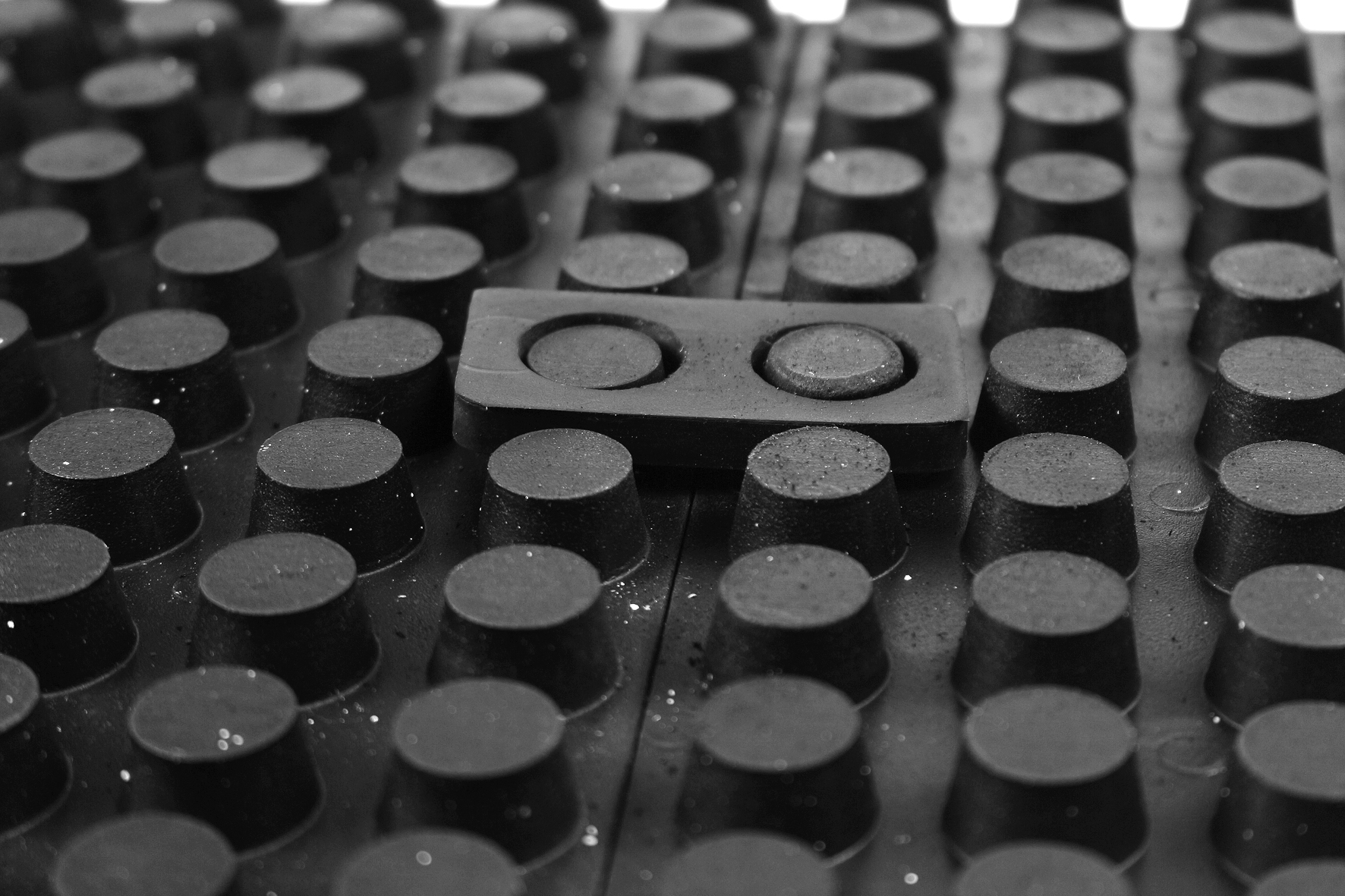

Elastodrain® slabs must always be laid with the studs facing upwards. The slabs must be aligned in such a way that the seam protruding at the top can always be placed on the seam protruding at the bottom of the adjacent slab. If the Elastodrain® slabs are to be driven over, e.g. to apply the System Substrate / Substrate Soil / Growing Medium, it is recommended that they are secured against slipping beforehand with two connectors per joint
To protect against UV radiation, cover the drainage slabs with a Filter Sheet after laying.
A vibrating plate can be used to compact the gravel, but it must be taken into account that the work is being carried out on a roof surface. Select the vibratory plate accordingly so that the vibrations of the floor slab are not too great.
Foundations/back supports are constructed on the Filter Sheet.
Cutting:
The drainage slabs can be cut with an electric cutter. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
Over roof outlets, the drainage boards must be cut according to the size of the outlet.
