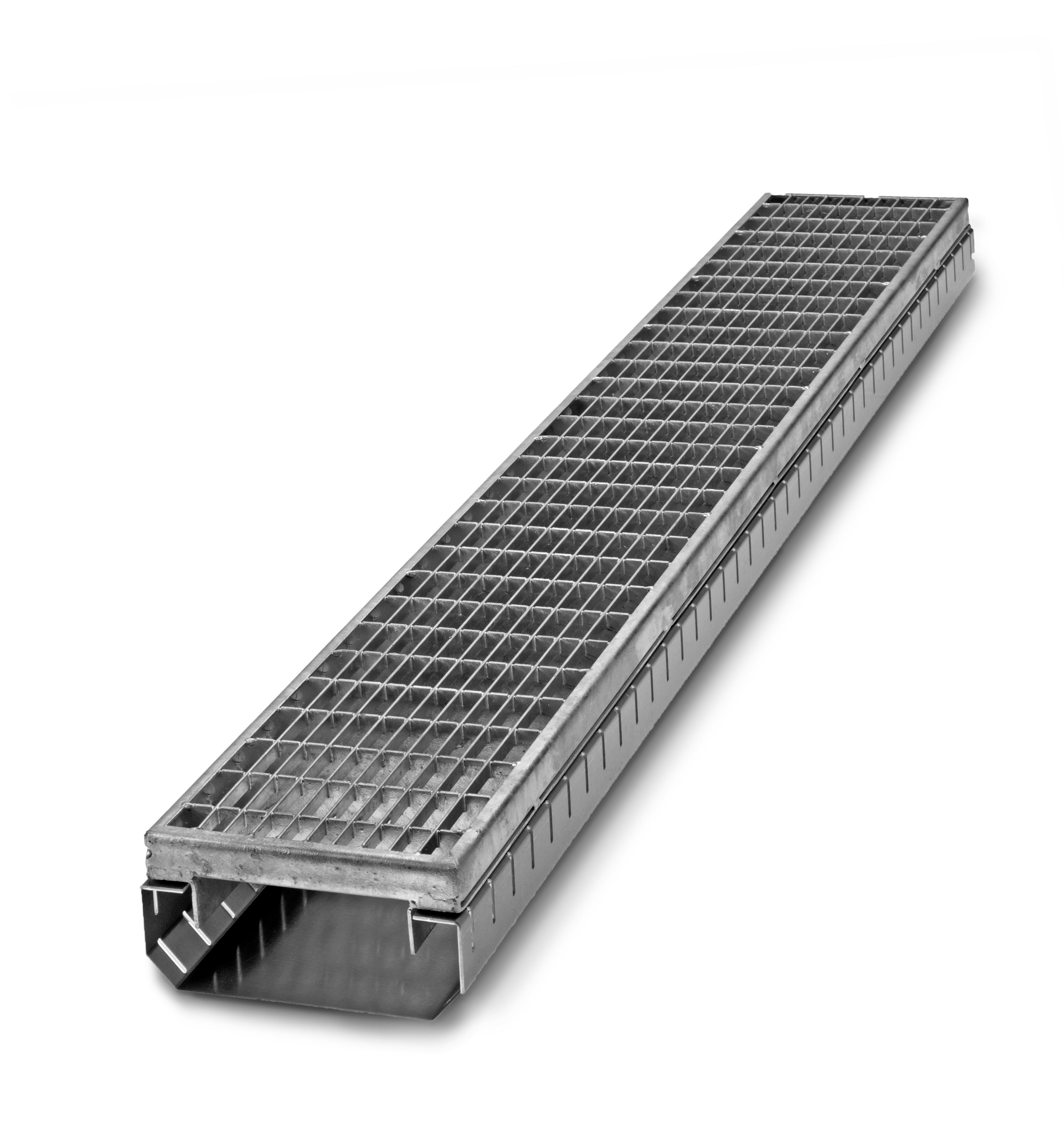

Zinco Facade-Terrace Channel FTR 75/100-G H: 75-100 mm, W: approx. 145 mm, L: approx. 1 m
Laterally slotted drainage channel for installation in front of thresholds or along front walls / facades.
Vertically adjustable drainage channel; cover made of hot-dip galvanized metal grating, mesh width / mesh size approx. 33 x 11 mm; channel body made of aluminium, slotted at the sides, slot width approx. 3 mm, with integrated butt joint connector, which also serves as a closure when folded up.
| Order Nr.: | 4758 |
|---|---|
| Colour: | silver |
| Length [m]: | 1,0 |
| Material: | Metal grate / grid made of galvanized steel |
| Width [mm]: | 145,0 |
| Height [mm]: | 75,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 5,7 |
| Additional info: | Mesh width / mesh size: approx. 33 x 11 mm; Slot width: approx. 3 mm; Adjustment range: from approx. 75-100 mm; Gutter body material: aluminium; Grating material: hot-dip galvanized; Gutter slotted at the sides |
Gutter body made of aluminium, slotted at the bottom and sides, slot width approx. 3 mm, cover made of hot-dip galvanized grating, mesh width / mesh size approx. 33 x 11 mm, width approx. 14.5 cm, height adjustable from 75-100 mm, length approx. 1.00 m, supply and install professionally on a stable sub-base, with integrated butt joint connector, which also serves as an end when folded up.
Product: Zinco "FTR 75/100-G" Facade-Terrace Channel FTR
Unit: m
Order Nr.: 4758
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
The gutters / trench drains always have a slotted channel body, through which the accumulating water is directed to the outlets via appropriately dimensioned drainage layers.
1
Installation:
Facade and Terrace Channel FTR are suitable for direct installation in loose materials. As these are aluminum channels, installation in mortar is not possible.
Several gutter / trench drains are connected using connectors. When folded up, these form the end of the gutter / trench drain. One connector is supplied with each gutter / trench drain.
If corner pieces are required, these are laid in the same way as the gutter / trench drains described above. The prefabricated 90° corners are supplied with one connector each, just like the gutter / trench drains.
The height is adjusted from above by unscrewing the screws.
2
Cutting:
The front wall / facade and terrace gutters can be cut to size using a standard angle grinder with a metal disk. The gutter / trench drain must be shortened on the perforated half so that the screws used as supports can be offset. With aluminum grating, the reinforcement bar closest to the cut may need to be moved.
In the case of galvanized metal grate / grid, the sharp edges must be deburred after cutting and the interfaces protected against corrosion, e.g. with cold galvanizing spray.
This product is also available in other dimensions / measurements / specifications
