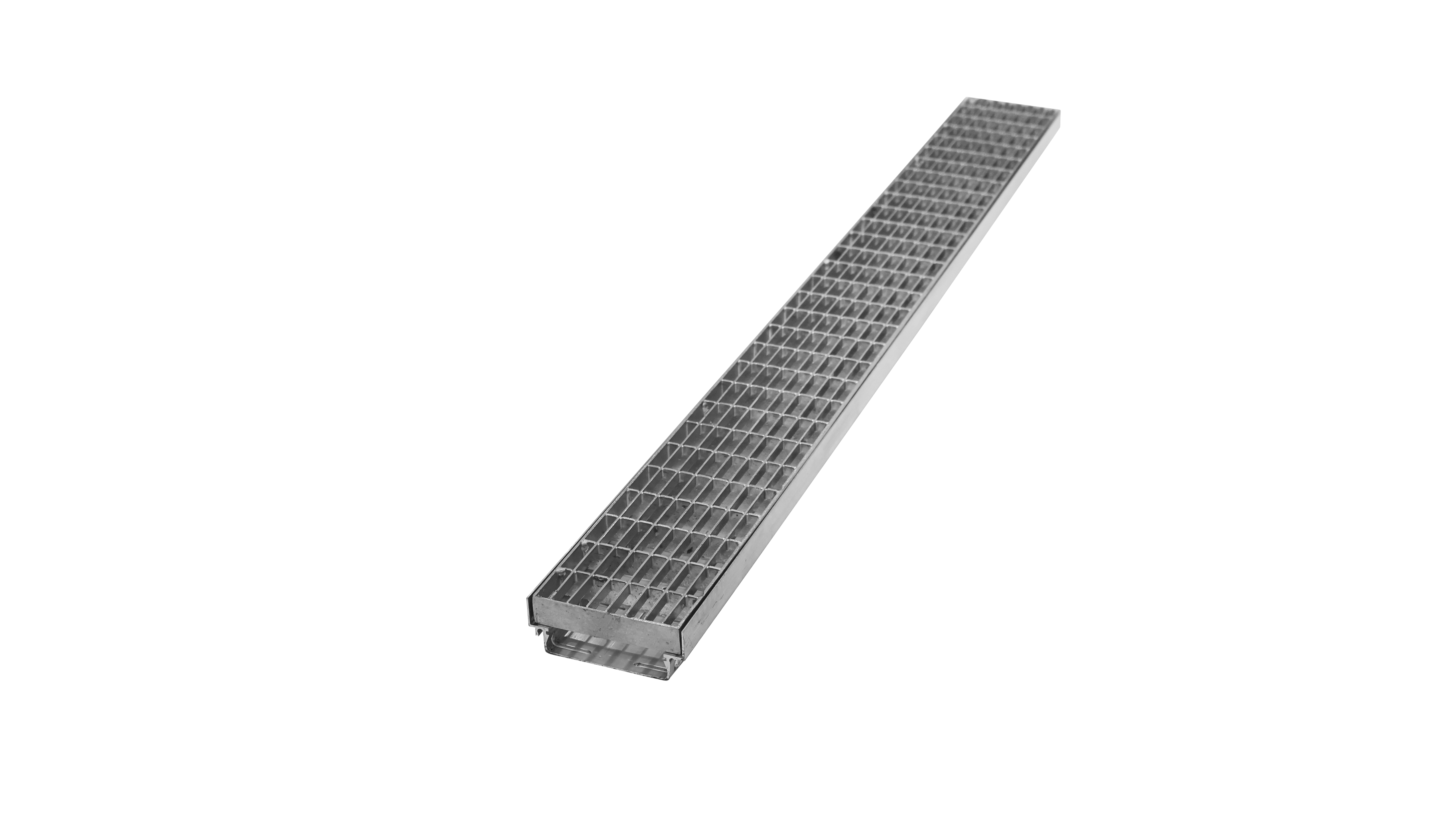

Zinco Drainage Channel FRA 40/100-2 H: 40 mm, W: 100 mm, L: 2 m
Drainage channels slotted at the bottom and sides for installation in front of thresholds or along front walls / facades.
Channel body made of extruded aluminium, with drainage slots. With hot-dip galvanized metal grate / grid, mesh width / mesh size approximately 33 x 11 mm; weight 6.20 kg/each. Connectors and end pieces available as accessories.
| Order Nr.: | 4702 |
|---|---|
| Colour: | silver |
| Length [m]: | 2 |
| Machine width [mm]: | 33 x 11 |
| Material: | Aluminium, Metal grate / grid made of galvanized steel |
| Width [mm]: | 100 |
| Height [mm]: | 40 |
| Packaging unit: | Piece |
| Weight [kg]: | 6,20 |
Gutter body made of extruded aluminium, slotted at the bottom and sides, slot width approx. XX mm, cover made of hot-dip galvanized metal grate / grid, mesh width approx. 33 x 11 mm, width approx. 10 cm, height approx. 40 mm, length approx. 2.00 m, supply and install professionally on a stable sub-base.
Make: Zinco Drainage Channel "FRA 40/100-2"
Unit: m
Order Nr.: 4702

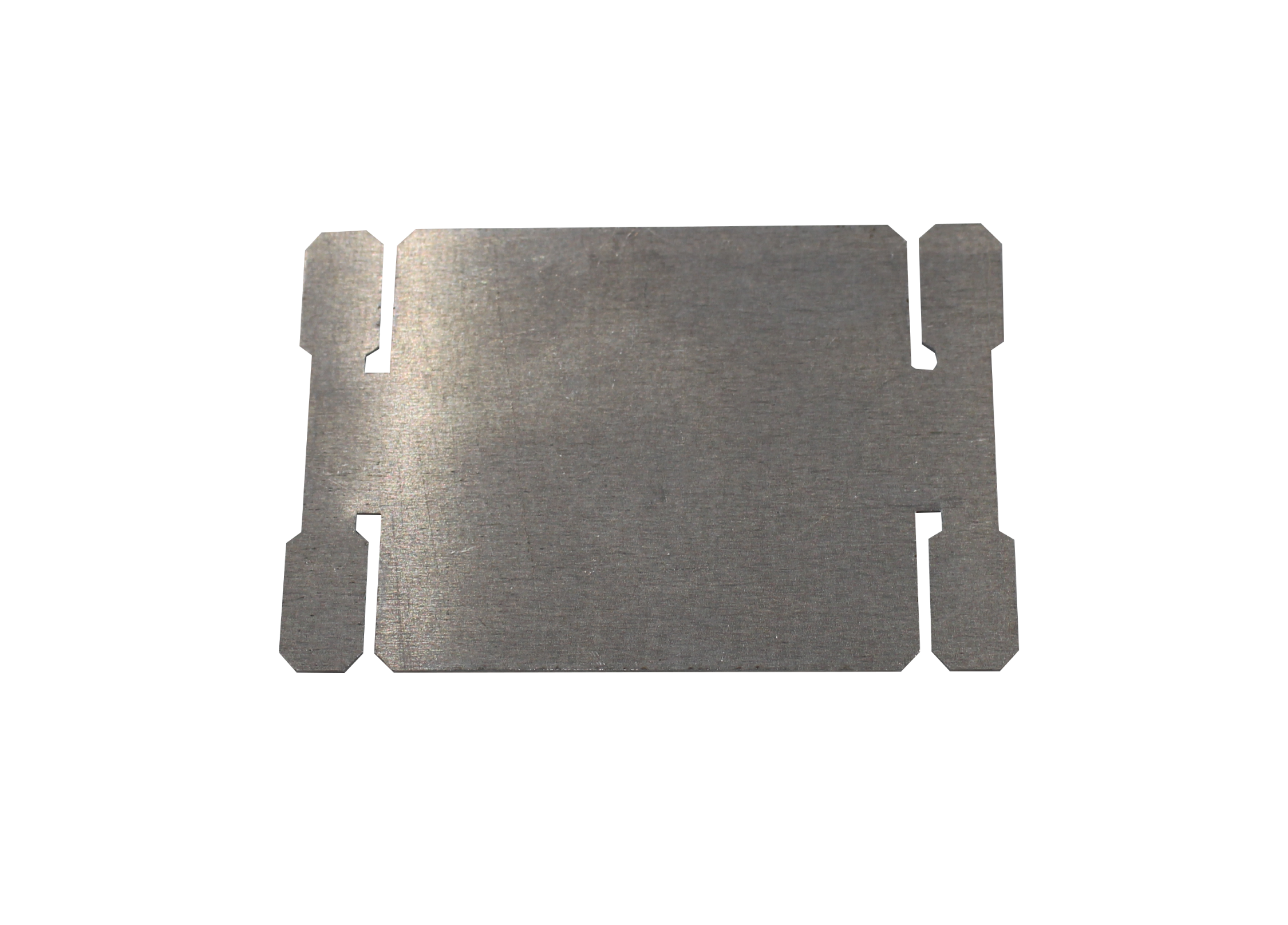

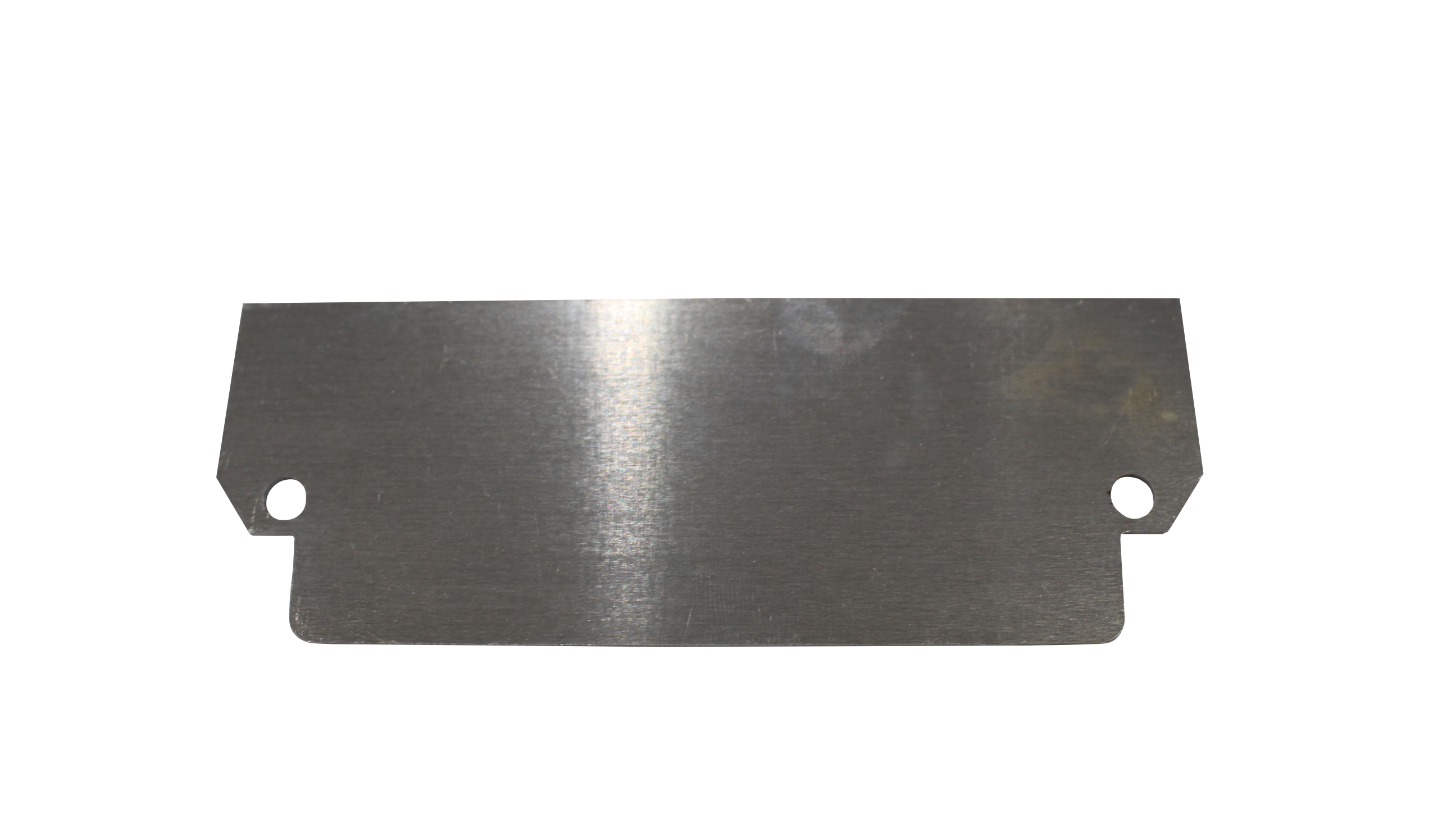

The front wall / facade channels are installed at the correct height on the laying layer or chippings bedding in accordance with the slope of the covering. Pedestals Elefeet® can be used as an alternative support for all front wall / facade channels. The channel bodies must be placed close together and connected with the connectors by inserting and bending the strips at the slots. If necessary, channel bodies and metal grates / grids must be cut to length and deburred using a grinder. The interfaces of the galvanized steel metal grate / grid must be re-galvanized with suitable products. Corner situations are formed using Corner 90° pieces. The metal grates / grids are fitted and the end pieces are inserted into the groove of the gutter / trench drain using the plastic plugs.
1.1 Concrete or natural stone slabs, d ≥ 40 mm
1.2 Chippings bedding, low-lime, 30-50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion at the bottom)
1.4 Protection Mat / Moisture Retention SSM 45
1.5 Suitable Roof construction with root resistant waterproofing
2.1 Clamping and Protection Profile AP 150

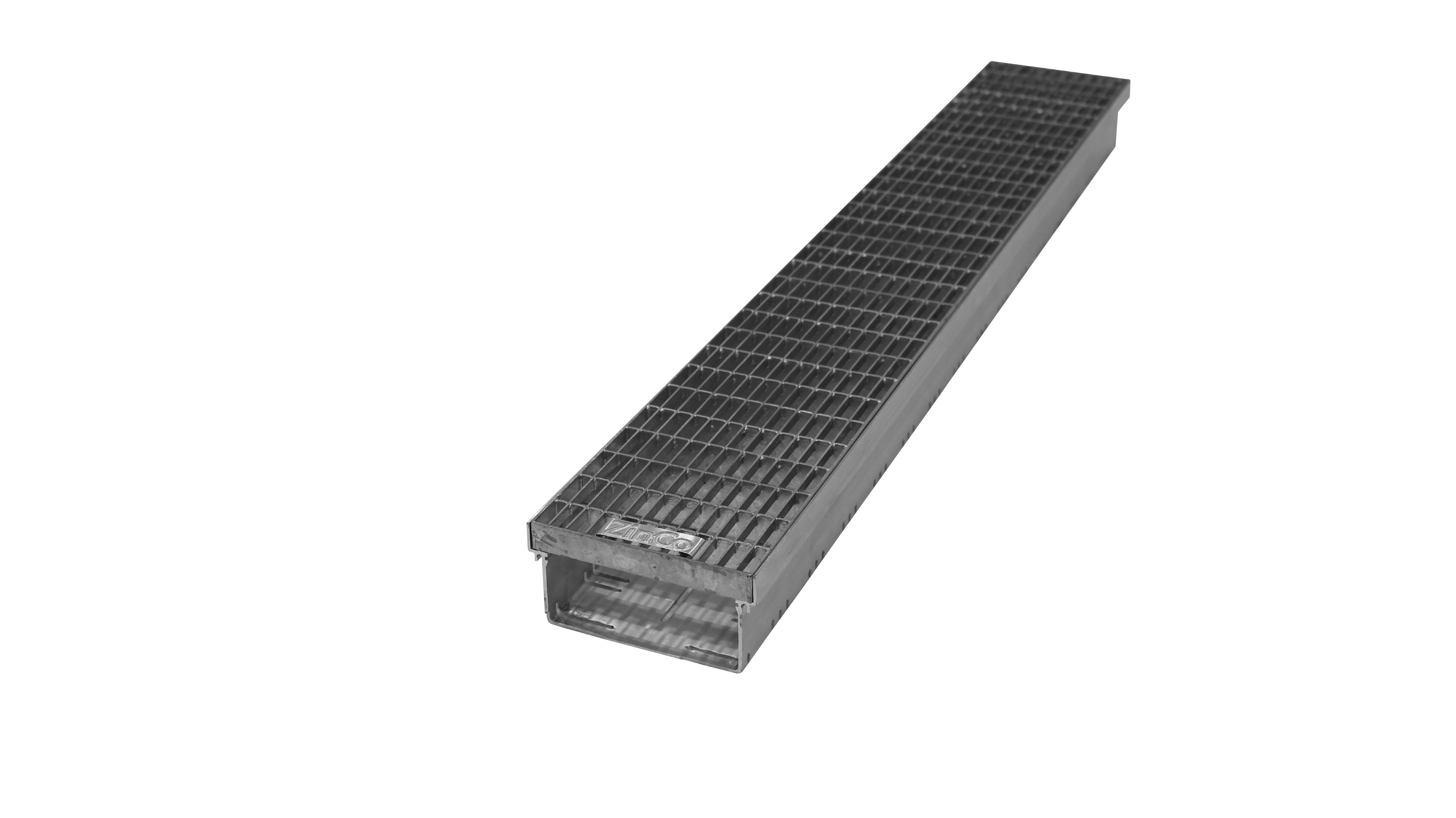

2.2 Drainage Channel FRA 75/150

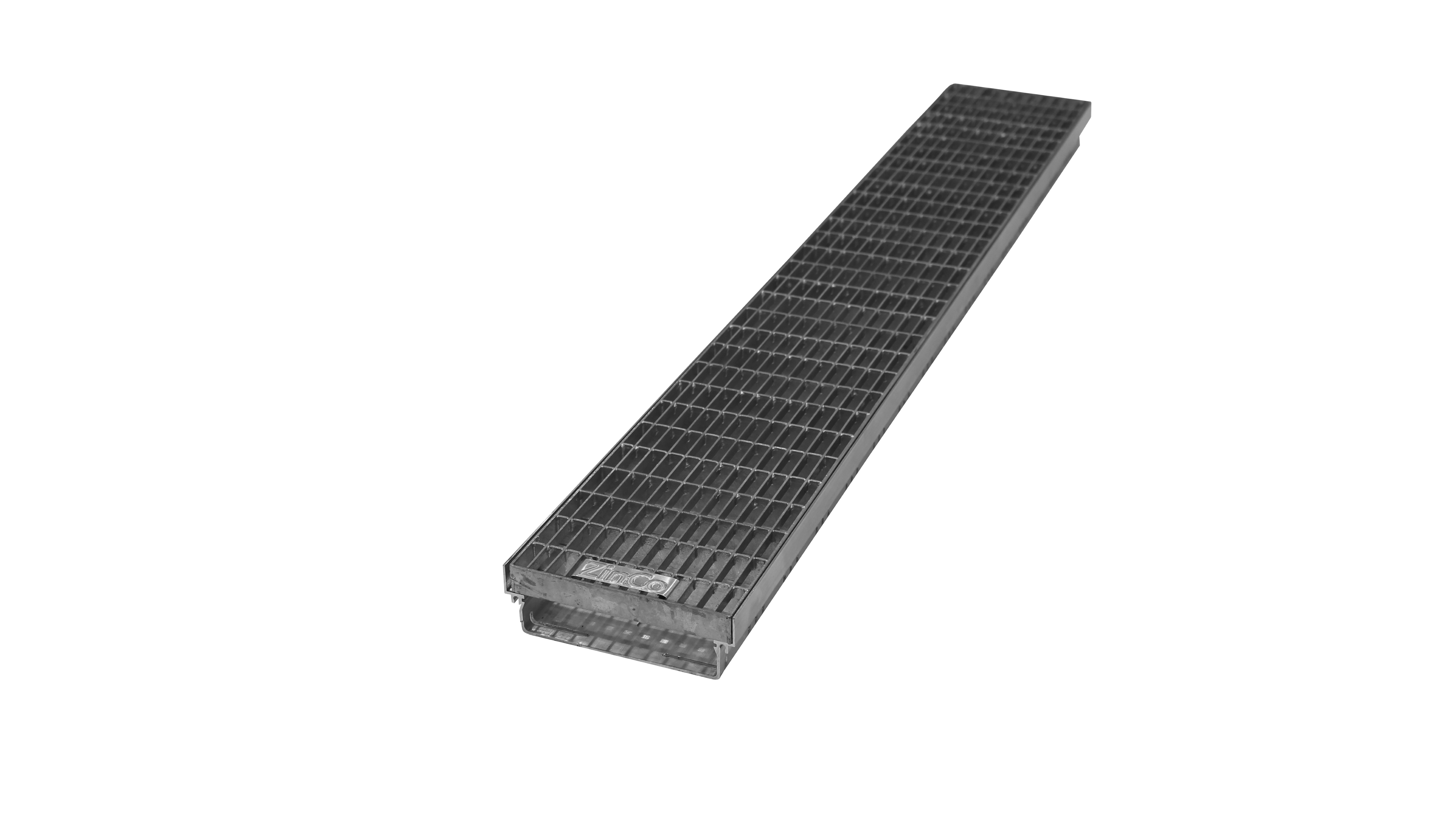

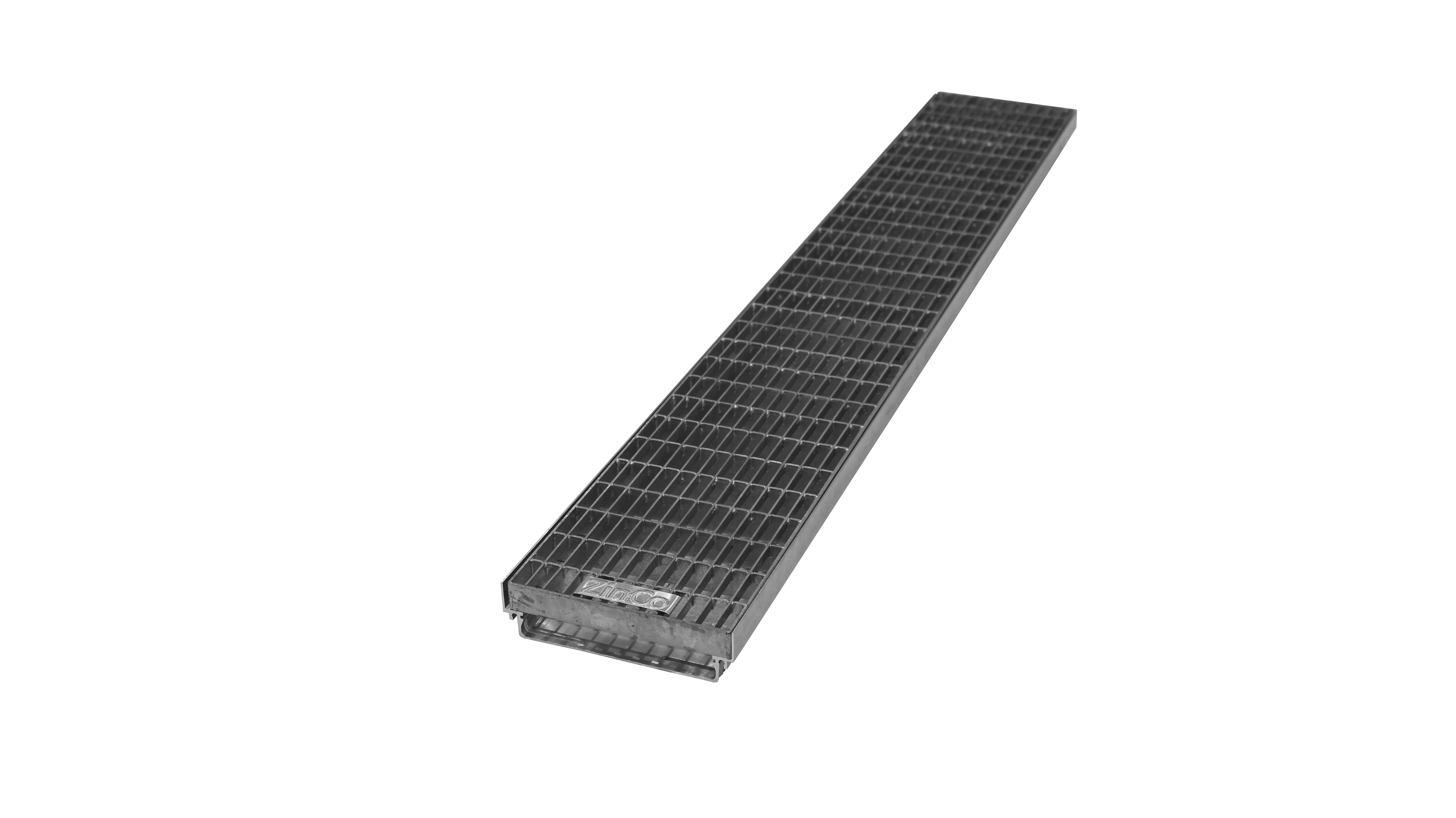

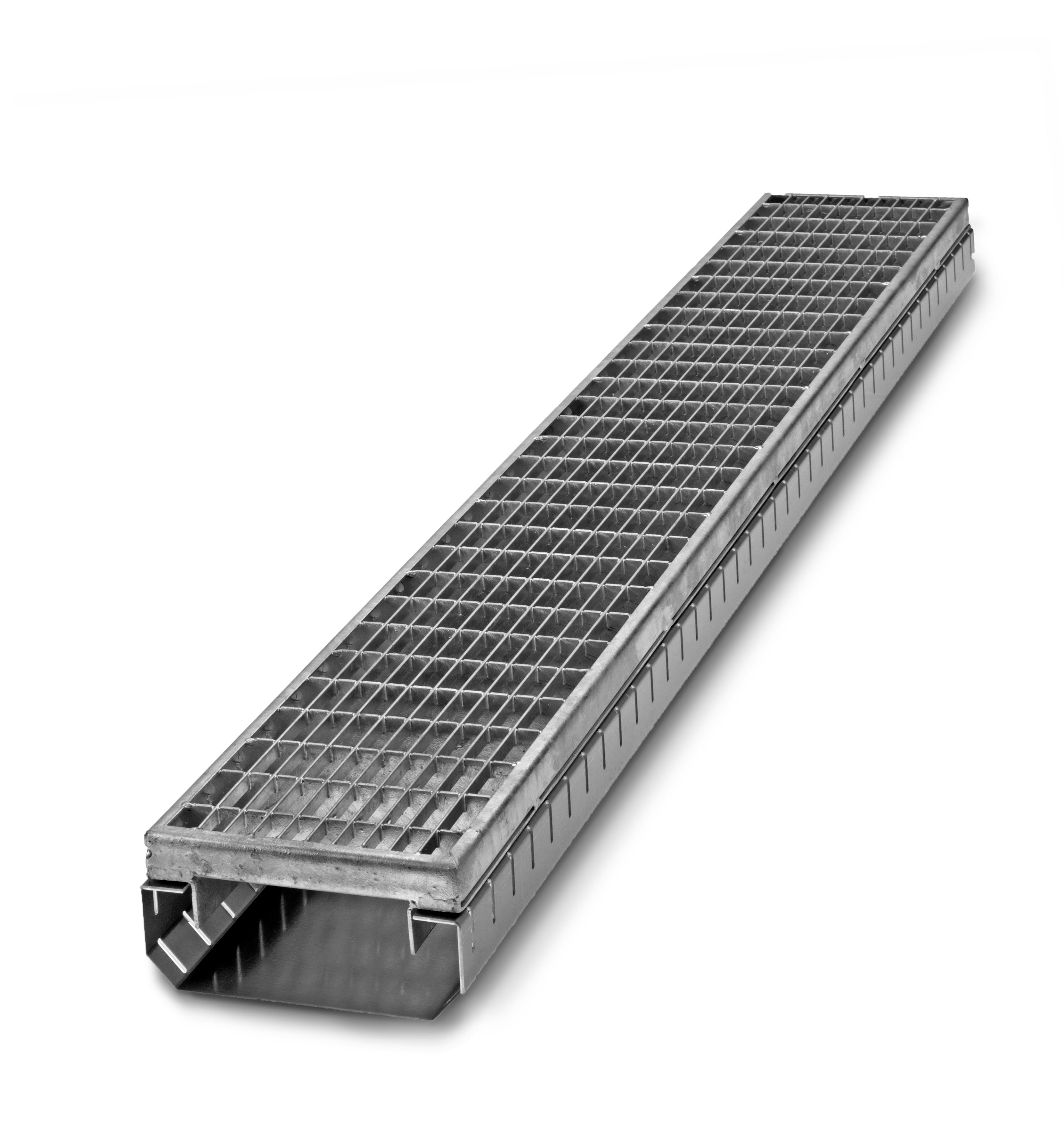

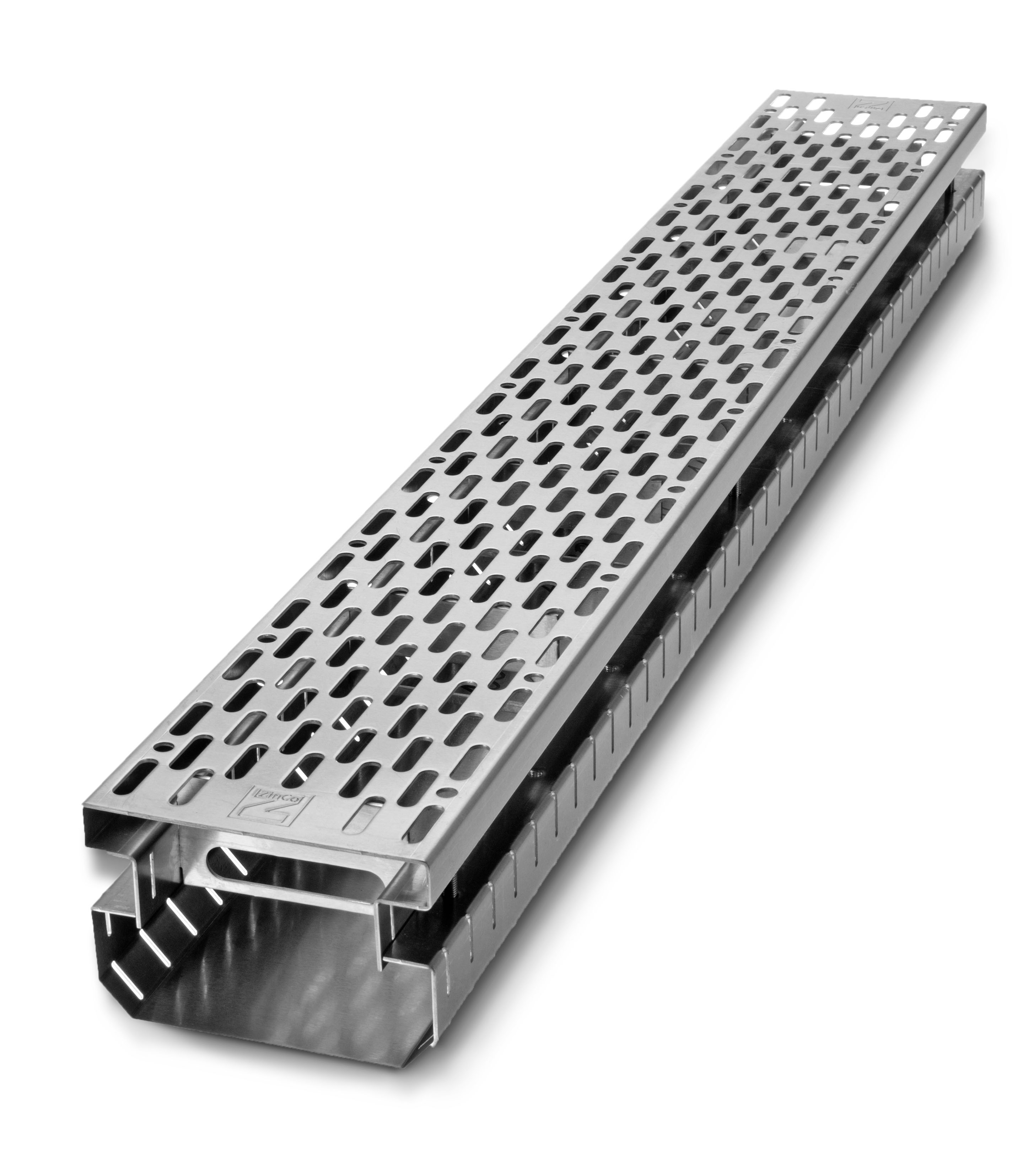

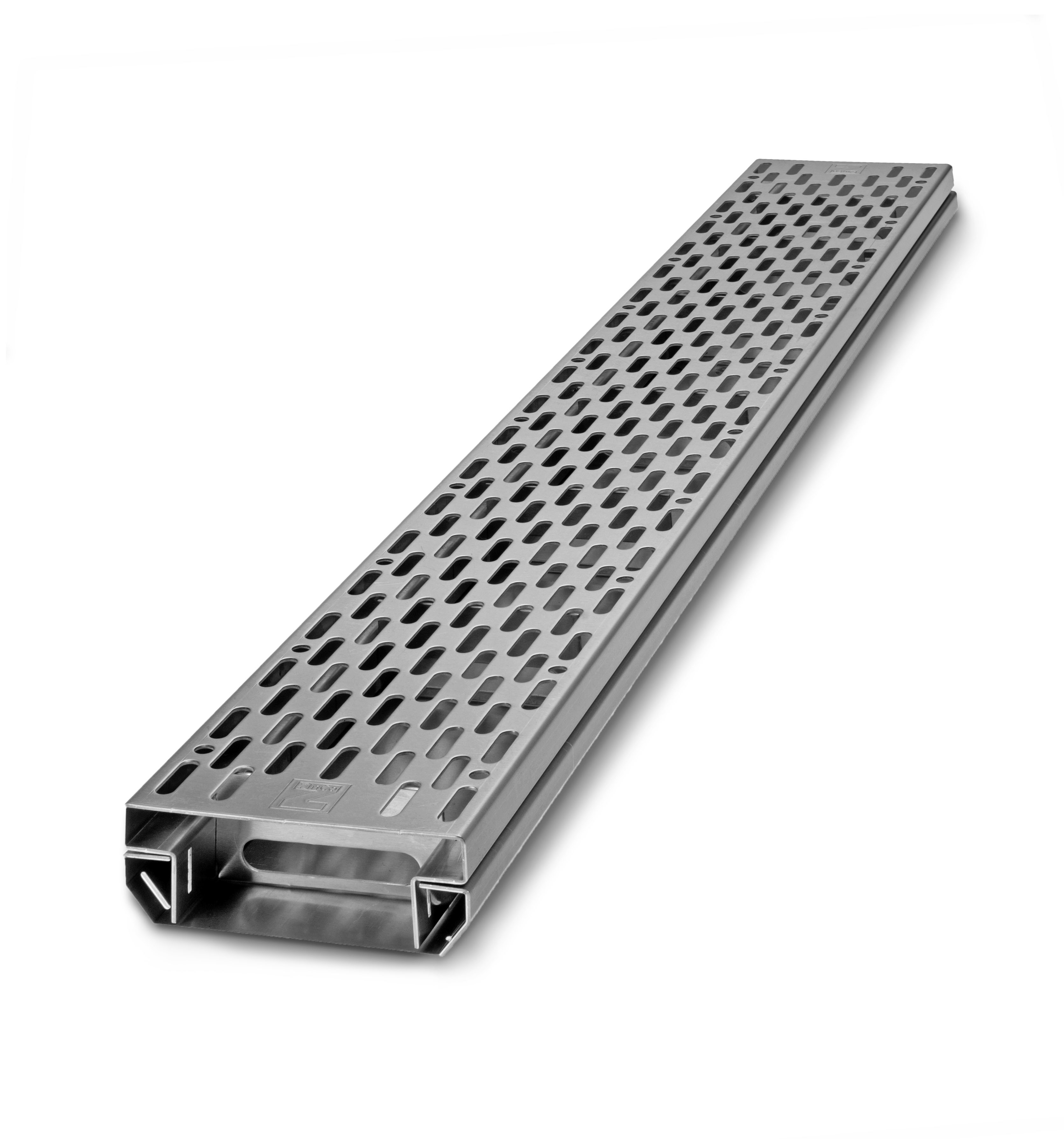

This product is also available in other dimensions / measurements / specifications
