Zinco end piece for FRA 40/100 Set of 2 pieces
Order Nr.:
4703
Product information "Zinco end piece for FRA 40/100 Set of 2 pieces"

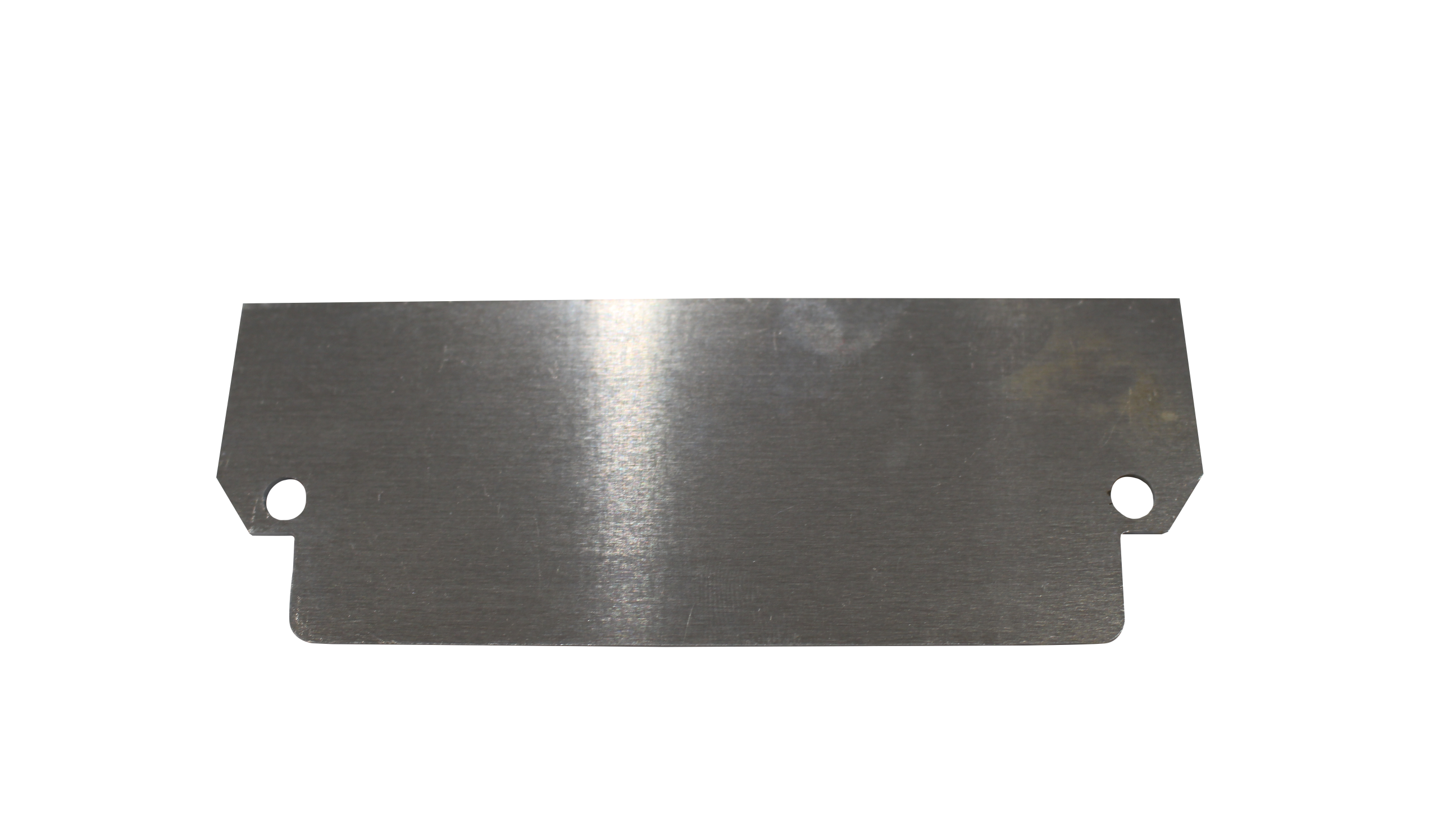

End piece made of aluminium for fitting onto the Drainage Channel FRA 40 with plastic plug for inserting into the groove of the gutter / trench drain.
| Order Nr.: | 4703 |
|---|---|
| Packaging unit: | Set of 2 pieces |
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
The front wall / facade channels are installed at the correct height on the laying layer or chippings bedding in accordance with the slope of the covering. Pedestals Elefeet® can be used as an alternative support for all front wall / facade channels. The channel bodies must be placed close together and connected with the connectors by inserting and bending the strips at the slots. If necessary, channel bodies and metal grates / grids must be cut to length and deburred using a grinder. The interfaces of the galvanized steel metal grate / grid must be re-galvanized with suitable products. Corner situations are formed using Corner 90° pieces. The metal grates / grids are fitted and the end pieces are inserted into the groove of the gutter / trench drain using the plastic plugs.
1.1 Concrete or natural stone slabs, d ≥ 40 mm
1.2 Chippings bedding, low-lime, 30-50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion at the bottom)
1.4 Protection Mat / Moisture Retention SSM 45
1.5 Suitable Roof construction with root resistant waterproofing
2.1 Clamping and Protection Profile AP 150
2.2 Drainage Channel FRA 75/150
The front wall / facade channels are installed at the correct height on the laying layer or chippings bedding in accordance with the slope of the covering. Pedestals Elefeet® can be used as an alternative support for all front wall / facade channels. The channel bodies must be placed close together and connected with the connectors by inserting and bending the strips at the slots. If necessary, channel bodies and metal grates / grids must be cut to length and deburred using a grinder. The interfaces of the galvanized steel metal grate / grid must be re-galvanized with suitable products. Corner situations are formed using Corner 90° pieces. The metal grates / grids are fitted and the end pieces are inserted into the groove of the gutter / trench drain using the plastic plugs.
1.1 Concrete or natural stone slabs, d ≥ 40 mm
1.2 Chippings bedding, low-lime, 30-50 mm
1.3 Floradrain® FD 40, infilled with low-lime stone chippings (openings for diffusion at the bottom)
1.4 Protection Mat / Moisture Retention SSM 45
1.5 Suitable Roof construction with root resistant waterproofing
2.1 Clamping and Protection Profile AP 150
2.2 Drainage Channel FRA 75/150
This product is accessories from
Zinco Drainage Channel FRA 40/100-1 H: 40 mm, W: 100 mm, L: 1 m
Drainage channels slotted at the bottom and sides for installation in front of thresholds or along front walls / facades.
Drainage channels slotted at the bottom and sides for installation in front of thresholds or along front walls / facades.

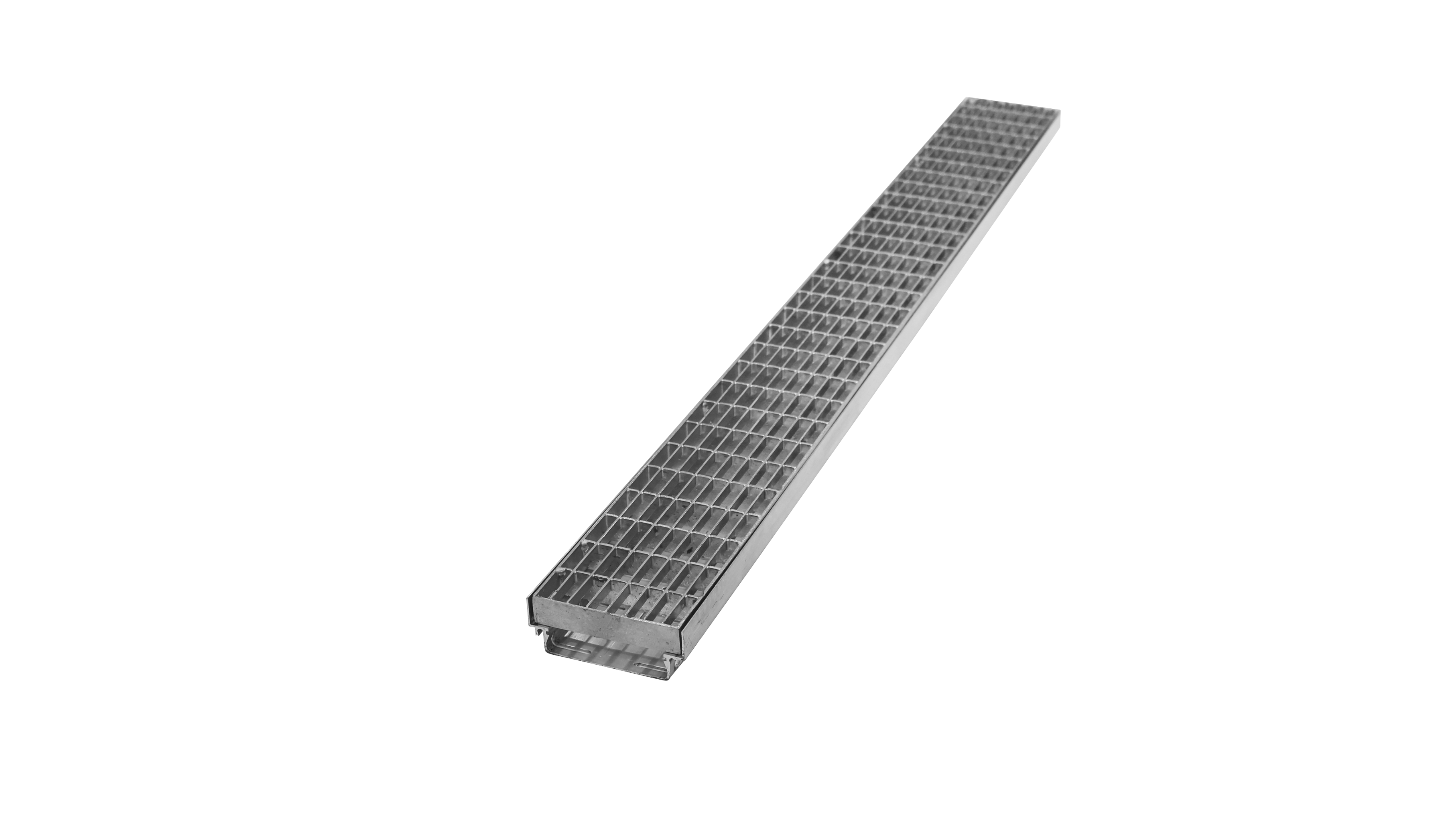

Zinco Drainage Channel FRA 40/100-2 H: 40 mm, W: 100 mm, L: 2 m
Drainage channels slotted at the bottom and sides for installation in front of thresholds or along front walls / facades.
Drainage channels slotted at the bottom and sides for installation in front of thresholds or along front walls / facades.
