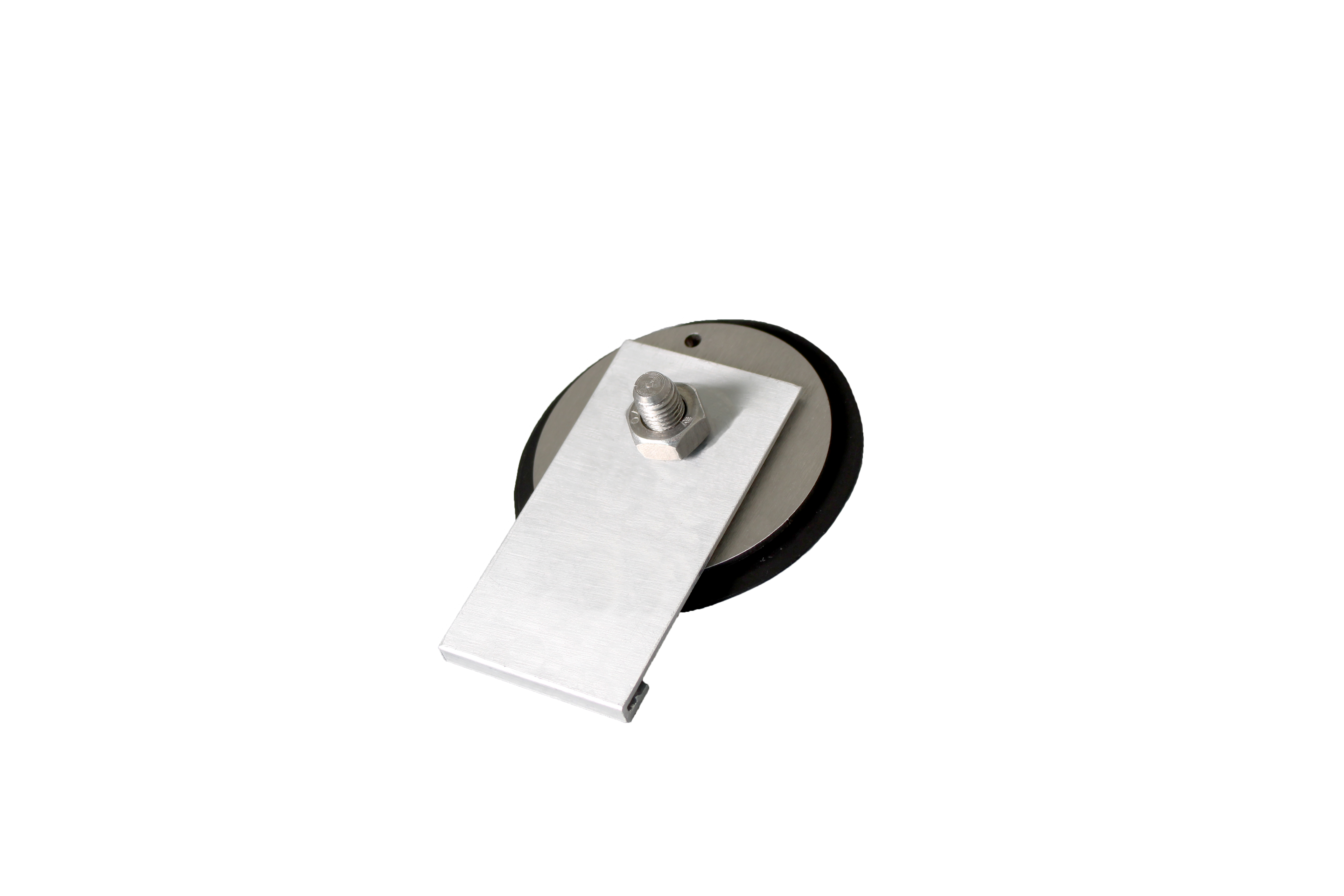

Zinco Fastener LF150 Pack of 5 pieces
Fastener for the ZinCo Gravel strips
Order Nr.:
7902
Product information "Zinco Fastener LF150 Pack of 5 pieces"
made of aluminium, Thickness 1.8 mm, width 48 mm, length 95 mm, with punched hole diameter 11 mm for mounting on Shear-Fix LF 150, folded on one side for hanging and fixing Gravel Retainer KL.
| Order Nr.: | 7902 |
|---|---|
| Material: | Aluminium |
| Length [mm]: | 95,0 |
| Width [mm]: | 48,0 |
| Thickness [mm]: | 1,8 |
| Packaging unit: | Pack |
| Weight [g]: | 10,0 |
| Additional information: | with punched hole diameter 11 mm. |
made of aluminium, Thickness 1.8 mm, width 48 mm, length 95 mm, punched hole diameter 11 mm for mounting on Shear-Fix LF 150, one-sided folded for hanging and fixing Gravel Retainer KL.
Product: Zinco "Fastener LF 150"
Unit: pcs
Order Nr.: 7902
Gravel Retainer KL 60/80, KL 80/100, KL 100/120 and KL 140/160:
The Gravel strips are laid on the protective layer/drainage and weighted down with System Substrate / Substrate Soil / Growing Medium. It can be used on both sides to create two heights with one product. The Gravel strips must be connected at the joints with height-adjusted connectors. Corner situations are constructed using inside or outside corners with Corner joints.
1.1 Greening level
1.2 System Substrate
1.3 Filter Sheet SF
1.4 Floradrain® FD 25
1.5 Protection Mat / Moisture Retention SSM 45
1.6 Roof construction with root resistant waterproofing
2.1 Gravel Retainer KL (if required)
2.2 Gravel strips
Fixing the Gravel Retainer KL 60/80, KL 80/100, KL 100/120 and KL 140/160 using a retaining profile for Gravel Retainer KL:
The Gravel strips are laid on the protective layer/drainage and weighted down with System Substrate / Substrate Soil / Growing Medium. It can be used on both sides to create two heights with one product. The Gravel strips must be connected at the joints with height-adjusted connectors. Corner situations are constructed using inside or outside corners with Corner joints.
1.1 Greening level
1.2 System Substrate
1.3 Filter Sheet SF
1.4 Floradrain® FD 25
1.5 Protection Mat / Moisture Retention SSM 45
1.6 Roof construction with root resistant waterproofing
2.1 Gravel Retainer KL (if required)
2.2 Gravel strips
Fixing the Gravel Retainer KL 60/80, KL 80/100, KL 100/120 and KL 140/160 using a retaining profile for Gravel Retainer KL:
1. Zinco Gravel Retainer KL 60/80, KL 80/100, KL 100/120, KL 140/160
2. Retaining profile (Order No. 7905)
3. Strip of sealing material, size approx. 10 cm x 25 cm
4. Load only in tension
When used on flat pitched roofs (up to max. 10°), the Gravel Retainer must be secured against slipping with the retaining profile (Order No. 7905).
2. Retaining profile (Order No. 7905)
3. Strip of sealing material, size approx. 10 cm x 25 cm
4. Load only in tension
When used on flat pitched roofs (up to max. 10°), the Gravel Retainer must be secured against slipping with the retaining profile (Order No. 7905).
The rebate of the retaining profile must be fully inserted into the rebate of the Gravel Retainer. The retaining profile itself is fixed in the area of the perforated strip with a 10 cm wide and 25 cm longitudinal strip of the existing waterproofing of the roof directly to the rear fold-up / upstand of the strip. The profiles must be installed in such a way that the strips are loaded in tension! At least two retaining profiles must be provided for each 2 m length of Gravel Retainer. The waterproofing of the roof must be fixed to the substrate.
