Zinco Gravel Retainer KL 80/100 Height 80/100 mm, length 2 m, aluminum
Easy to transport, usable on both sides, angle profiles made of extruded aluminium with corner drainage slots.
Angle profiles usable on both sides made of extruded aluminium with drainage slots across corners. Connectors available separately.
| Order Nr.: | 7767 |
|---|---|
| Colour: | Aluminium nature |
| Length [m]: | 2,0 |
| Material: | Natural aluminium AIMgSi 0.5 F22 |
| Height [mm]: | 80/100 |
| Thickness [mm]: | 1,5 |
| Packaging unit: | Confederation |
| Weight [g]: | 0.8 kg/m |
Angle profile made of extruded aluminium with drainage slots across corners, height 80/100 mm, usable on both sides, supply and install in accordance with plan specifications.
Product: Zinco "KL 80/100" Gravel Retainer KL
Unit: m
Order Nr.: 7767

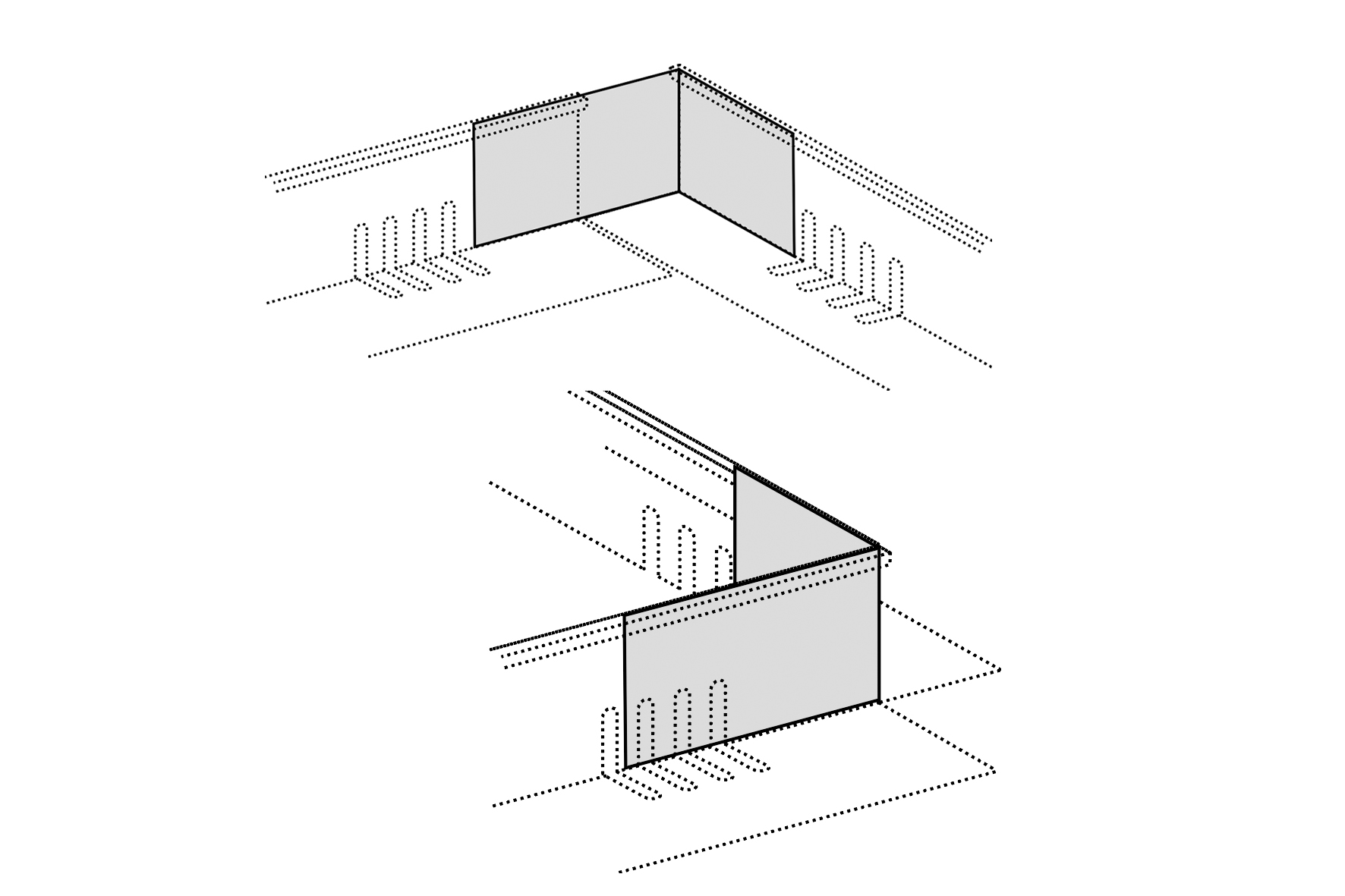

The Gravel strips are laid on the protective layer/drainage and weighted down with System Substrate / Substrate Soil / Growing Medium. It can be used on both sides to create two heights with one product. The Gravel strips must be connected at the joints with height-adjusted connectors. Corner situations are constructed using inside or outside corners with Corner joints.
1.1 Greening level
1.2 System Substrate
1.3 Filter Sheet SF
1.4 Floradrain® FD 25
1.5 Protection Mat / Moisture Retention SSM 45
1.6 Roof construction with root resistant waterproofing
2.1 Gravel Retainer KL (if required)
2.2 Gravel strips
Fixing the Gravel Retainer KL 60/80, KL 80/100, KL 100/120 and KL 140/160 using a retaining profile for Gravel Retainer KL:
2. Retaining profile (Order No. 7905)
3. Strip of sealing material, size approx. 10 cm x 25 cm
4. Load only in tension
When used on flat pitched roofs (up to max. 10°), the Gravel Retainer must be secured against slipping with the retaining profile (Order No. 7905).
