Zinco Fastening devices for SMP 38/33 Pack of 50 stainless steel screw and nut
Order Nr.:
9734
Product information "Zinco Fastening devices for SMP 38/33 Pack of 50 stainless steel screw and nut"

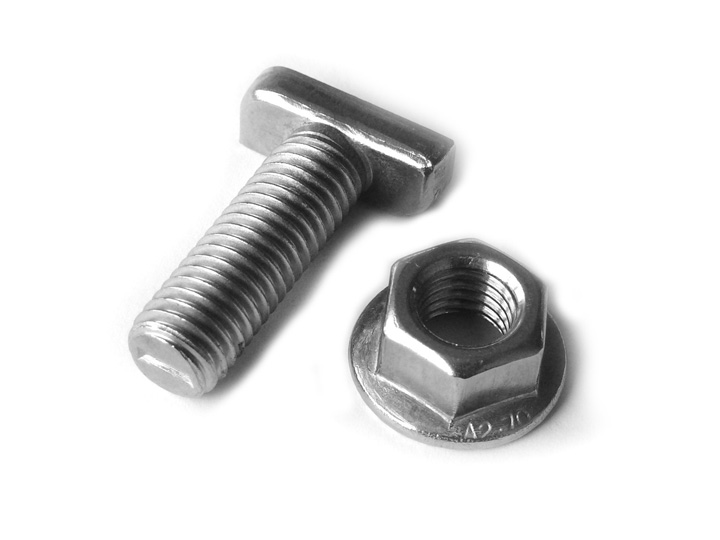

Hammerhead bolt M10 x 30 Stainless steel incl. flange nut / locking nut, suitable for SMP 38/33 and KP 40/40.
| Order Nr.: | 9734 |
|---|---|
| Material: | Stainless steel |
| Packaging unit: | Pack with 50 pieces |
| Weight [kg]: | 1,6 |
| Additional information: | Fastening material consisting of hammer-head bolt M10 x 25 and flange nut / locking nut |
This product is part of a system, the tender text can be found here:
/Zinco-Solar-Mounting-Profile-SMP-38-33-for-mounting-modules-collectors/9730
/Zinco-Solar-Mounting-Profile-SMP-38-33-for-mounting-modules-collectors/9730
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Hammer-head bolts and locking nuts M10 are required for fastening to the Solar Base Frame SGR.
Push the hammer-head bolt through the Solar Base Frame. Slide the SMP onto the bolt and fasten it with the locking nut (Tightening torque 20 Nm). A ratchet is helpful here. Repeat this procedure at all positions. Slide the rail connector into the narrow side of the SMP. Make sure that the hammer-head bolts are inserted correctly into the Mounting Profile (the head should be rotated by 90° so that the hammer-head bolt is firmly anchored in the SMP).
This product is accessories from
Zinco SMP 38/33 Solar Mounting Profile for Installing Modules / Collectors
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
