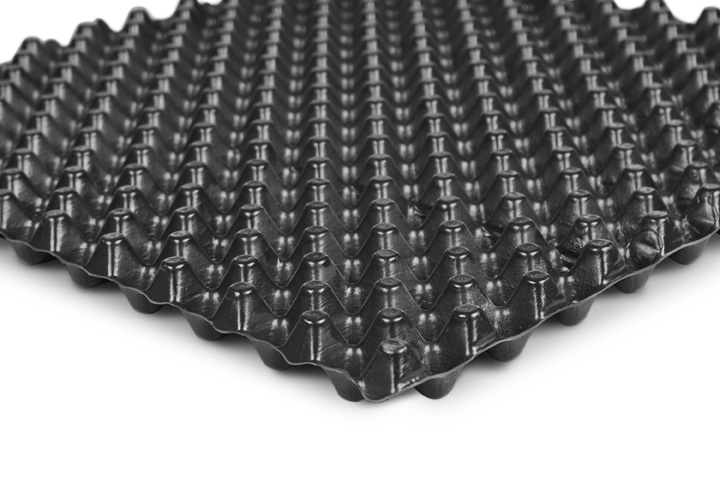

Zinco Floradrain FD 40-E, approx. 1 x 2 m, height approx. 40 mm
Drainage element made of thermoformed polyolefin (mainly PE), with water storage troughs and openings for diffusion as well as multi-directional channel system on the underside, max. compressive strength (without filling): approx. 170 kN/sqm, backfill volume approx. 17 l/sqm, Weight approx. 2 kg/sqm, as a component of a system structure with environmental product declaration EPD and CE marking via ETA no. 13/0668 "Kit for Green Roofs".
| Order Nr.: | 3041 |
|---|---|
| Colour: | dark grey / dark grey |
| Length [m]: | 2,0 |
| Material: | Polyolefin, mainly PE / Polyolefin, mainly PE |
| Width [m]: | 1,0 |
| Height [mm]: | 40,0 |
| Packaging unit: | boards / board |
| Weight [kg/m²]: | 1,9 |
| Pressure [kN/m²]: | 10% = 170 kN/m² (unfilled/without filling); 10% = 250 kN/m² (filled/with filling) |
| Diameter of diffusion opening [mm]: | 2,0 |
| Water storage capacity [l/m²]: | 5,0 |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 1,5 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 2,1 |
| Water runoff at sheet level at 3% gradient / incline [l/(s-m)]: | 2,6 |
| Backfill volume [l/m²]: | 17,0 |
| Compatible with bitumen: | Yes |
made of thermoformed polyolefin (mainly PE), height 40 mm, bitumen resistant, with water storage troughs, openings for diffusion and drainage channel system underside, compressive strength approx. 170 kN/m², filling volume approx. 17 l/m², Weight approx. 1.9 kg/m², water drainage capacity tested according to EN ISO 12958: with 1 % gradient - approx. 1.5 l/s*m. at 2 % gradient - approx. 2.1 l/s*m, with CE marking as a component of the "Kit for Green Roofs" in accordance with ETA No. 13/0668 and Environmental Product Declaration EPD-ZIC-20200082-CCA1-EN, deliver and install according to manufacturer's instructions.
Product: ZinCo Floradrain® "FD 40-E"
Unit: m²
Order Nr.: 3041

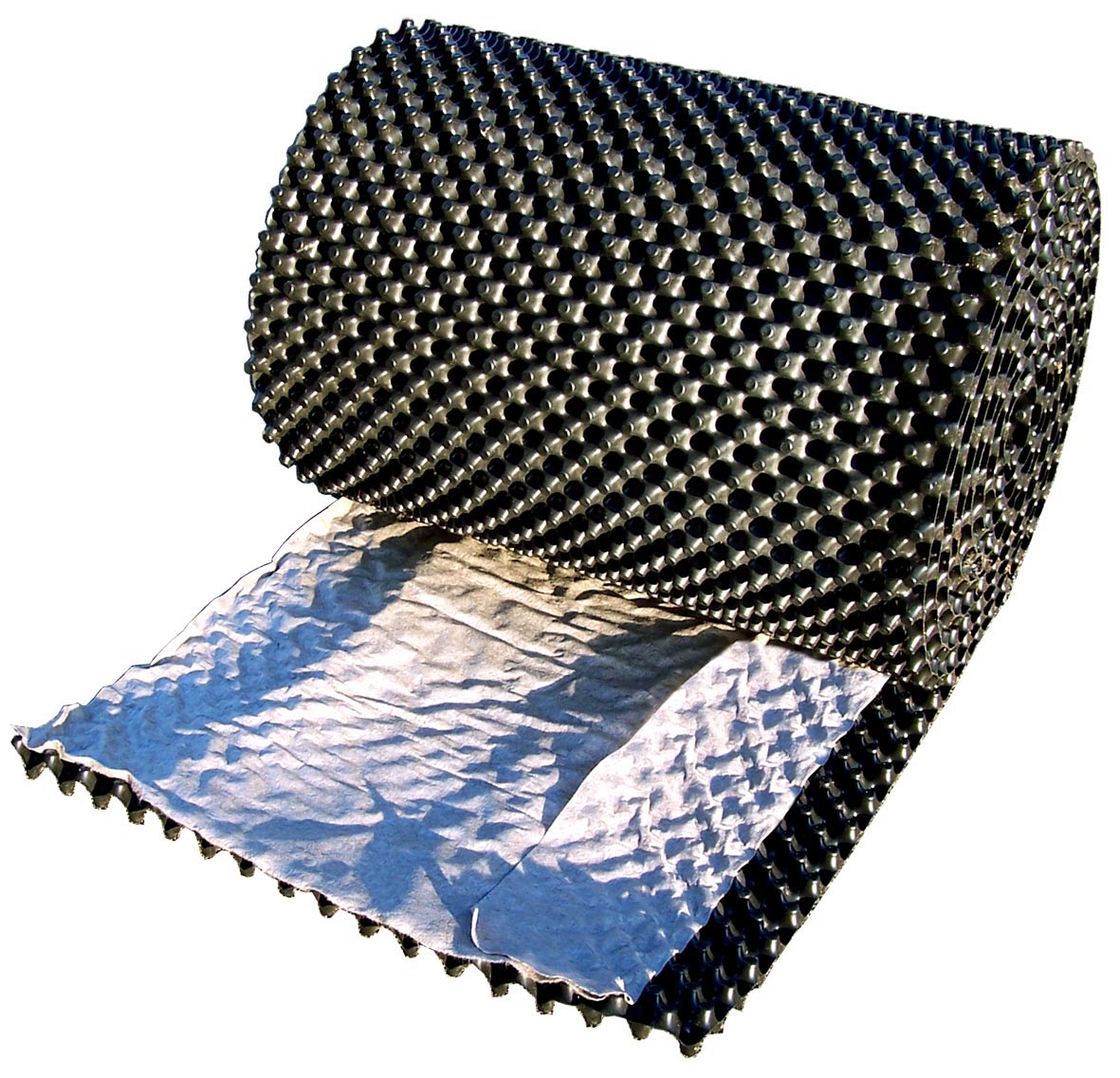

This product is also available in other dimensions / measurements / specifications

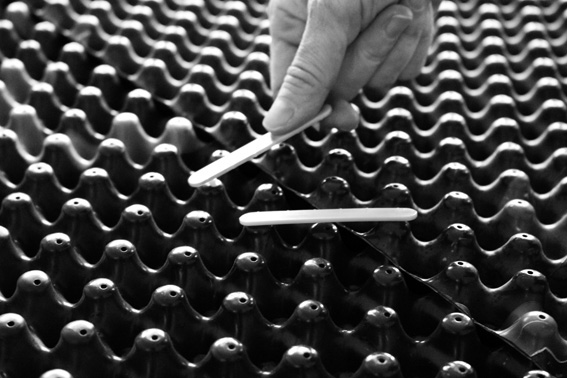

This product has accessories
