Zinco Profile Connector for SMP 38/33 and KP 40/40
Order Nr.:
9735
Product information "Zinco Profile Connector for SMP 38/33 and KP 40/40"
Profile Connector four-hole completely pre-assembled incl. 4 pcs. hammerhead bolts M8x20, A2; 4 pcs. flange nuts / locking nuts M8, DIN 6923, A2; flat material: 30x4mm, VA 1.4301 S235; requirement: 1 piece SMP 38/33 per joint; 2 pieces KP 40/40 per joint.
| Order Nr.: | 9735 |
|---|---|
| Material: | Stainless steel |
| Packaging unit: | Piece |
| Weight [g]: | 340,0 |
| Material thickness [mm]: | 4 |
| Additional information: | Four-hole Profile Connector made of 30 x 4 mm flat material, incl. 4 screws and 4 flange nuts / locking nuts |
This product is part of a system, the tender text can be found here:
/Zinco-Solar-Mounting-Profile-SMP-38-33-for-mounting-modules-collectors/9730
/Zinco-Solar-Mounting-Profile-SMP-38-33-for-mounting-modules-collectors/9730
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
- Maximum distance of Solar Base Frames 1,95 m at 75 kg/m² snow load.
- SMP overhang above SGR between 400-450 mm.
- Maximum overhang of solar module (above) SGR 350 mm.
The joints of the Solar Mounting Profiles can be linked using Profile Connectors. Slide the Profile Connector into the narrow side of the SMP. Make sure that the hammer-head bolts are inserted correctly into the SMP.
Slide the other profile onto the sticking out Connector. Tighten all bolts (20 Nm).
Note:
- SMP can be cut with a sliding compound mitre saw and a suitable saw blade.- Maximum distance of Solar Base Frames 1,95 m at 75 kg/m² snow load.
- SMP overhang above SGR between 400-450 mm.
- Maximum overhang of solar module (above) SGR 350 mm.
This product is accessories from

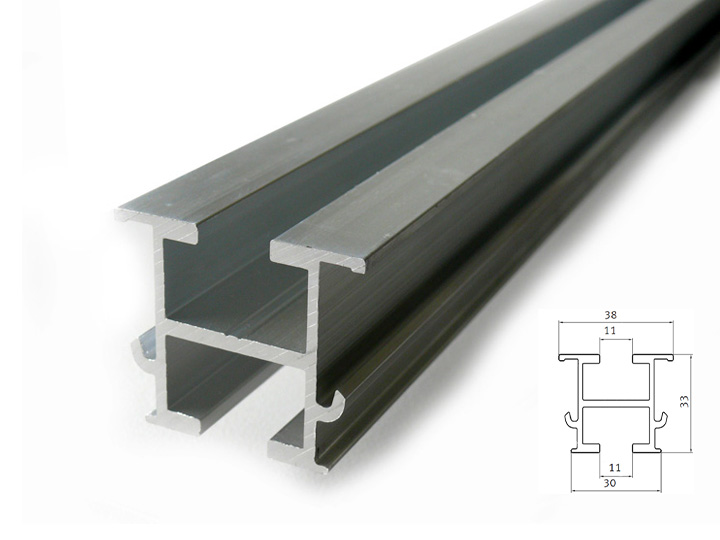

Zinco SMP 38/33 Solar Mounting Profile for Installing Modules / Collectors
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
SMP 38/33 solar mounting profile made of extruded natural aluminium AlMgSi 0.5, F25, extrusion-finished, with profile channels on the top and rubberised underside.
