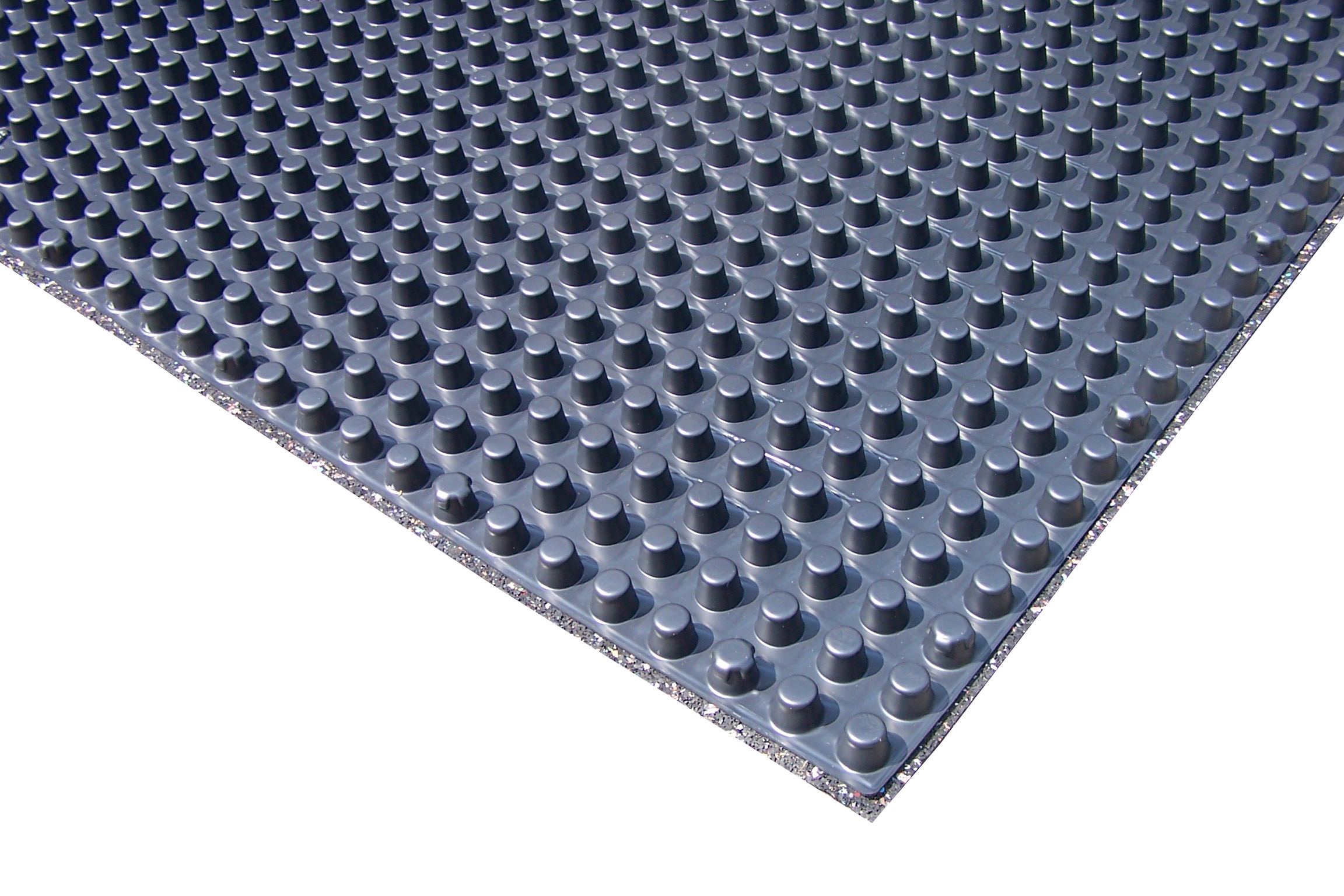

Zinco Protectodrain PD 250 Board approx. 1 x 2 m, H = approx. 25 mm
Stable drainage slab with integrated protective function for use on underground garage slabs under greenery and walkways and driveways.
sturdy, heavy-duty / extremely high loadable drainage panel made of high-profiled / moulded ABS plastic with rubberised underside attached, stud height 20 mm, Weight approx. 5 kg/sqm
| Order Nr.: | 3250 |
|---|---|
| Colour: | black |
| Length [m]: | 2,0 |
| Material: | Drainage element: ABS, Protective mat: Rubber |
| Spade resistant: | yes |
| Width [m]: | 1,0 |
| Height [mm]: | 25,0 |
| Thickness [mm]: | 3,0 |
| Packaging unit: | Board |
| Weight [kg/m²]: | 5,0 |
| Stud height [mm]: | 20 |
| Number of studs [m²]: | approx. 600 |
| Pressure [kN/m²]: | 10% = 460 |
| Water runoff at sheet level at roof slope 1 % [l/(s-m)]: | 1,0 |
| Water runoff at sheet level at 2% gradient / incline [l/(s-m)]: | 1,5 |
| Water runoff at sheet level at 3% gradient / incline [l/(s-m)]: | 1,9 |
| Compatible with bitumen: | yes |
| Additional information: | with rubberized underside attached rubber protection mat |
made of ABS plastic, profiled with rubberized underside attached rubber protection mat, total height approx. 25 mm, stud height approx. 20 mm, Weight approx. 5 kg/m², compressive strength at 10% compression approx. 460 kN/m², water drainage capacity tested according to EN ISO 12958: approx. 1.0 l/s*m at a gradient of 1 %, approx. 1.5 l/s*m at a gradient of 2 %, with environmental product declaration EPD-ZIC-20200082-CCA1-EN, deliver and install according to manufacturer's specifications.
Product: ZincoProtectodrain® "PD 250"
Unit: m²
Order Nr.: 3250
Installation:
Protectodrain® slabs must always be laid with the studs facing upwards. The slabs must be aligned so that one side of the board without a seam always rests on one side of the board with a seam.

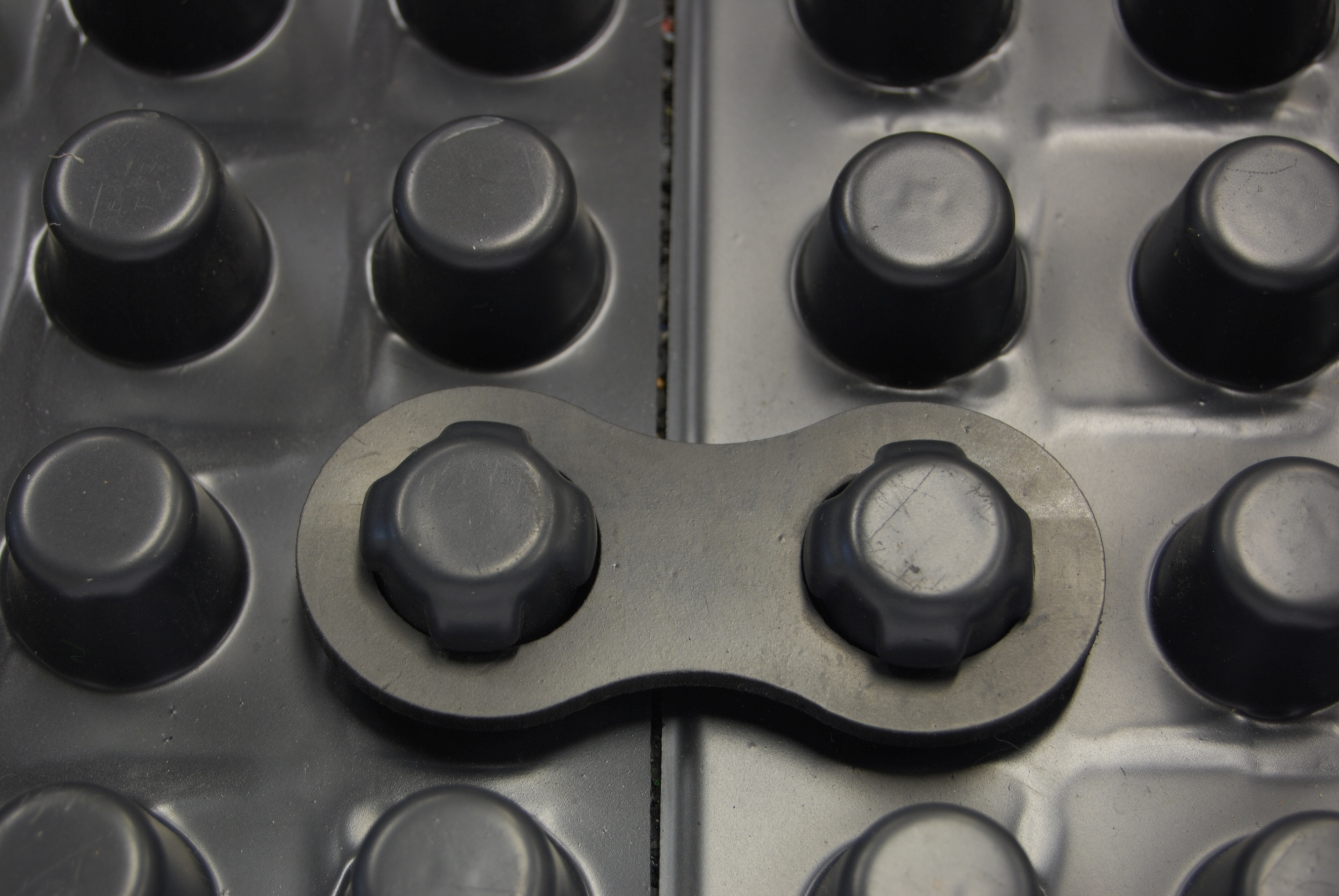

If the Protectodrain® boards are to be driven over, e.g. to apply the System Substrate / Substrate Soil / Growing Medium, it is advisable to secure them against slipping beforehand with two connectors per joint. Special connectors are available for this purpose, which can be attached to the "mushroom-shaped" edge studs of adjacent elements. We recommend one connector per running meter.
The drainage slabs must be covered immediately after installation (UV protection!).
A vibrating plate can be used to compact the gravel, but it must be taken into account that the work is being carried out on a roof surface. Select the vibrating plate accordingly so that the vibrations of the ceiling slab are not too great.
Foundations/back supports are constructed on the Filter Sheet.
Cutting:
The drainage slabs can be cut using a standard angle grinder, a cutter knife (with a hard blade) or a hot wire. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
Above roof outlets, the drainage boards must be cut to the size of the opening of the Inspection Chamber to be installed above.
