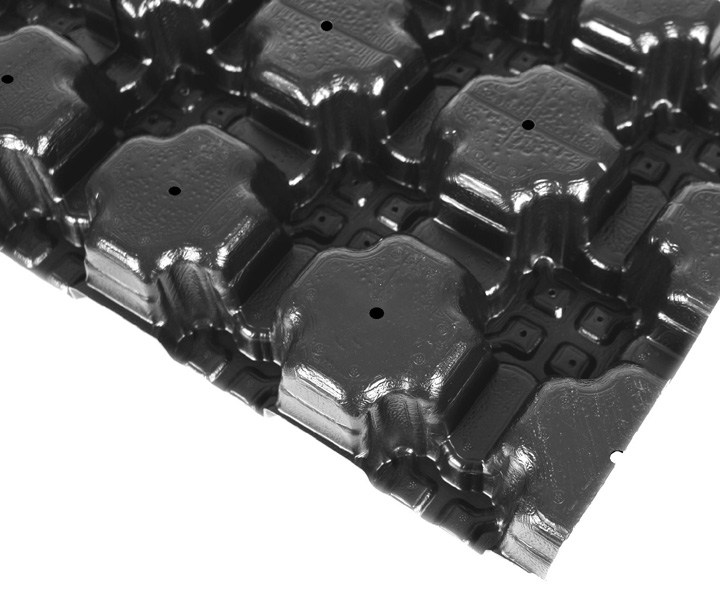

Zinco Retention Spacer RS 60, height 60 mm, 1.03 x 2.30 m (net 1 x 2.25 m)
High-performance and extremely easy to transport spacer element made of profiled plastic for use in Stormwater Management Roofs on roof surfaces without a gradient / incline.
Spacer element made of thermoformed polyolefin, with multi-directional channel system on underside and connecting studs on front and long sides, max retention volume 55 l/m², compressive strength to DIN EN ISO 25619-2: 40 kPa, Weight approximately / approx. 2.2 kg/m².
| Order Nr.: | 3408 |
|---|---|
| Colour: | black |
| Length [m]: | 2.30 net 2.25 |
| Material: | Polyolefin, mainly PE |
| Width [m]: | 1.03 net 1.00 |
| Height [mm]: | 60,0 |
| Packaging unit: | boards of 2.25 m²; pallet 225 m² |
| Weight [kg/m²]: | 2,2 |
| Compressive strength at 10% yield [kPa]: | 40 |
| UV-stabilized / protected against UV light: | Yes |
| Additional info: | Maximum accumulation volume approximately / approx. 55 l/m². |
made of thermoformed / moulded polyolefin, height 60 mm, with special connecting studs on the front and long sides, compressive strength according to DIN ISO 25619-2 approx. 40 kPa, Weight approx. 2.2 kg/m², suitable as a retention element for Green Roofs, water retention volume approx. 55 l/m², with Environmental Product Declaration EPD-ZIC-20200082-CCA1-EN,
delivery and installation according to manufacturer's instructions.
Product: Zinco Retention Spacer "RS 60"
Unit: m²
Order Nr.: 3408
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations. Installation should not be carried out if there is a risk of storms.
1
Installation:
Retention Spacer RS 60 elements are laid with the ventilation openings (one hole per stud) facing upwards. The RS 60 elements are laid in a bonded pattern and have connecting seams all around. The elements must be laid in such a way that the smaller seam lies in the larger one. This results in a determined laying direction, which must be maintained throughout the entire installation. Arrows are stamped on the edges to indicate the laying direction.
The RS 60 elements must be covered immediately after installation (UV protection!). To prevent the elements from blowing away, it is advisable to weigh them down with substrate bags, for example.
2
Cutting:
The elements can be cut with a standard angle grinder, an electric cutter or a hot wire. When cutting, make sure that the already laid layers are not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The RS 60 elements must be cut out over roof outlets in accordance with the outlet size.

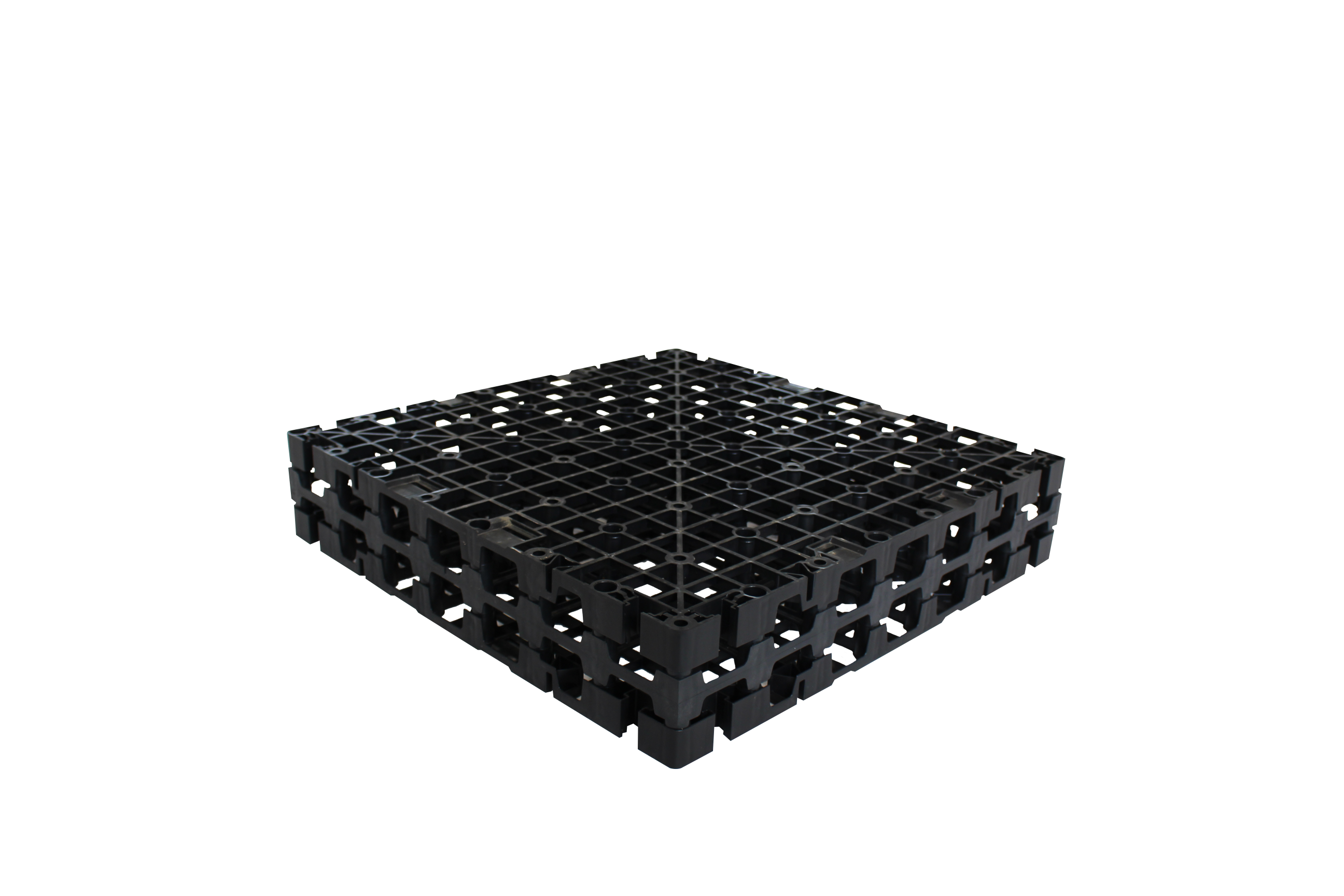

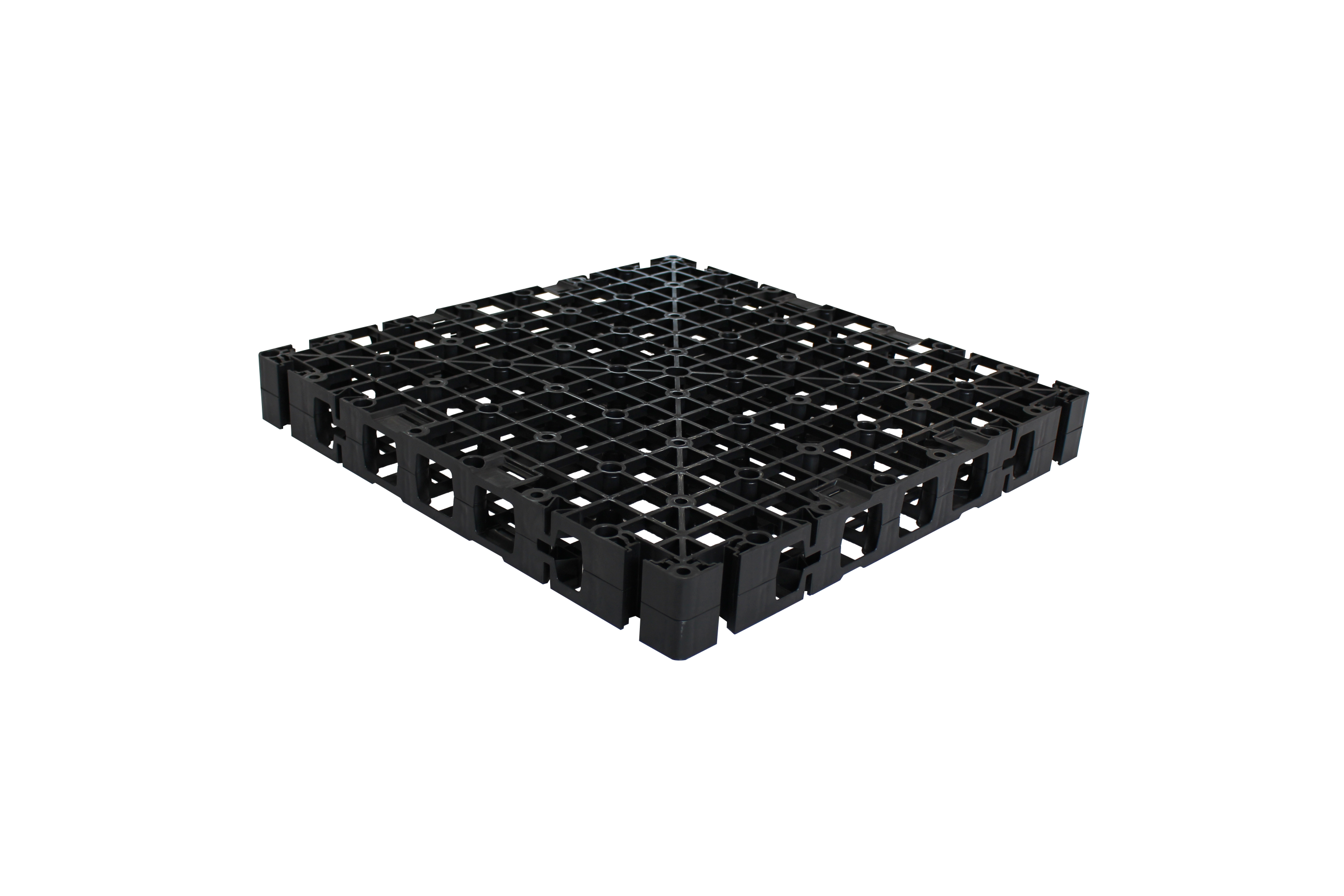

This product is also available in other dimensions / measurements / specifications
