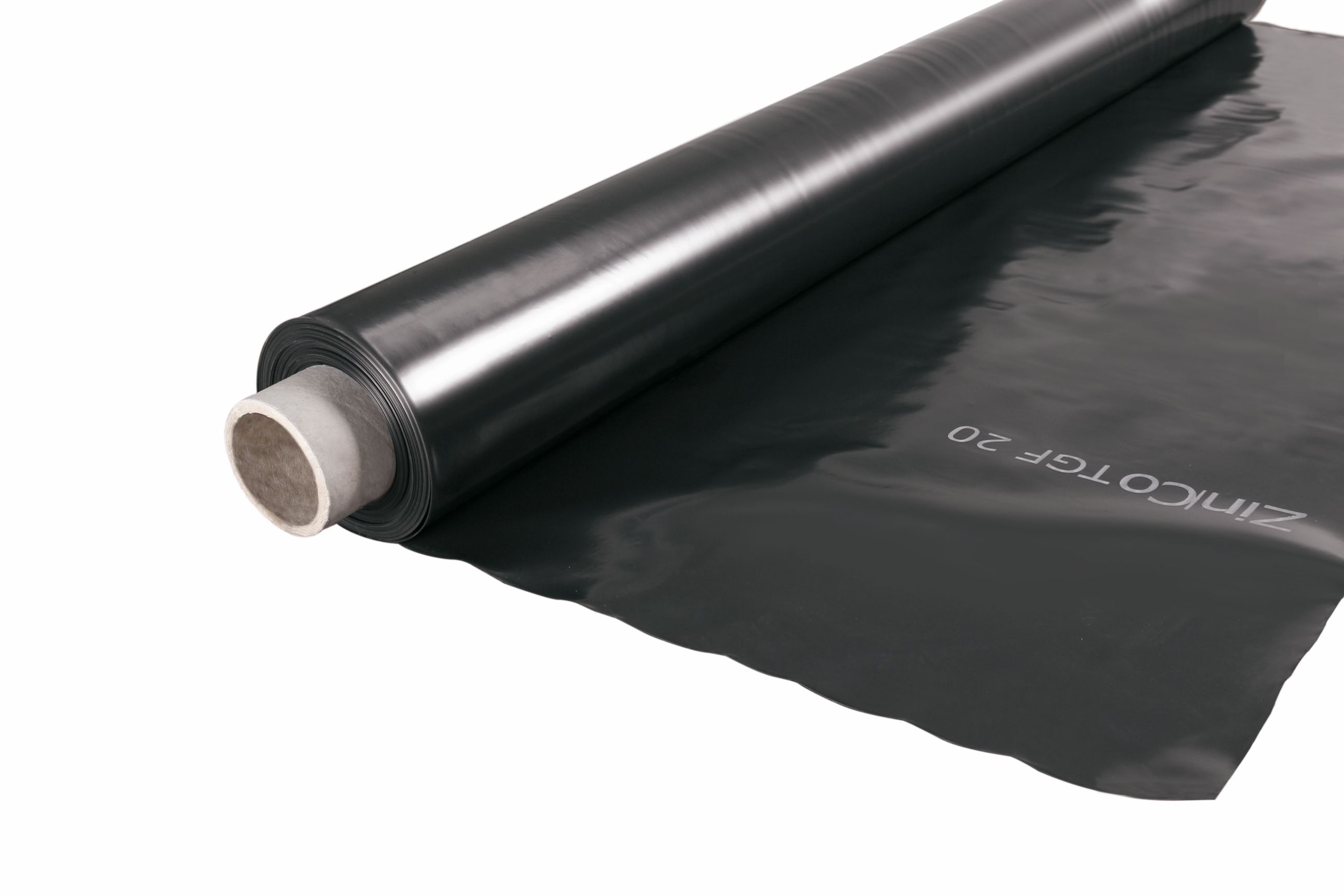

Zinco Separation and Slip sheet TGF 20, dimensions 3 x 33.5 m, 0.2 mm, black
Neutral, unplasticised / free of plasticizer film made of polyethylene (LDPE), can be used, for example, as a separating and sliding layer on roofs and underground garages.
Order Nr.:
1022
Product information "Zinco Separation and Slip sheet TGF 20, dimensions 3 x 33.5 m, 0.2 mm, black"
UV-stabilized / protected against UV light, compatible with bitumen, compatible with polystyrene, made of LDPE, Weight approx. 190 g/sqm, supplied folded on roll, 1.60 m wide, vapour barrier (sd >= 40 m), coefficient of sliding friction 0.30, as a component of a system with an Environmental Product Declaration (EPD).
| Order Nr.: | 1022 |
|---|---|
| Colour: | black |
| Length [m]: | 33,5 |
| Material: | LDPE |
| Width [m]: | 3,0 |
| Thickness [mm]: | 0,2 |
| Packaging unit: | Role |
| Weight [g/m²]: | 190,0 |
| WDD-equivalent air layer thickness [m]: | sd ≥ 40 |
| Sliding coefficient: | 0,29 |
| Compatible with bitumen: | yes |
| Non-rotting: | yes |
| UV-stabilized / protected against UV light: | yes |
This product is part of a system; you can find the request for proposals here:
https://produkte.zinco.de/Zinco-Trenn-u.-Gleitfolie-TGF-20-Masse-8-x-25-m-0-2-mm-schwarz/1020
https://produkte.zinco.de/Zinco-Trenn-u.-Gleitfolie-TGF-20-Masse-8-x-25-m-0-2-mm-schwarz/1020
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and guidelines, in particular the occupational health and safety regulations.
Installation should not be carried out if there is a risk of storms.
Installation:
Lay loose with approx. 100 mm overlapping.
After installation, the separating and sliding foil must be covered immediately (UV protection!) and secured against blowing away.
Cutting:
The film can be cut with a cutter knife (with a hard blade) or sturdy universal scissors. When cutting, make sure that the waterproofing of the roof is not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The film must be cut in a circle over roof outlets, approx. 10 mm larger than the roof outlet all round (cross cutting is not sufficient!).
Installation should not be carried out if there is a risk of storms.
Installation:
Lay loose with approx. 100 mm overlapping.
After installation, the separating and sliding foil must be covered immediately (UV protection!) and secured against blowing away.
Cutting:
The film can be cut with a cutter knife (with a hard blade) or sturdy universal scissors. When cutting, make sure that the waterproofing of the roof is not damaged under any circumstances! If damage does occur, it must be reported and repaired immediately.
The film must be cut in a circle over roof outlets, approx. 10 mm larger than the roof outlet all round (cross cutting is not sufficient!).
