Zinco Terrace grill TR-H 40 x 40-95 vertically adjustable from 95 to 125 mm
Sturdy gratings made of galvanized steel for installation over a terrace drain.
Outer dimensions approx. 40 x 40 cm, aperture dimensions approx. 34 x 34 cm, mesh width / mesh size approx. 33 x 11 mm, hot-dip galvanized, gravel trap frame galvanized sheet steel and plastic-coated, antique silver, with drainage slots, weight approx. 6.0 kg/each
| Order Nr.: | 4409 |
|---|---|
| Colour: | antique silver |
| Material: | Gravel trap frame: Galvanized steel, plastic-coated, Grille: Galvanized steel |
| Height [mm]: | 95,0 |
| Packaging unit: | Piece |
| Weight [kg]: | 6,0 |
| Outer dimension of frame [mm]: | 400 x 400 |
| Aperture dimension [mm]: | 340 x 340 |
| Additional info: | Slot width: approx. 3.5 mm; mesh width / mesh size: approx. 33 x 11 mm; adjustment range: approx. 95-125 mm |
Height 9.5 cm, outer dimensions of frame approx. 40 x 40 cm, aperture dimensions approx. 34 x 34 cm, vertically adjustable from approx. 95 to 125 mm without removing the grating, made of galvanized steel, load bearing capacity: Class K to DIN 19599, mesh width / mesh size approx. 33 x 11 mm, with slotted gravel trap frame made of plastic-coated sheet steel, supply and install on a solid surface above the outlet.
Product: Zinco Terrace grill "TR-H 40 x 40-95"
Unit: pcs
Order Nr.: 4409
These Installation Instructions describe the essential steps for using this product. Please also observe the relevant standards and directives, in particular the occupational health and safety regulations.
1
Installation:
Terrace grilles consist of a gravel trap frame and a metal grate / grid. They are suitable for installation in terrace decking and are placed directly over the roof outlet, on the protection and storage mat. All layers in the diameter of the outlet are cut out beforehand. A cross cut is not sufficient.
The drainage element is cut so that it is directly adjacent to the Terrace grill.

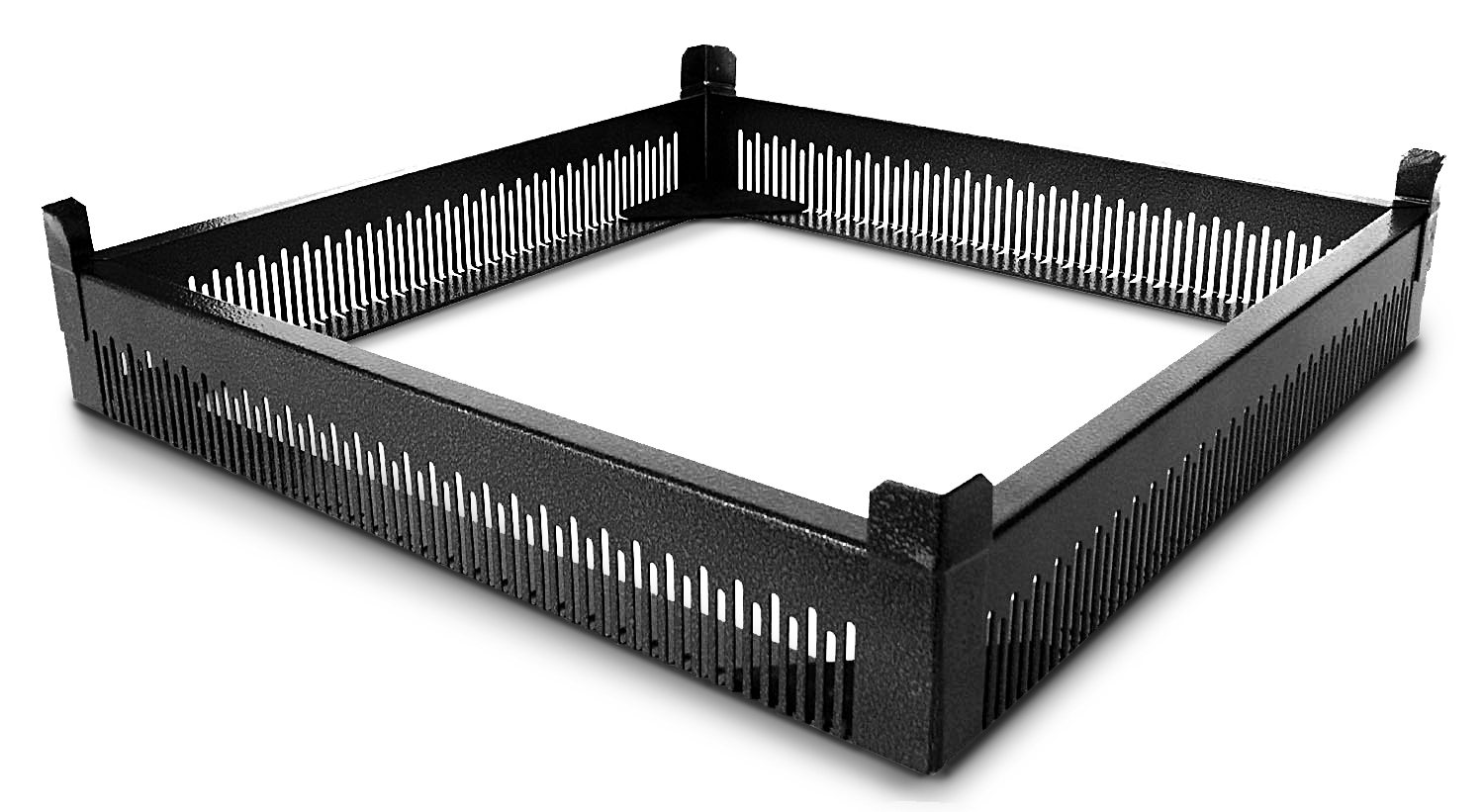

Extension pieces can be used to adjust to the desired height. These are placed under the Terrace grill on the protective mat. A maximum of three extension pieces are possible. The Terrace grill is placed on the last extension piece. The height can be fine-adjusted from above using a screwdriver without removing the grating.
2
Cutting:
Terrace grilles cannot be cut to size.
